14
U.L. Model No.: 52-ANT
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until blades are in place. Noise and fan damage
could result.
WARNING
!

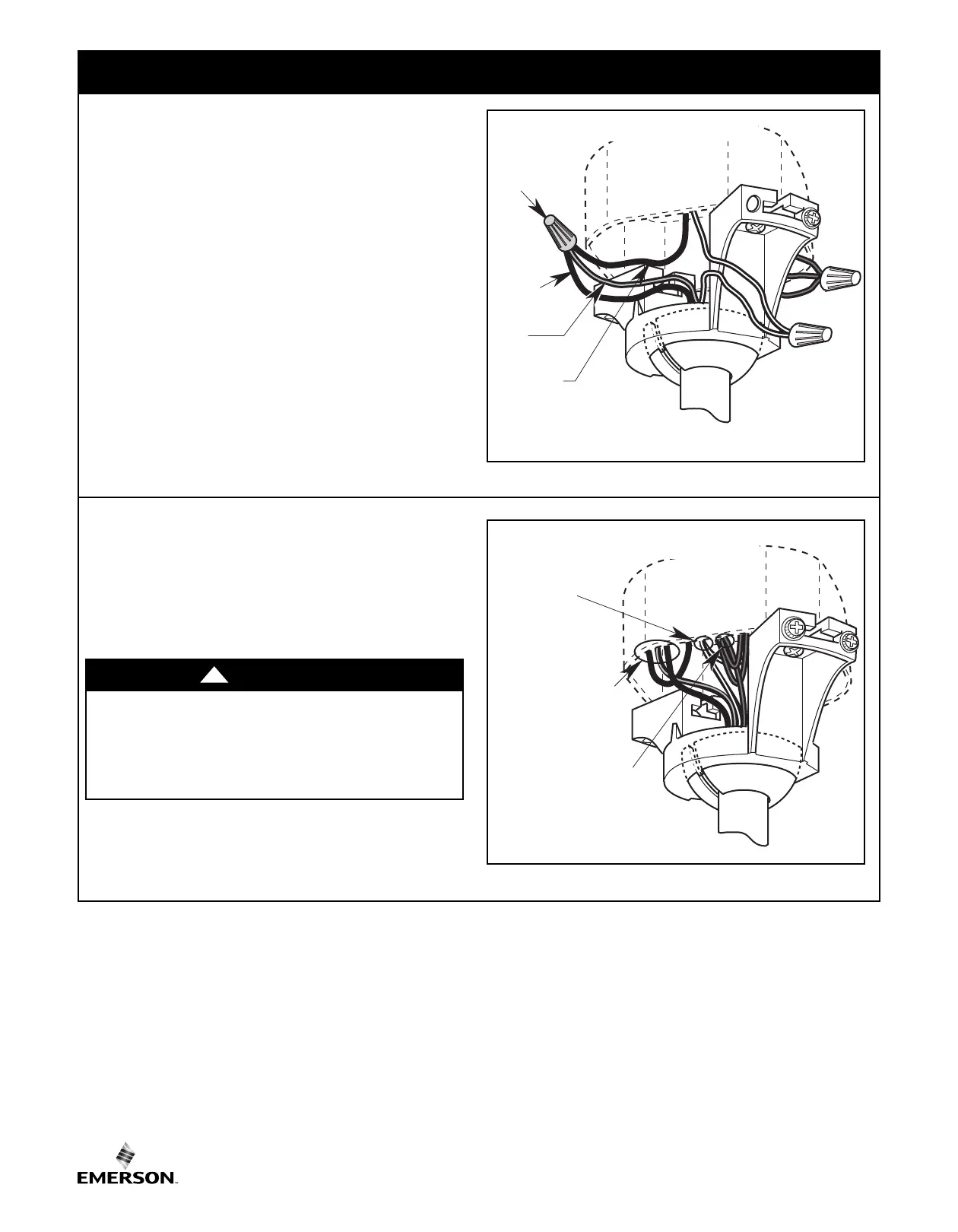

9. How to Wire Your Ceiling Fan (Continued)
LISTED WIRE
C
ONNECTOR
FAN MOTOR
BLACK FAN WIRE
BLUE
FAN WIRE
SUPPLY
BLACK (HOT)
HANGER BALL/DOWNROD ASSEMBLY SHOWN
Figure 18
9.3
Securely connect the Fan Motor Black Wire and Blue
Wire to the Supply Black (Hot) Wire using Wire
Connector Supplied (Figure 18).
TWO BLACK WIRES
AND ONE BLUE WIRE
WHITE WIRES
GREEN WIRES
HANGER BALL/DOWNROD ASSEMBLY SHOWN
Figure 19
9.4
After Connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet
Box and Black Wires on the other side of the Outlet Box
(Figure 19).
To Next Page
