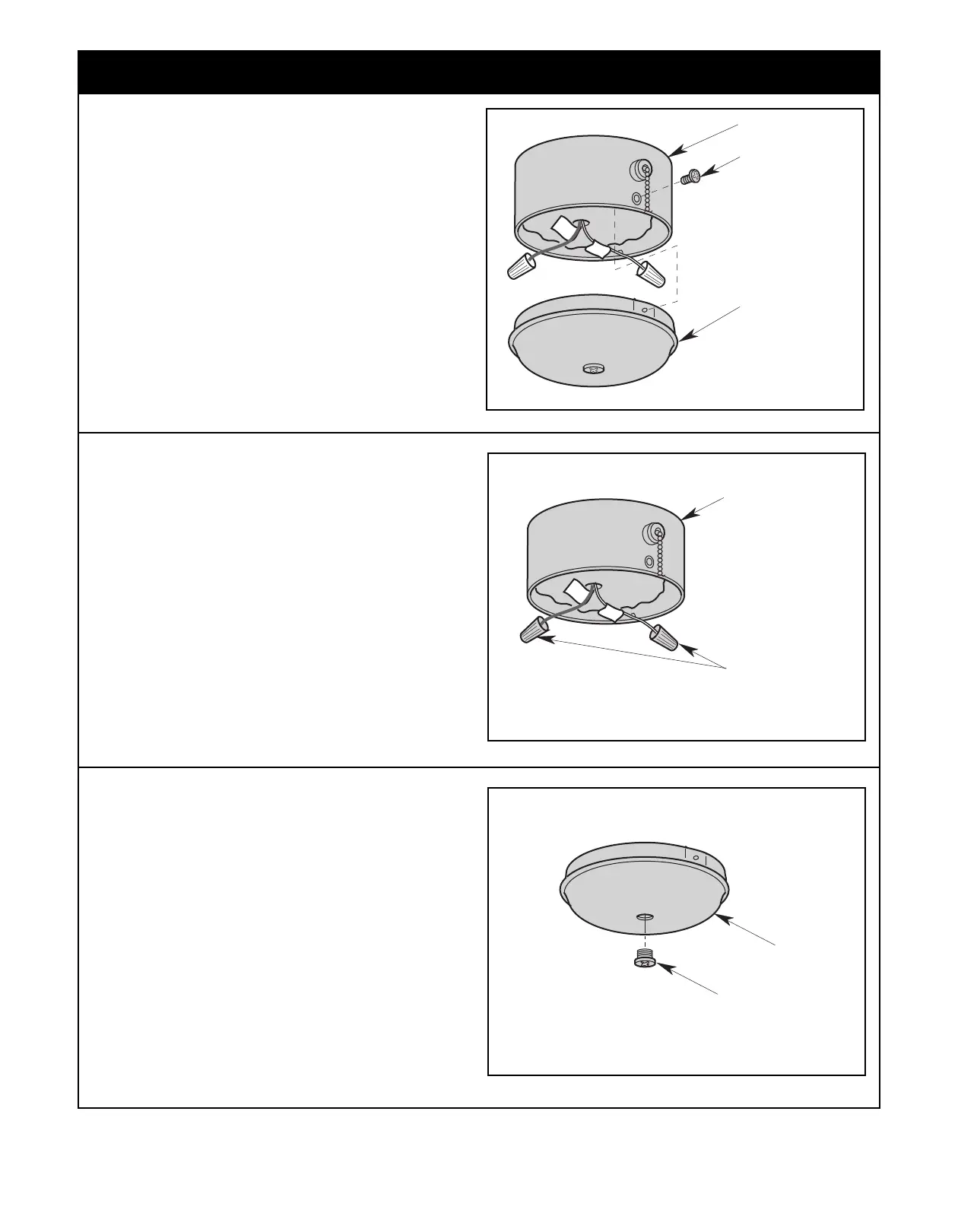

12. Installing the Light Fitter and Glass
SWITCH
HOUSING COVER
SWITCH HOUSING
SCREW (3)
Figure 24
12.1
R
emove and Retain the Three Screws securing the
Switch Housing Cover to the Switch Housing
(Figure 24).
SWITCH HOUSING
WIRE
CONNECTORS (2)
Figure 25
12.2
Remove and Retain the Two Wire Connectors in the
Switch Housing (Figure 25).
SWITCH
HOUSING
COVER
SWITCH HOUSING
COVER PLUG SCREW
Figure 26
12.3
Remove Plug Screw (Figure 26).
