Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 64
3. Verify that the positive (red) is down and the negative (black) is
up.
4. Wrap the harness connector around to match the following
figure. Do not let the harness connector go above the tab.

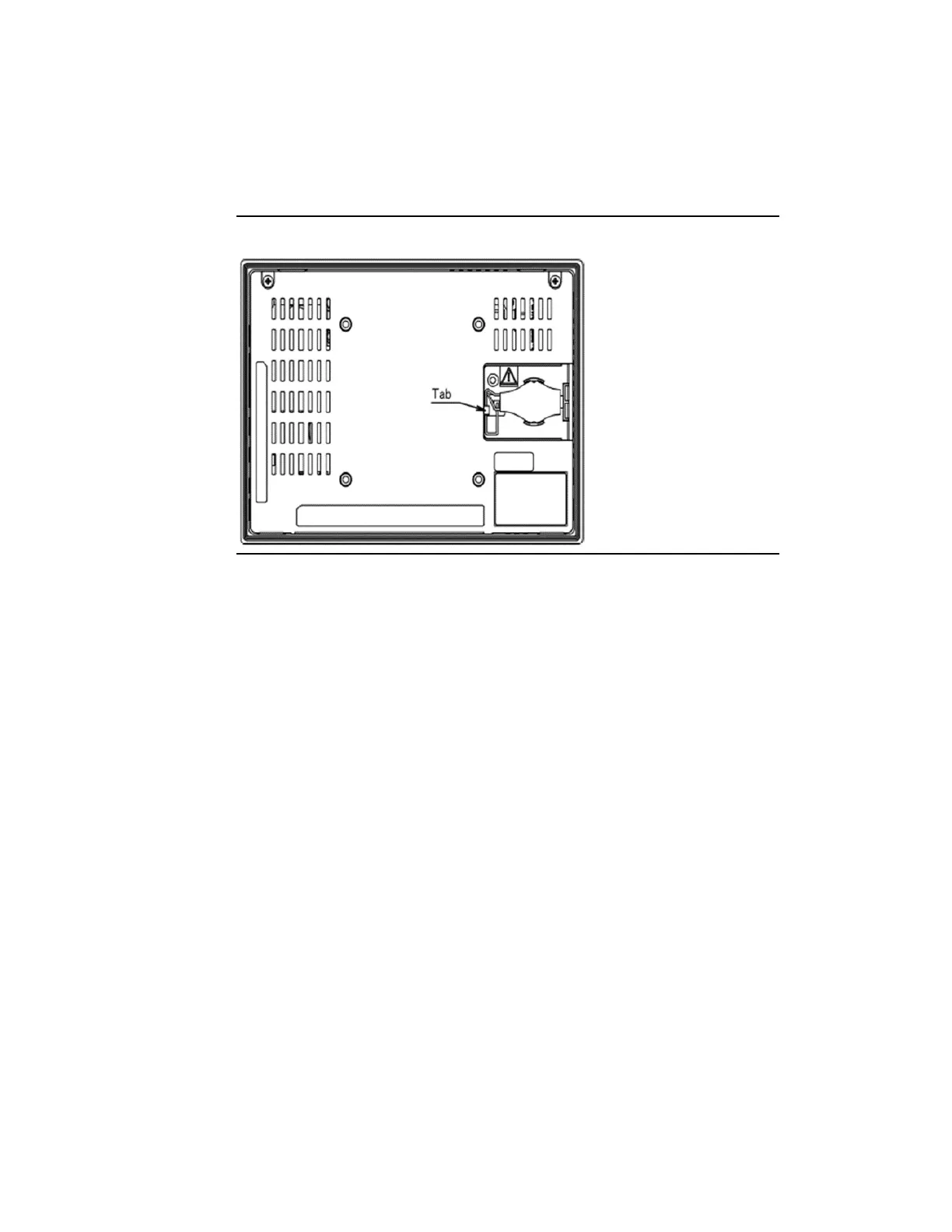

Figure 66: Harness Connector Orientation IC755CxS06RDx
5. Slide the battery cover into place, taking care not to pinch the
harness connector.
