Emerson QuickPanel+ IC755C S12CD Series User Manual

Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 55
5.3 Panel Mounting
To mount the QuickPanel
+
in an enclosure, you will need the following
equipment:
• One #2 Phillips head screwdriver
• Mounting brackets (supplied)
The mounting holes for IC755CxS06RDx, IC755CxW07CDx, and
IC755CxS10CDx are located on the top and bottom edges of the unit.

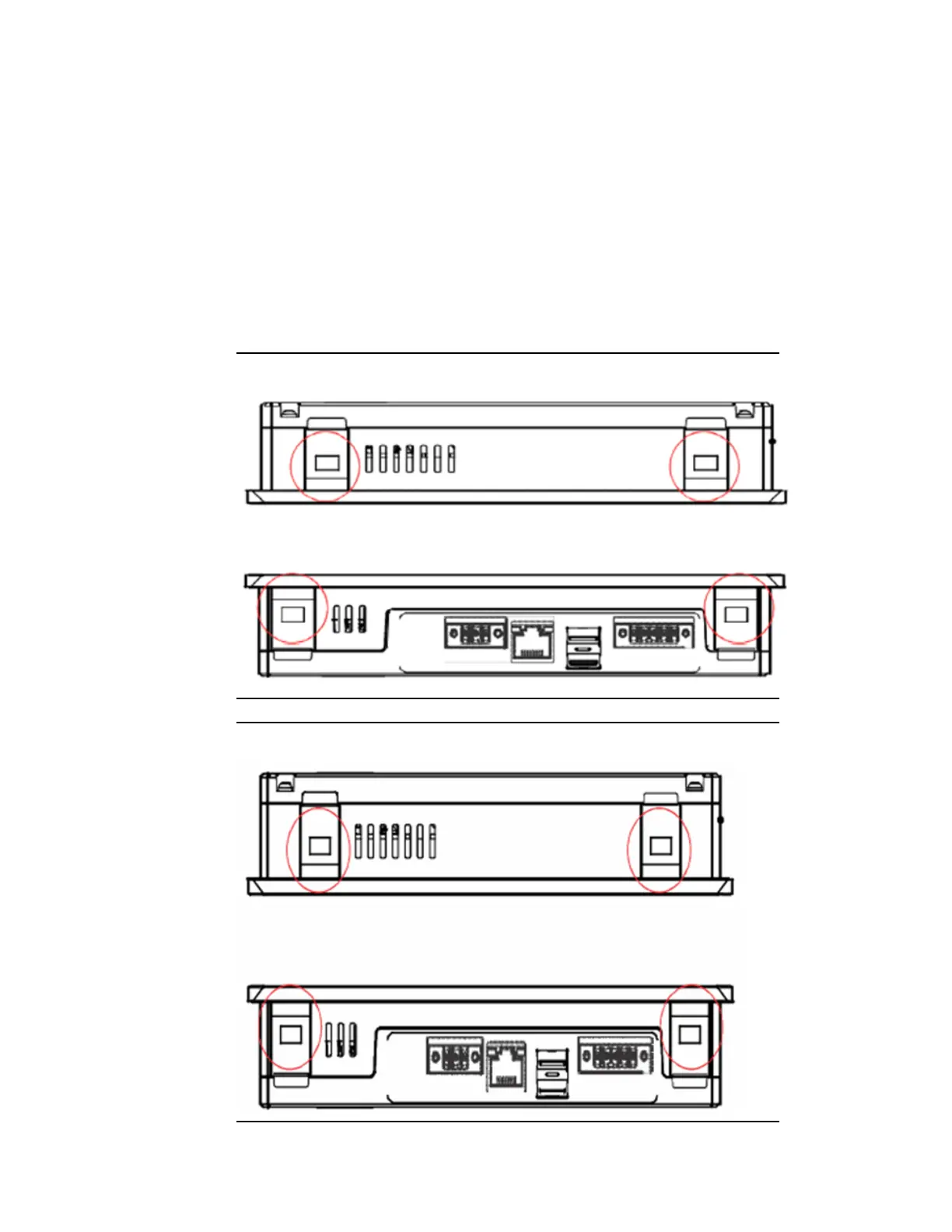

Figure 50: Mounting Holes (top & bottom edges) IC755CxS06RDx
Figure 51: Mounting Holes (top & bottom edges) IC755CxW07CDx
