2 Equipment overview
2.1 Exterior
NOTICE
Removing one or more of the tamper-proof screws voids the warranty.
NOTICE
Lower cable entry: This is the most convenient entry point for connecting cables to the
Ethernet port, communications ports, and external device terminals. If not using this entry
for cables, use a certified conduit plug. See Table 2-1.
Table 2-1: Certified conduit plugs
Certification type Additionally supplied certified parts
Canadian Standards Association
(CSA)
M32 to ¾-in. adapter and a ¾-in. sealing plug
ATEX/IECEx M32 plug

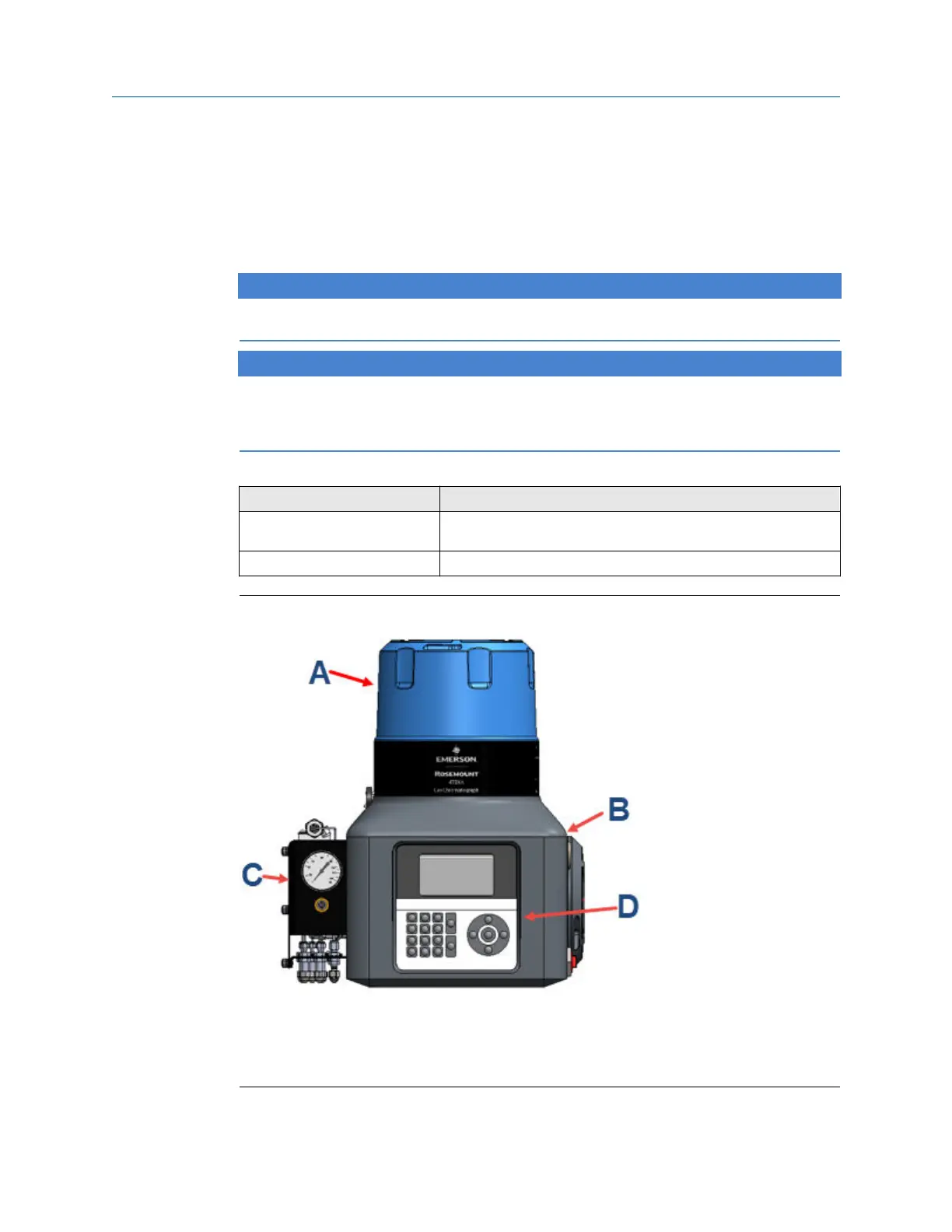

Figure 2-1: Front view
A. Upper housing (dome)
B. Lower housing
C. Flow panel
D. Local operator interface (LOI)
Manual Equipment overview
MS-00809-0100-0470 June2023
Rosemount 470XA 13
