Quick Installation Guide
00825-0100-4004, Rev DB
December 2011
Rosemount 8800D
5
External Pressure/Temperature Transmitters
When using pressure and temperature transmitters in conjunction with the 8800D for
compensated mass flows, install the transmitters downstream of the Rosemount 8800D
flowmeter as shown in Figure 5.

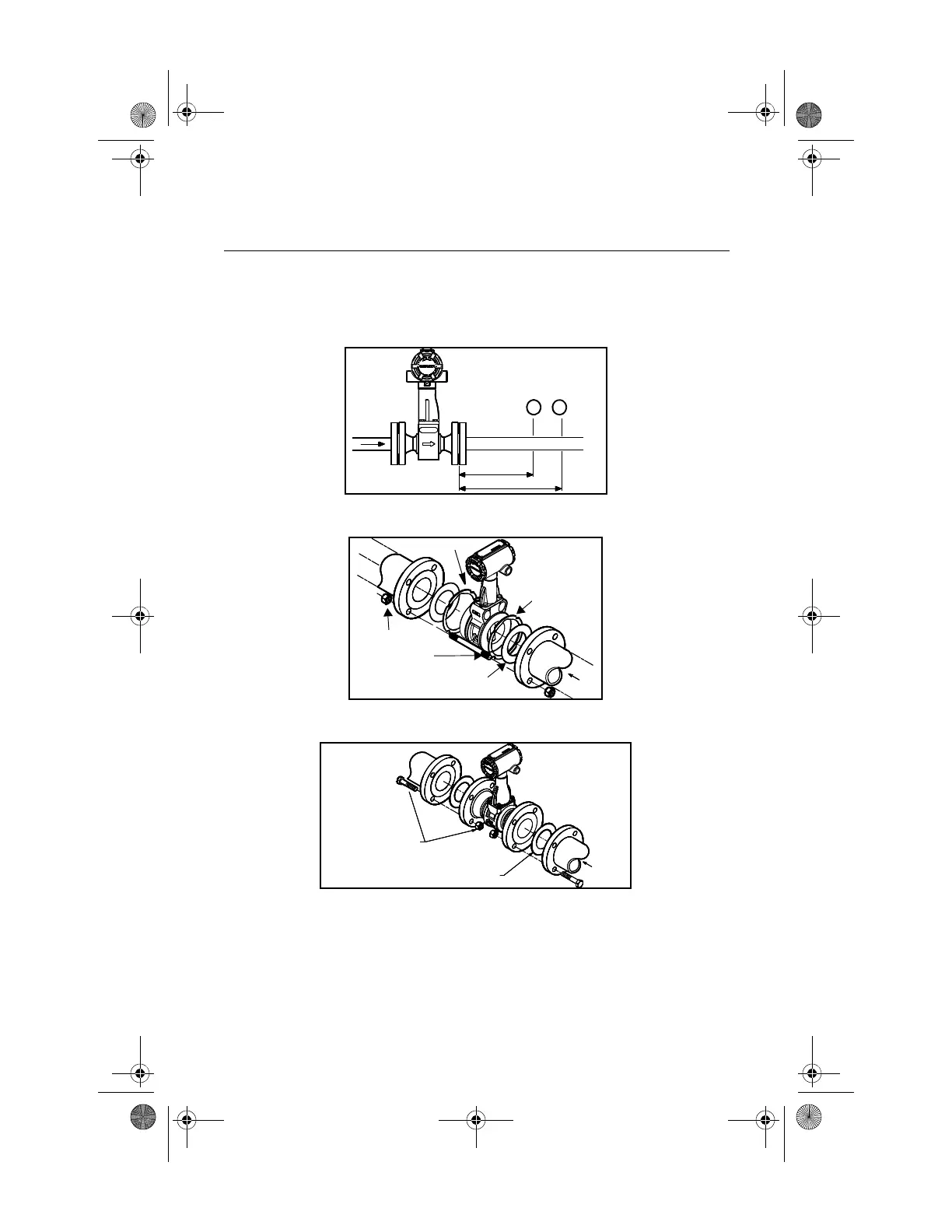

Figure 5. Upstream/Downstream Piping
Wafer Style Installation
Figure 6. Wafer Style Installation
Flanged-Style Installation
Figure 7. Flanged-Style Flowmeter Installation
P T
4 Downstream
6 Downstream
Flow
Gaskets
(Supplied by
Customer)
Installation
Studs and
Nuts (Supplied
by Customer)
Alignment
Ring
Alignment Ring
Gaskets
(Supplied by Customer)
Installation Bolts
and Nuts (Supplied
by Customer)
Flow
4004_RevDB.fm Page 5 Wednesday, November 23, 2011 3:06 PM
