Quick Installation Guide
00825-0100-4004, Rev DB
December 2011
Rosemount 8800D
4

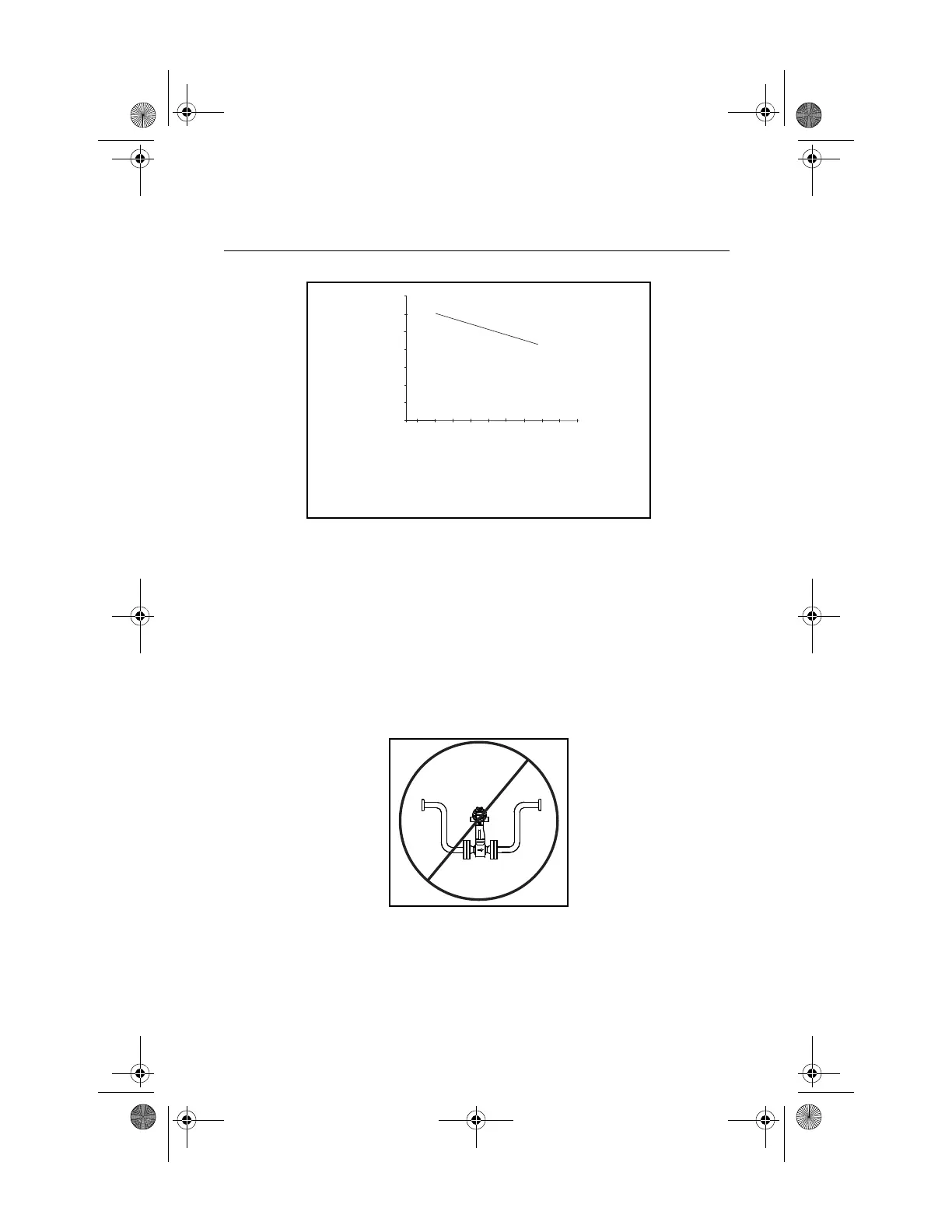

Figure 3. Rosemount 8800D Ambient/Process Temperature Limits
The following orientations are recommended for applications with high process temperatures.
• Install with electronics head beside or below process pipe.
• Insulation around pipe may be necessary to maintain ambient temperature below 185 °F
(85 °C).
NOTE
Insulate pipe and meter body only. Do not insulate support tube bracket so heat can be
dissipated.
Steam Installations
Avoid installation shown Figure 4. Such conditions may cause a water-hammer condition at
start-up due to trapped condensation.
Figure 4. Improper Installation
Upstream/Downstream Requirements
The Rosemount 8800D Flowmeter may be installed with a minimum of ten straight pipe
diameters (D) upstream and five straight pipe diameters (D) downstream by following the
K-factor corrections as described in the 8800 Installation Effects Technical Data Sheet
(00816-0100-3250). No K-factor correction is required if 35 straight pipe diameters upstream
(35D) and 10 straight pipe diameters downstream (10D) are available.
200 (93)
180 (82)
160 (71)
140 (60)
120 (49)
100 (38)
80 (27)
60 (16)
0
200 (93)
300 (149)
400 (204)
500 (260)
600 (316)
700 (371)
800 (427)
900 (482)
1000 (538)
100 (38)
Ambient Temperature °F (°C)
Process Temperature °F (°C)
185 °F Housing
Temperature
Limit
Meter and pipe insulated with 3 inches of ceramic fiber insulation.
Horizontal Pipe and Vertical meter position.
4004_RevDB.fm Page 4 Wednesday, November 23, 2011 3:06 PM
