3.4 Installing mounting socket onto the pipe with
strapping for pipes > NPS 2
This section describes how to install the mounting socket for the
Rosemount SAM42 Acoustic Particle Monitor onto pipe work. Follow
the sequence detailed below for a successful installation:
Note
The same mounting socket is used on all pipe diameters from NPS 2
to NPS 48.
Procedure

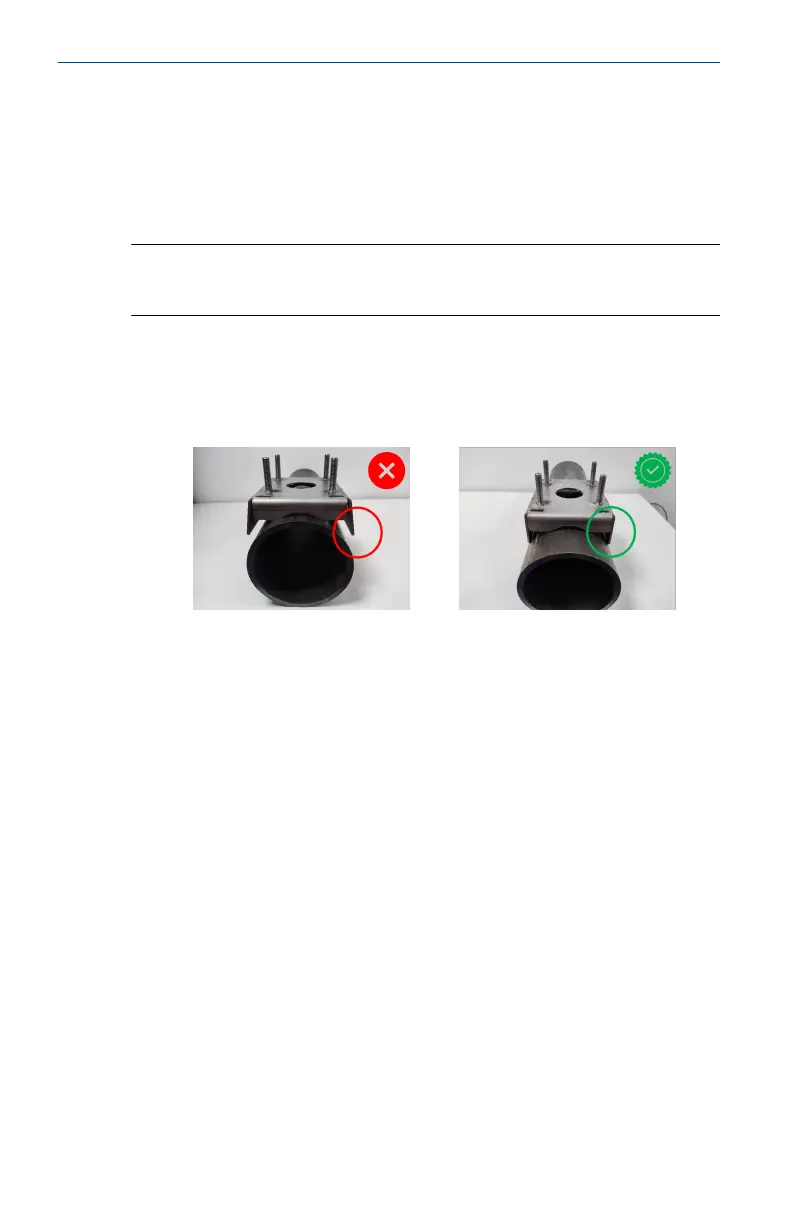

1. Place the mounting socket on the pipe. The wings of the
mount should be in contact with the pipe. If the wings are not
in contact with the pipe, then manually adjust as necessary.
