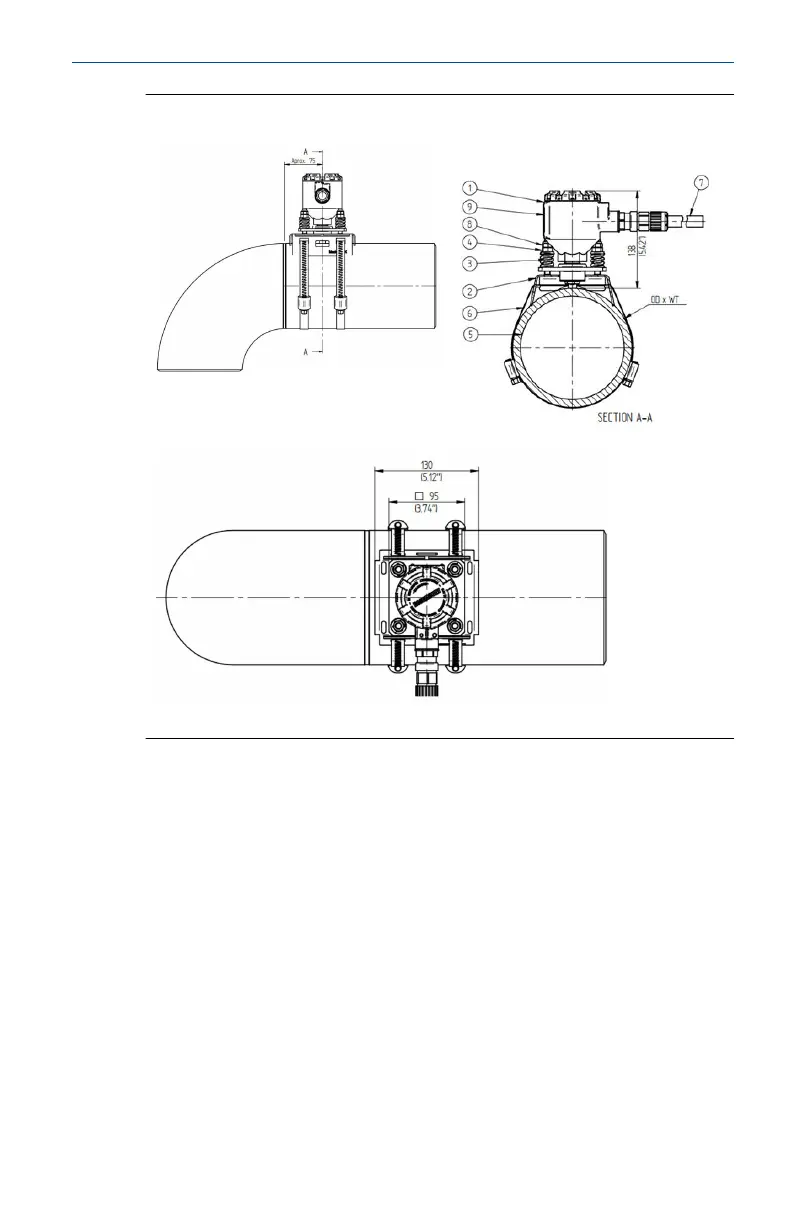

Figure 8-1: Installation Control Drawing
1. Rosemount SAM42 Transmitter
2. Mounting socket
3. Loading springs
4. Compression nut
5. Pipeline
6. Mounting strap
7. Field cable
8. Locking nut
9. Product label
Dimensions are in millimeters (inches).
May2024 Quick Start Guide
Quick Start Guide 71
