Document Part # 026-4144 Rev 8 Page 8 of 10
©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emerson.com for the latest technical documentation and updates.
UL Ratings
Housing Dimensions and Mounting
The Site Supervisor can be mounted to standard 35mm DIN Rail. Snap the orange tabs on the back of the unit to the down position to fasten. If not
using the DIN Rail mounting option, fasten to the mounting surface using the openings in the mounting tabs. Pull the four orange mounting tabs out
until they lock, which will expose the mounting holes.
Technical Specifications
Type Ratings Terminal
Relay 1 (N.O. & N.C.) 5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles;
J5-2, J5-3, J5-4 (Base Board)
Relay 2 (N.O. & N.C.) 5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles;
J5-1, J5-2, J6-6 (Base Board)
Relay 3 (N.O. & N.C.) 5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles;
J6-1, J6-4, J6-5 (Base Board)
Relay 4 (N.O. & N.C.) 5A, 125/240 VAC, General Purpose, 100K cycles;
4FLA/4LRA, 250VAC, Motor Load, 100K cycles;
J6-1, J6-2, J6-3 (Base Board)
Table 1 - UL Ratings
Operating Temperature -40°F to 149°F (-40°C to 65°C)
Relative Humidity 20-85% RH non-condensing
Enclosure Rating UL 94 V-0
Dimensions 103.7 x 34.7mm
24 VAC 20VA required
24VAC/20VA
1 Can Bus Expansion Module Connections
4 RS485 ports MODBUS Com Ports 1, 2, 3, and 4
3 Ethernet ports Ports 1, 1, 0
2 USB ports 1, 2
MicroSD 1
Analog Inputs 8
Digital Inputs 4
Relay Outputs 4
Table 2 - Technical Specifications

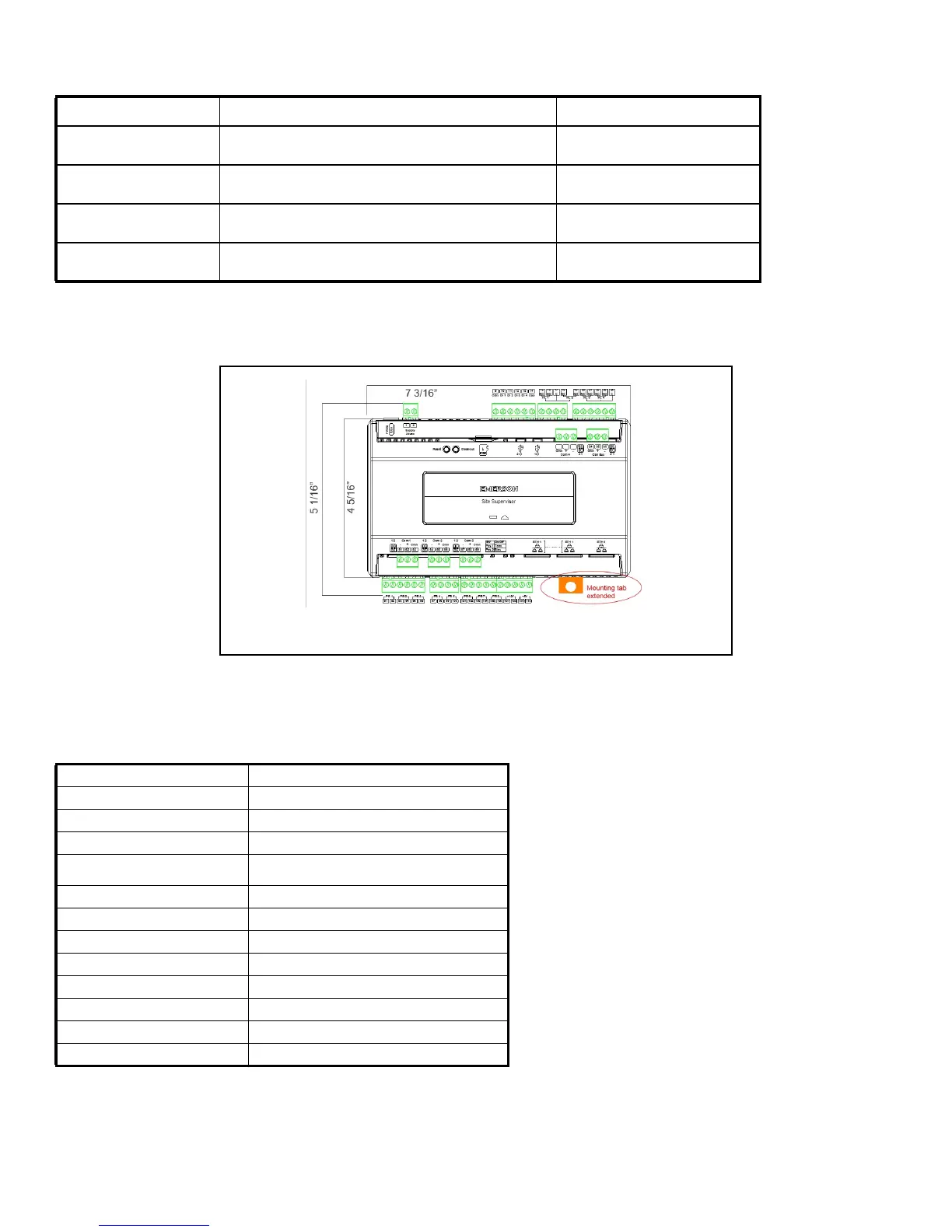

Figure 15 - Mounting Dimensions
