ER5000 —
121
The ERTune™ Program: Basic Features
3. In the ER Model drop-down list, select the ER model number
that matches the model number of your controller.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
All ER5000 model numbers have a “-1” extension. This
extension has been truncated from the model numbers displayed
in the list.

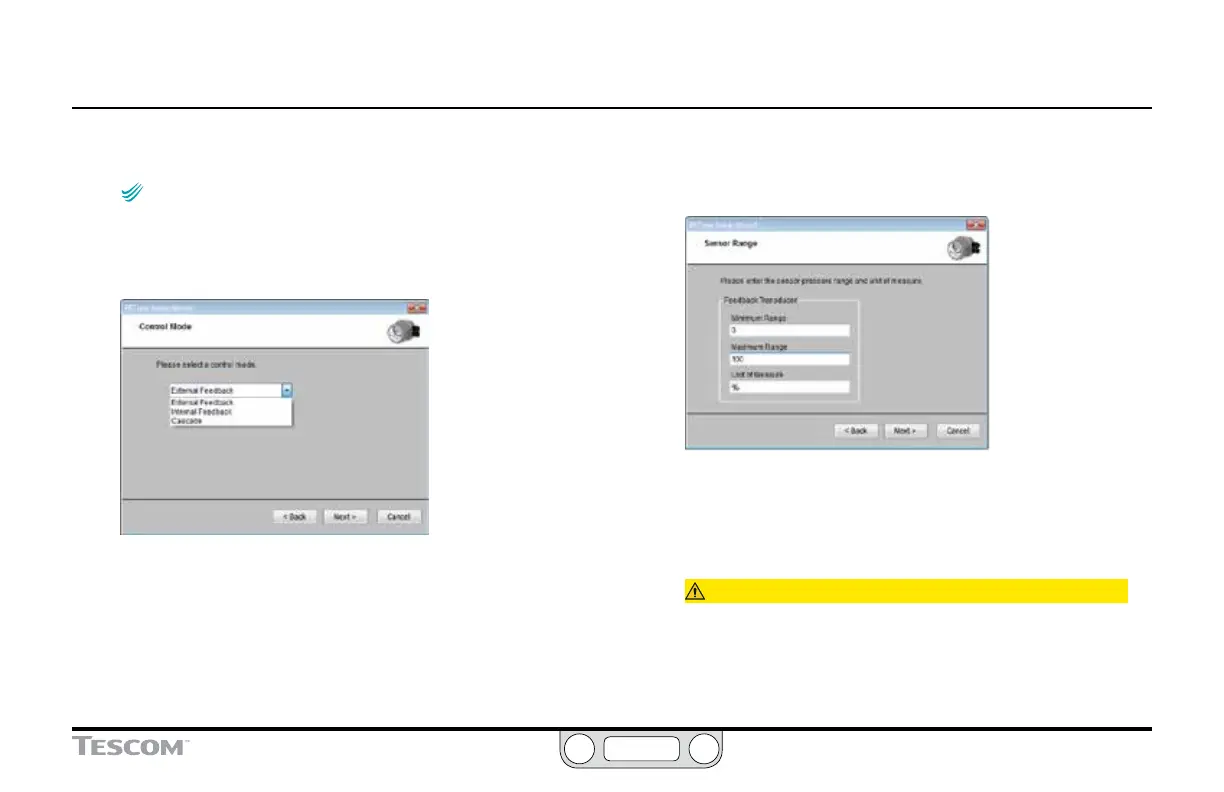

4. Click the Next > button. The Control Mode window opens.
5. The Setup Wizard reads and displays the current Control
Mode for your controller. External Feedback is default for new
controllers. The other options are Internal Feedback and Cascade.
6. Select the Control Mode that is appropriate for your
application and click the Next > button. The Sensor Range
window opens.
The elds in this window set the default range and the unit of
measurement for the Plot Screen in the ERTune™ program.
The default is percentage; you can change this to psig or bar
or some other unit of measurement.
CAUTION
If you change the unit of measurement from percentage,
be sure your Min and Max values accurately represent the
specifications for your feedback source.
