The ERTune™ Program: Basic Features
7. The label you see for the eld set in this window depends on
the Control Mode you selected in Step 6.
• If you selected External Feedback control mode, the
range is labeled Feedback Transducer. Enter the range
listed in the specications for the external transducer
you will be using for your application.
• If you selected Internal Feedback control mode, the
range is labeled Internal Feedback. Enter the 0–100 psig /
0–6.9 bar range for the ER5000’s internal sensor.
• If you selected Cascade control mode, the range is
labeled Feedback Transducer. Enter the range listed in
the specications for the external transducer you will be
using for your application.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
As a general rule, the Internal Feedback range
should be left at default for Cascade Control Mode, so only
the External Feedback range is shown in this window.

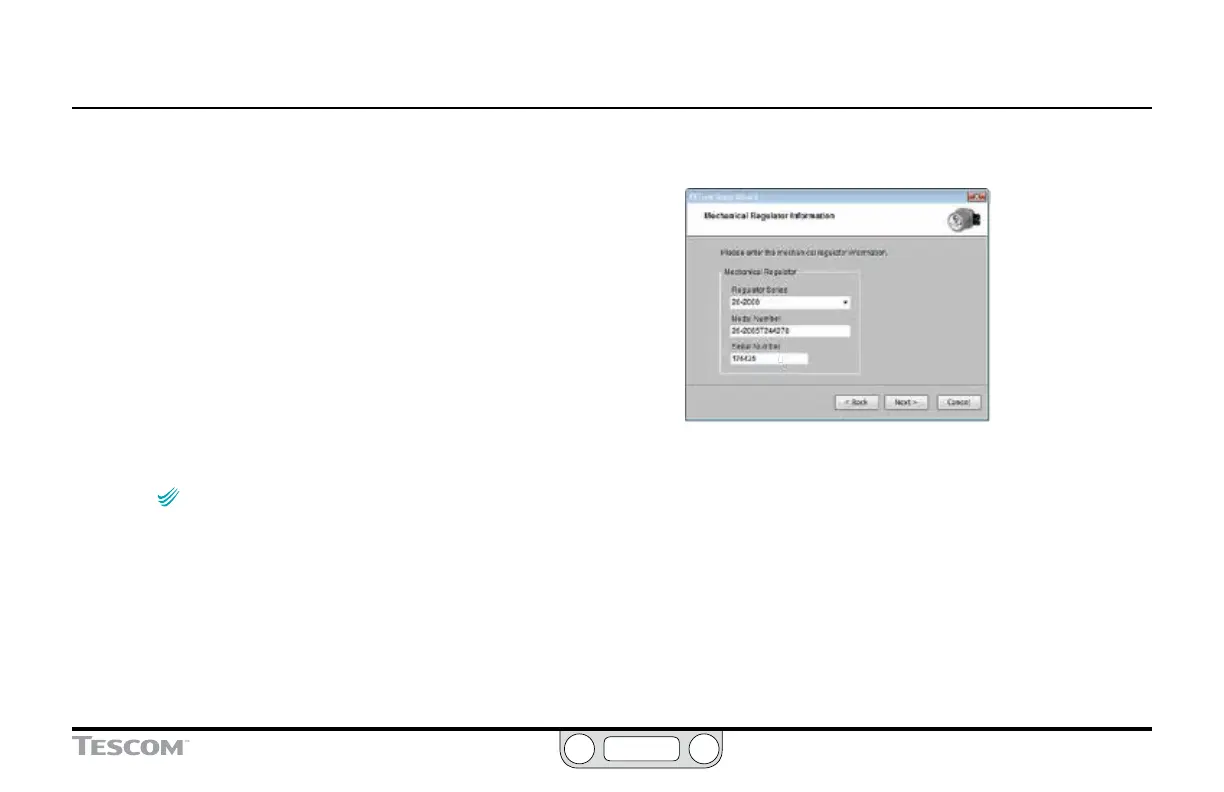

8. Click the Next > button. The Mechanical Regulator Information
window opens.
9. Enter the information for the regulator you are using.
• If you are using a TESCOM™ regulator, look for its series
number in the Mechanical Regulator Series drop-down
list. Also enter the Model Number and Serial Number from
the regulator.
• If you are using a regulator from another manufacturer,
select Other. Also enter the Model Number and Serial Number
from the regulator.
• If the ER5000 will not be connected to a regulator,
select None.
(continued next page)
