The ERTune™ Program: Basic Features
The Profile Builder Panel
The middle panel of the Prole Tab holds the tools for adding,
modifying and deleting segments of the Prole.

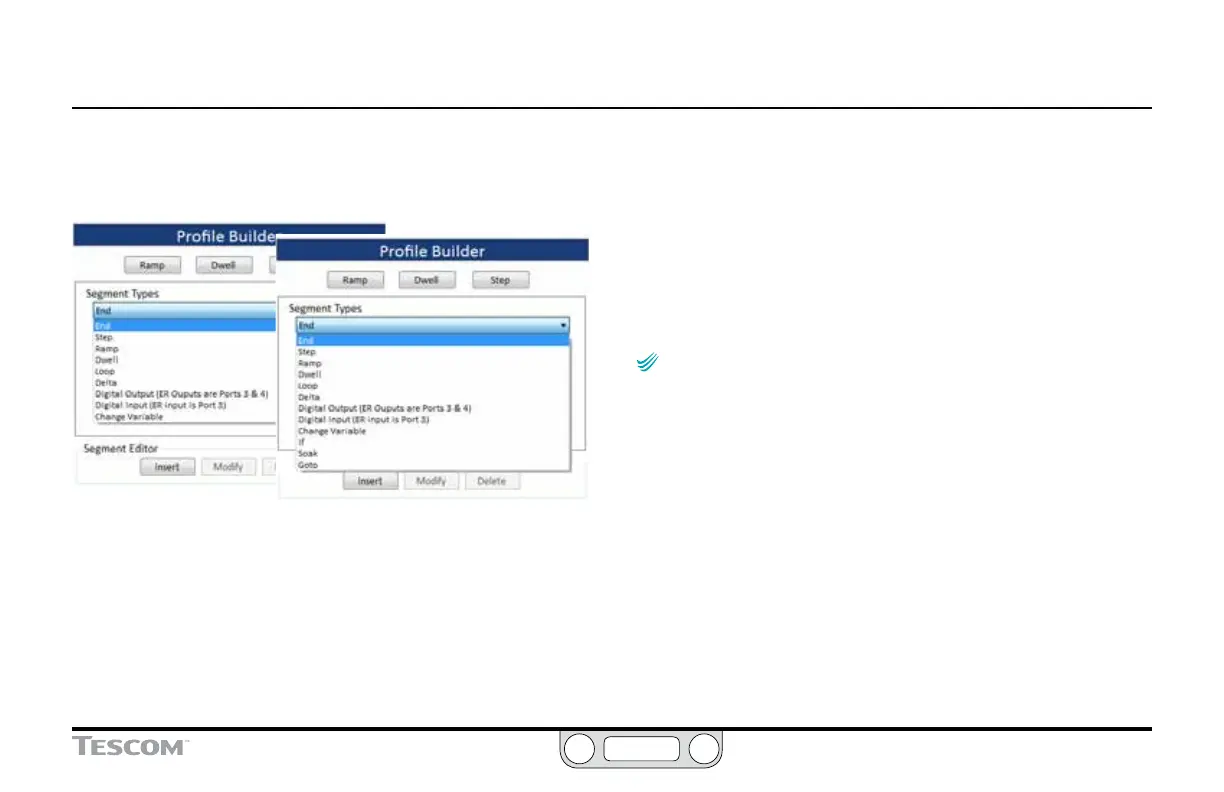

Figure 61: Drop-down Command Lists for “S” Model and “F” Model ER5000s
The Segment Types Window
The Segment Types Window displays the editing elds for a
command when it is selected from the drop-down list or by
clicking one of the three buttons. The Ramp, Dwell and Step
buttons allow you to quickly select the three most commonly
used commands.
The Segment Editor Window
There are three buttons in this window.
Insert
This button adds a new segment to the Prole. The new segment
is added above the segment that is currently selected in the
Prole Window.
Modify
This button saves the edits made to an existing segment.
IMPORTANT
!
IMPORTANT
!
You must click this button to update the Prole.
Delete
This button deletes the currently selected segment in the
Prole Window.
