Unidrive M702 / HS72 Control Getting Started Guide 13
Issue Number: 2
Safety information Introduction Control connections
Getting started
Basic parameters
(Menu 0)
Running the motor Further information

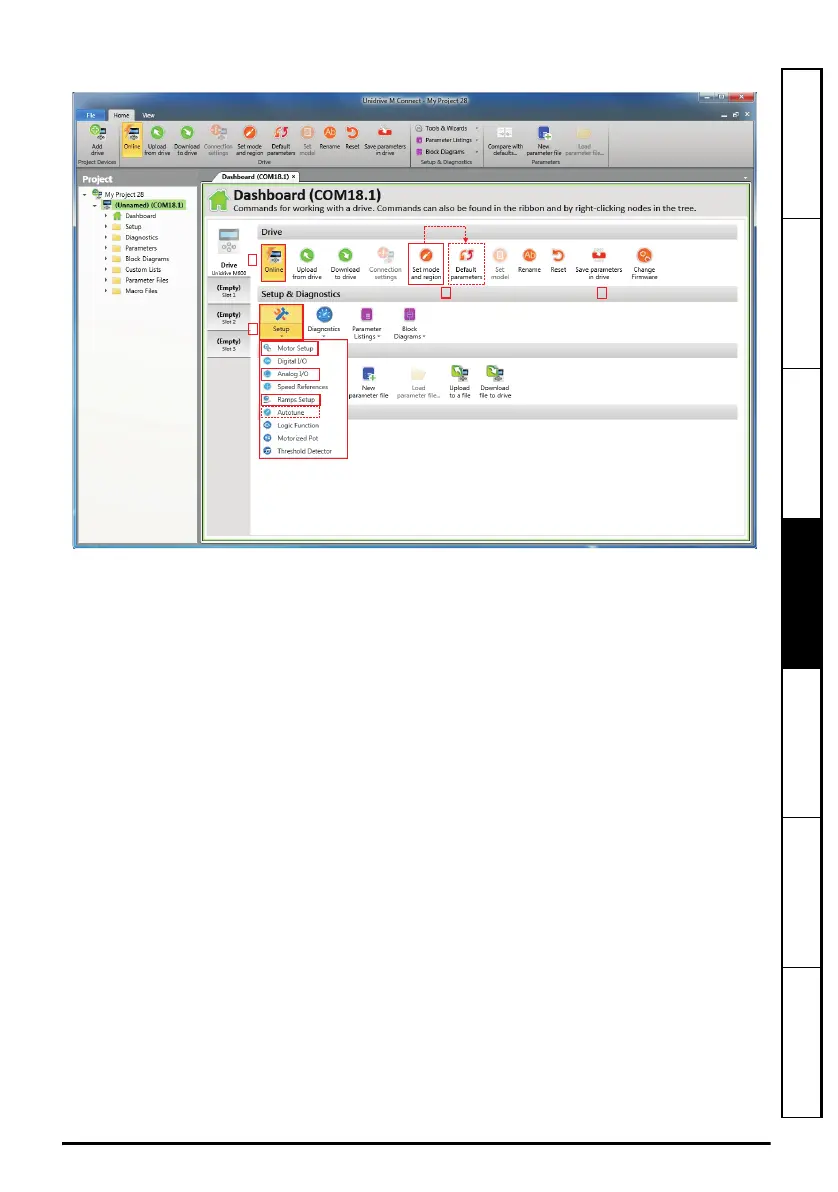

Select the discovered drive.
1. Select the ‘Online’ icon to connect with the drive. When a successful connection is made the icon will
be highlighted orange.
2. Select ‘Set mode and region’.
If the required control mode is highlighted in the ‘Drive Settings’ dialog, then:
• Change the supply frequency, if required and select ‘Apply’, otherwise select ‘Cancel’.
• Select ‘Default parameters‘ from the Dashboard and in the ‘Default Parameters’ dialogue, select ‘Apply’
If the required control mode is not highlighted in the ‘Drive Settings’ dialog then:
• Select the required mode and supply frequency.
• Select ‘Apply’.
3. Select ‘Setup’ and perform the steps highlighted (dotted lines indicate a step which may not need to be
performed (see below):
1
2
4
3
Unidrive M702_HS72 Control GSG Iss2.book Page 13 Friday, December 12, 2014 1:05 PM
