Unidrive M / HS Frame 7 to 10 Power Installation Guide 17
Issue Number: 5
Safety information
Product information
Mechanical installation Electrical installation Technical data UL listing information
2.5.1 Items supplied with the drive
The drive is supplied with a copy of the Power Installation Guide and a copy of the Control Getting
Started Guide / Quick Start Guide, a safety information booklet, the Certificate of Quality and an
accessory kit box including the items shown in Table 2-7.

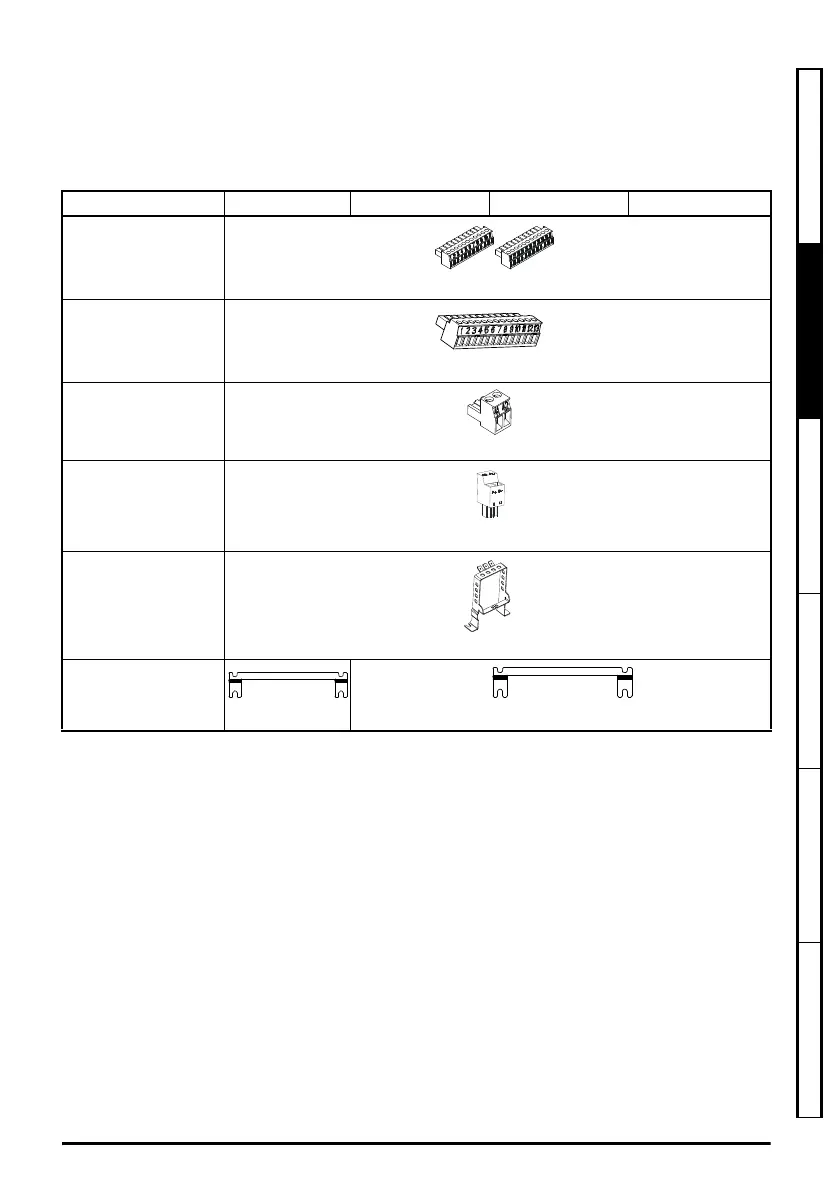

Table 2-7 Parts supplied with the drive
* Supplied with Unidrive M700 / M701 / M600 only.
** Supplied with Unidrive M702 only.
*** Supplied with Unidrive M600 to M702 only.
Description Size 7 Size 8 Size 9A / 9E Size 10E
Control connectors
(1 to 11 and 21 to 31)
x 1* x 1*
Control connector
(1 to 13)
x 1**
Relay connector
x 1***
24 V power supply
connector
x 1***
Grounding bracket
x 1
Surface mounting
brackets
x 2 x 2
Unidrive M frame7 to 10 Power Installation Guide issue5.book Page 17 Tuesday, May 24, 2016 11:52 AM
