Unidrive M / HS Frame 7 to 10 Power Installation Guide 39
Issue Number: 5
Safety information Product information
Mechanical installation
Electrical installation Technical data UL listing information
3.9 External EMC filter
The external EMC filters for sizes 7 to 10, are designed to be mounted above the drive as shown
below.

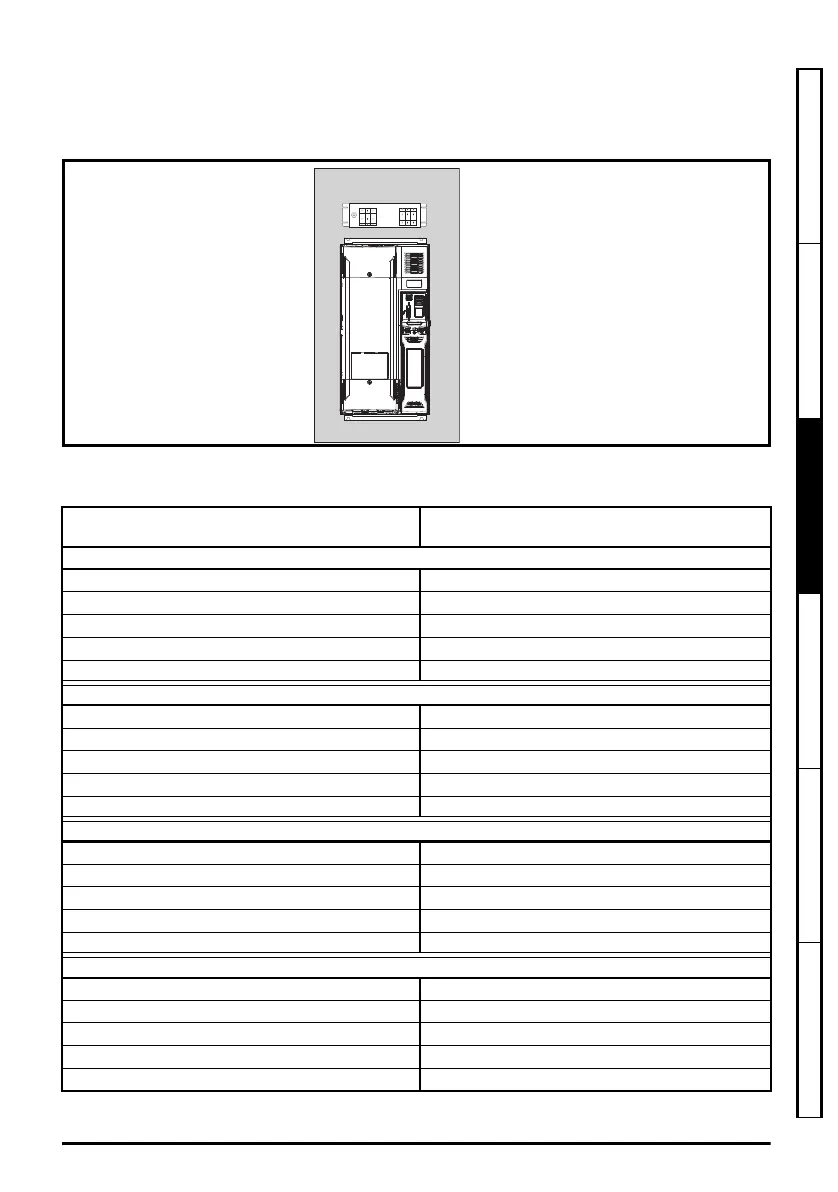

Figure 3-17 Size 7 to 10 mounting of the EMC filter
3.9.1 Optional external EMC filters
Table 3-5 EMC filter cross reference
Model CT part number
200 V
07200610 to 07200830 4200-1132
08201160 to 08201320 4200-1972
09201760 to 09202190 (9A) 4200-3021
09201760 to 09202190 (9E) 4200-4460
10202830 to 10203000 4200-4460
400 V
07400660 to 07401000 4200-1132
08401340 to 08401570 4200-1972
09402000 to 09402240 (9A) 4200-3021
09402000 to 09402240 (9E) 4200-4460
10402700 to 10403200 4200-4460
575 V
07500440 to 07500550 4200-0672
08500630 to 08500860 4200-1662
09501040 to 09501310 (9A) 4200-1660
09501040 to 09501310 (9E) 4200-2210
10501520 to 10501900 4200-2210
690 V
07600190 to 07600540 4200-0672
08600630 to 08600860 4200-1662
09601040 to 09601310 (9A) 4200-1660
09601040 to 09601310 (9E) 4200-2210
10601500 to 10601780 4200-2210
Unidrive M frame7 to 10 Power Installation Guide issue5.book Page 39 Tuesday, May 24, 2016 11:52 AM
