6 Electronic Bypass Controller Installation and Commissioning Guide
Section 2 - Installation Instructions
2.1 Receiving
After unpacking the electronic bypass package:
3 Verify that the part numbers on the package match the numbers on your purchase
order, packing slip or tagging information.
3 Check the unit for physical damage which may have occurred during shipping.
If any part of the package is missing or damaged, notify the carrier and your
Emerson Control Techniques representative immediately.
3 Verify that all internal hardware (i.e. components, screws, etc.) is properly seated
and fastened securely.
2.2 Nameplate Information
The electronic bypass package has two nameplates for identication. The main label
is located on the inside of the enclosure. This nameplate provides information on the
entire package. The second nameplate is located on the VFD. This nameplate contains
information related to the VFD only. The nameplate information should be recorded
and kept in a safe location. This information is required for any service or repair.

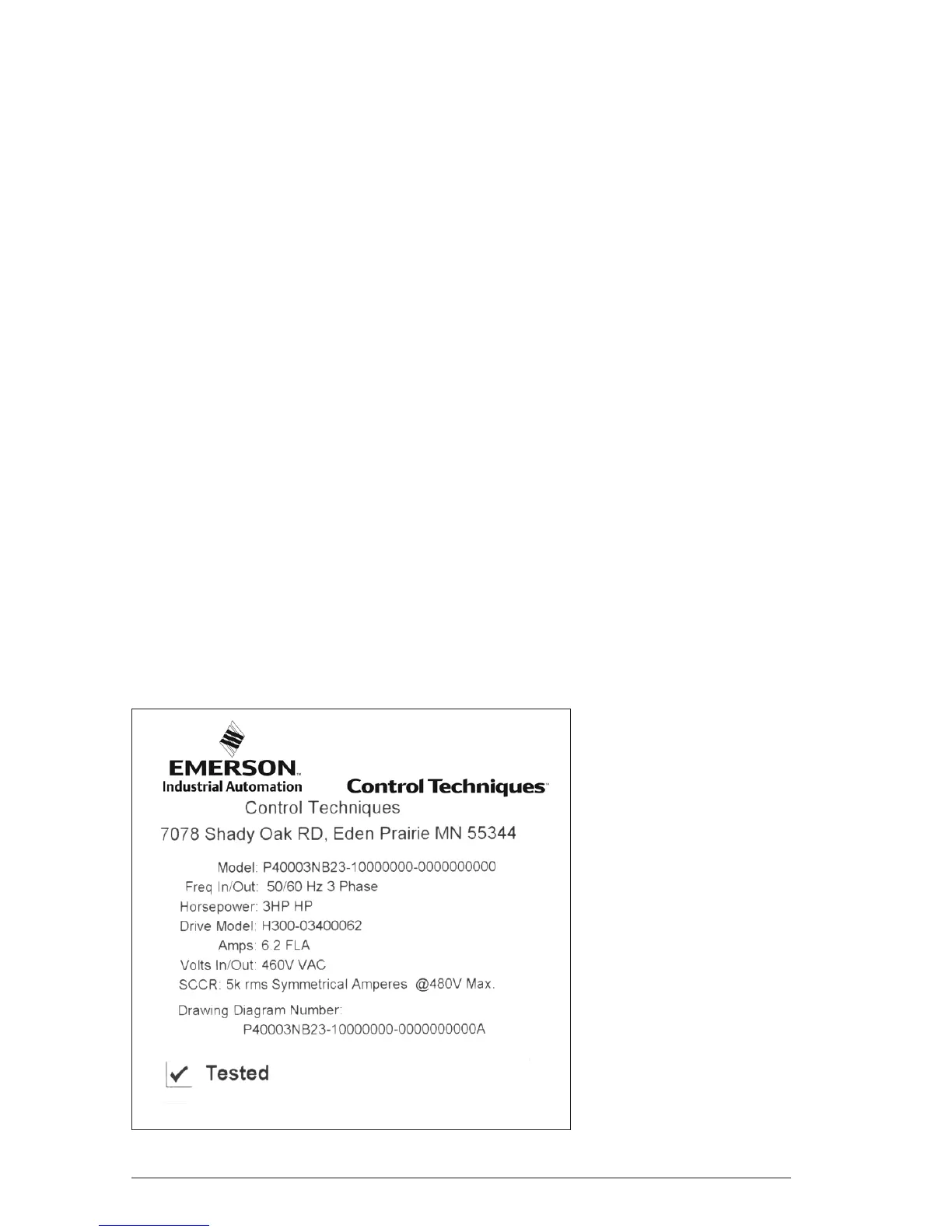

Electronic Bypass Package Label
