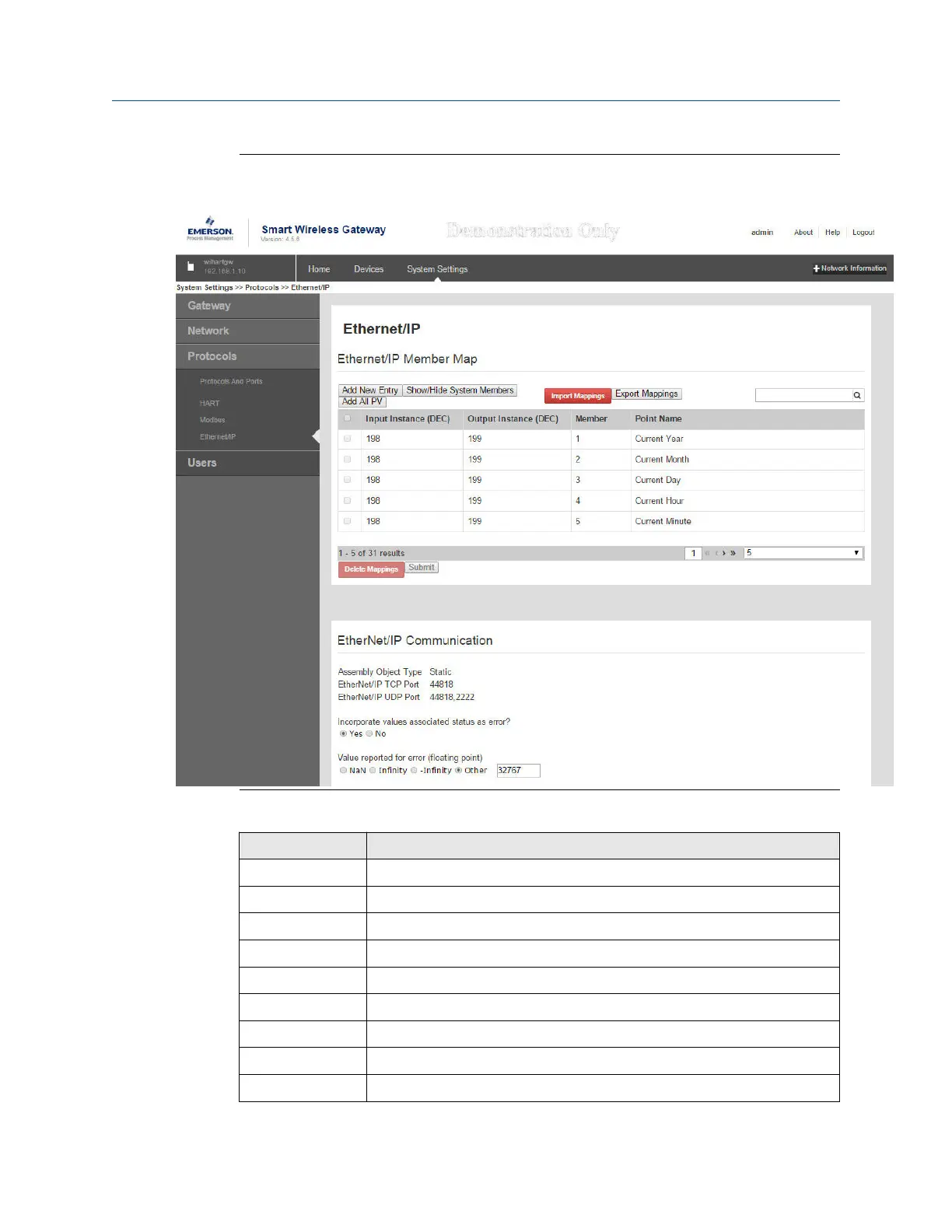

Figure 5-7: EtherNet/IP Register Map Page
Table 5-4: Summary of Terms Used for EtherNet/IP Mapping Page
Terms Description
Input Instance EtherNet/IP Input Static Assembly Instance - 496 bytes
Output Instance EtherNet/IP Output Static Assembly Instance - 496 bytes
Member EtherNet/IP Instance Member in which data will get produced or consumed
Point Name Assigned data point in the format HARTtag.parameter
New entry Creates a new entry in this table
<<First Navigates to the first page of this table
<<Previous Navigates to the previous page of this table
Search Finds the next occurrence of the characters entered into this field
Next>> Navigates to the next page of this table
