emesent HOVERMAP - Page 8

DJI M300/M350 preparation for Hovermap operation
Release date: 30 Apr 2024
Revision: 2.2
4
4.
5.
6.

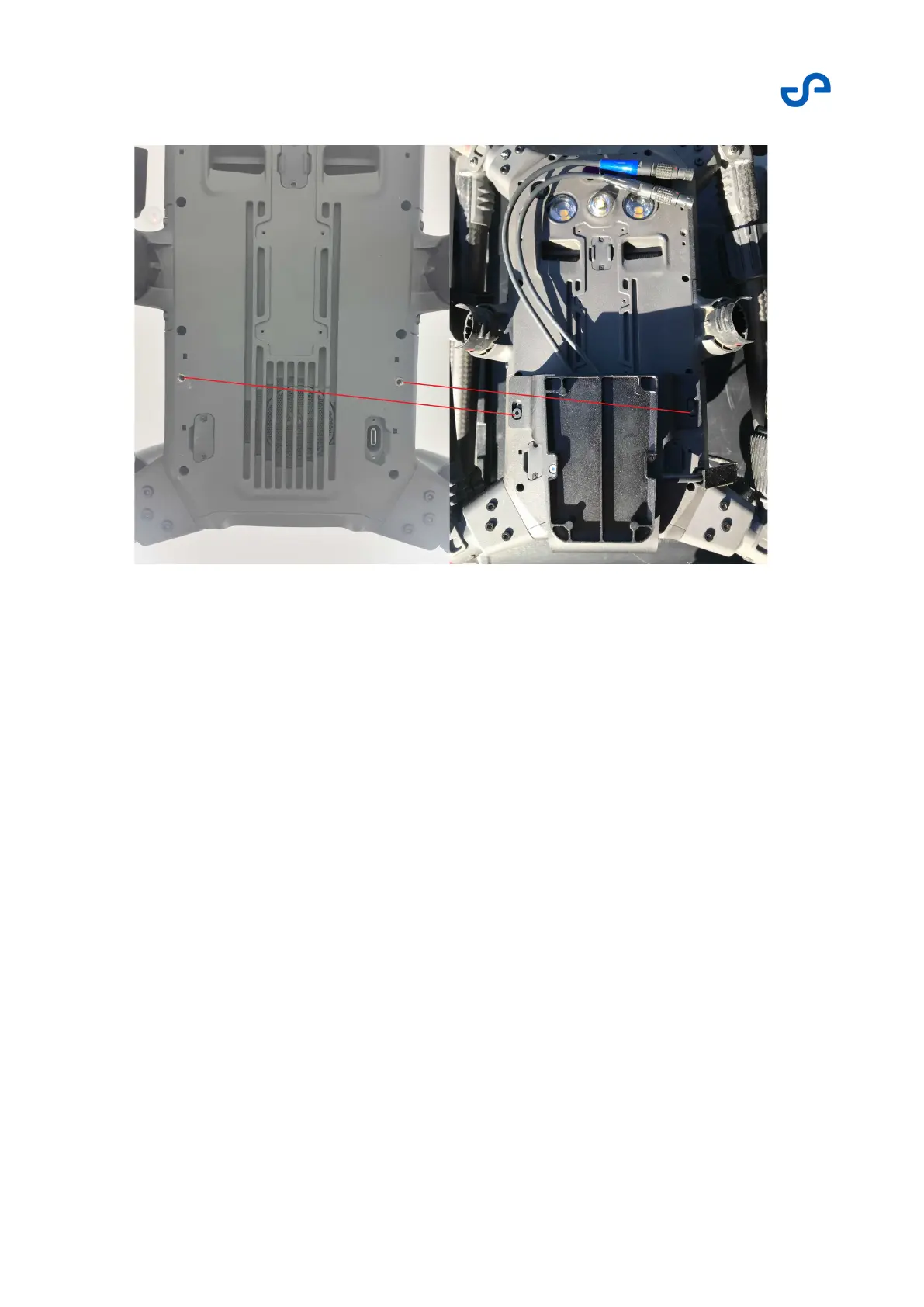

Figure 3 DJI M300/M350 underside mounting supports
Completely tighten the screws on the front of the drone.
Completely tighten the screws on the bottom of the drone.
On the top of the DJI M300/M350, plug the OSDK connector into the OSDK port.
