11
REFRIGERANT PROCESSING
Use following example to fi nd charge adjustment and
system charge for any air handles and tubing length.
Line Adjustment = (Line Charge/FT) x Line Length
System Total = Factory Charge + Line Adjustment
Round to nearest ounce and allow for gauges and hoses.
Condenser
Line Charge
Per Foot
Factory
Charge
Condenser
Line Charge
Per Foot
Factory
Charge
S1CV9000
.25 oz/ft
(23 g/m)
39.5oz (1120g) S1HV9000
.25 oz/ft
(23 g/m)
39.5oz (1120g)
S1CV2000
.25 oz/ft
(23 g/m)
39.5oz (1120g) S1HV2000
.25 oz/ft
(23 g/m)
39.5oz (1120g)
S1CV8000
.64 oz/ft
(59 g/m)
54.0oz (1531g) S1HV8000
.64 oz/ft
(59 g/m)
54.0oz (1531g)
S1CV4000
.64 oz/ft
(59 g/m)
54.0oz (1531g) S1HV4000
.64 oz/ft
(59 g/m)
54.0oz (1531g)

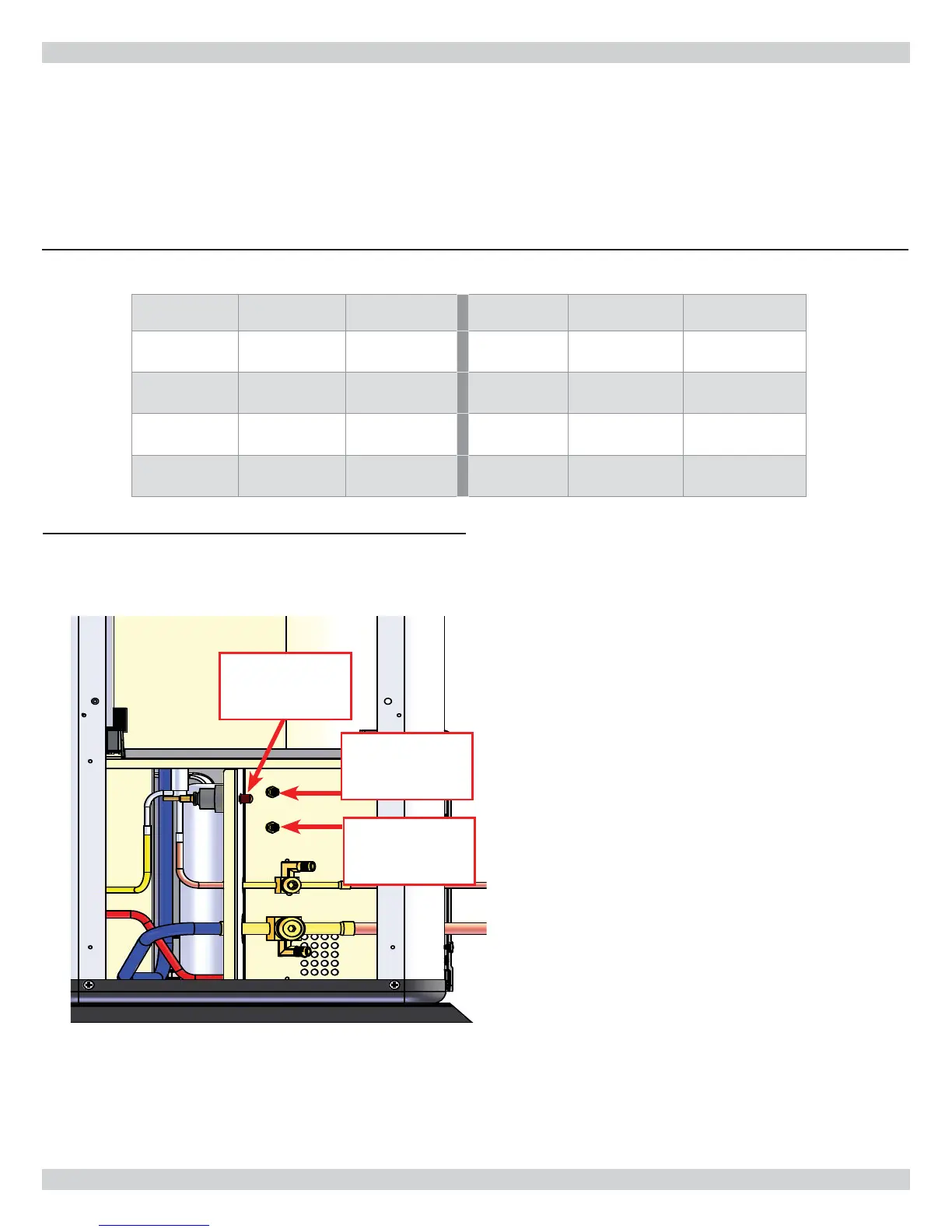

Table 4 - S1CV / S1HV Refrigerant Charge Table
Figure 10 - Common Suction Port & Discharge
Ports
COMMON
DISCHARGE-
PORT
HIGH
PRESSURE
SWITCH
COMMON
SUCTION
PORT
