EMI S1CV - UNHV System Options

25

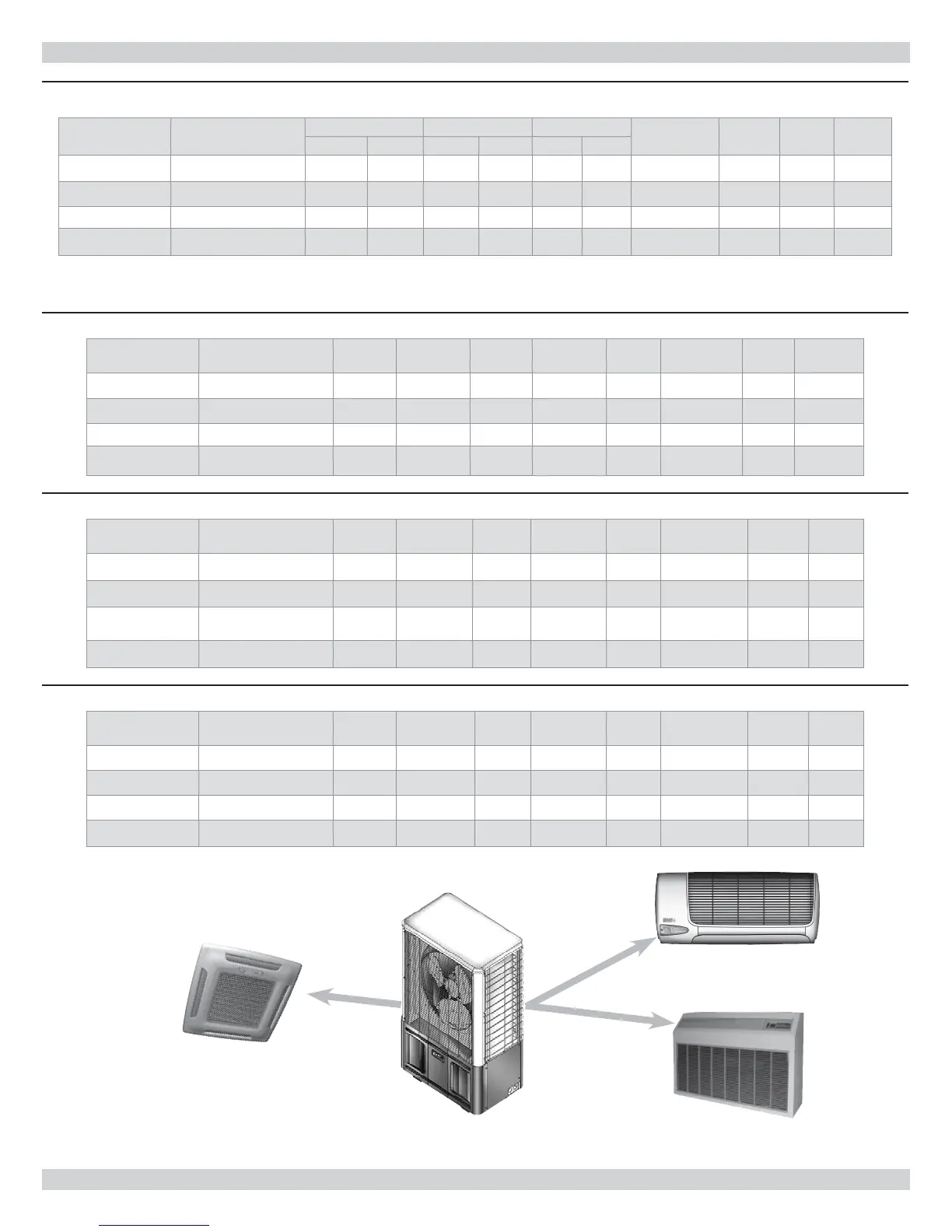

SPECIFICATIONS AND DIMENSIONS
Table 9 - S1HV Electrical Specifi cations
Model # Volts/HZ/PH
OD Fan motor ID Fan motor Compressor
Total
amps
Min
volt
M.C.A.
HACR
BRKR
AMPS HP AMPS HP RLA LRA
S1HV9000D 208/230/60/1 0.65 0.11 0.4 0.10
4.2 12 5.25 197 6.3 15
S1HV2000D 208/230/60/1 0.65 0.11 0.4 0.10 7.9 12 8.95 197 10.9 15
S1HV8000D 208/230/60/1 0.65 0.11 0.6 0.125 9.9 415 11.15 197 13.6 20
S1HV4000D 208/230/60/1 0.65 0.11 0.6 0.125 13.0 15 14.25 197 17.5 30
S1HV performance data: Matched with EMI Ductless Series Indoor Units
Table 10 - Heat Pump Systems With Wall Units
Condenser Wall unit
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HV9000 WLHV09 9,000 8,800 16.7 8.2 0.75 13.5 3.2 R410A
S1HV2000 WLHV12 12,000 10,000 17.0 8.5 0.66 12.0 3.0 R410A
S1HV8000 WLHV18 18,000 18,000 17.0 9.5 0.73 13.0 3.5 R410A
S1HV4000 WLHV24 24,000 21,000 17.0 9.0 0.66 11.0 3.0 R410A
Table 11 - Heat Pump Systems With Universal Units
Condenser Universal
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HV9000 UNHV09 9,000 8,800 16.7 8.2 0.75 13.5 3.2 R410A
S1HV2000 UNHV12 12,000 10,000 17.0 8.5 0.66 12.0 3.0 R410A
S1HV8000 UNHV18 18,000 18,000 17.0 9.5 0.93 13.0 3.5 R410A
S1HV4000 UNHV24 24,000 21,000 17.0 9.0 0.66 11.0 3.0 R410A
Table 12 - Heat Pump Systems With Cassette Units
Condenser Cassette
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HV9000 CAHV9 9,000 8,400 15.0 7.7 0.79 13.0 3.0 R410A
S1HV2000 CAHV12 12,000 8,800 15.8 7.7 0.69 12.0 3.0 R410A
S1HV8000 CAHV18 18,000 17,000 17.0 9.0 0.74 13.0 3.1 R410A
S1HV4000 CAHV24 24,000 19,000 17.0 9.0 0.66 11.0 3.0 R410A
S1CV/S1HV
Single zone
WLHV
CAHV
UNHV
