EMI S1CV - Specifi Cations and Dimensions

24

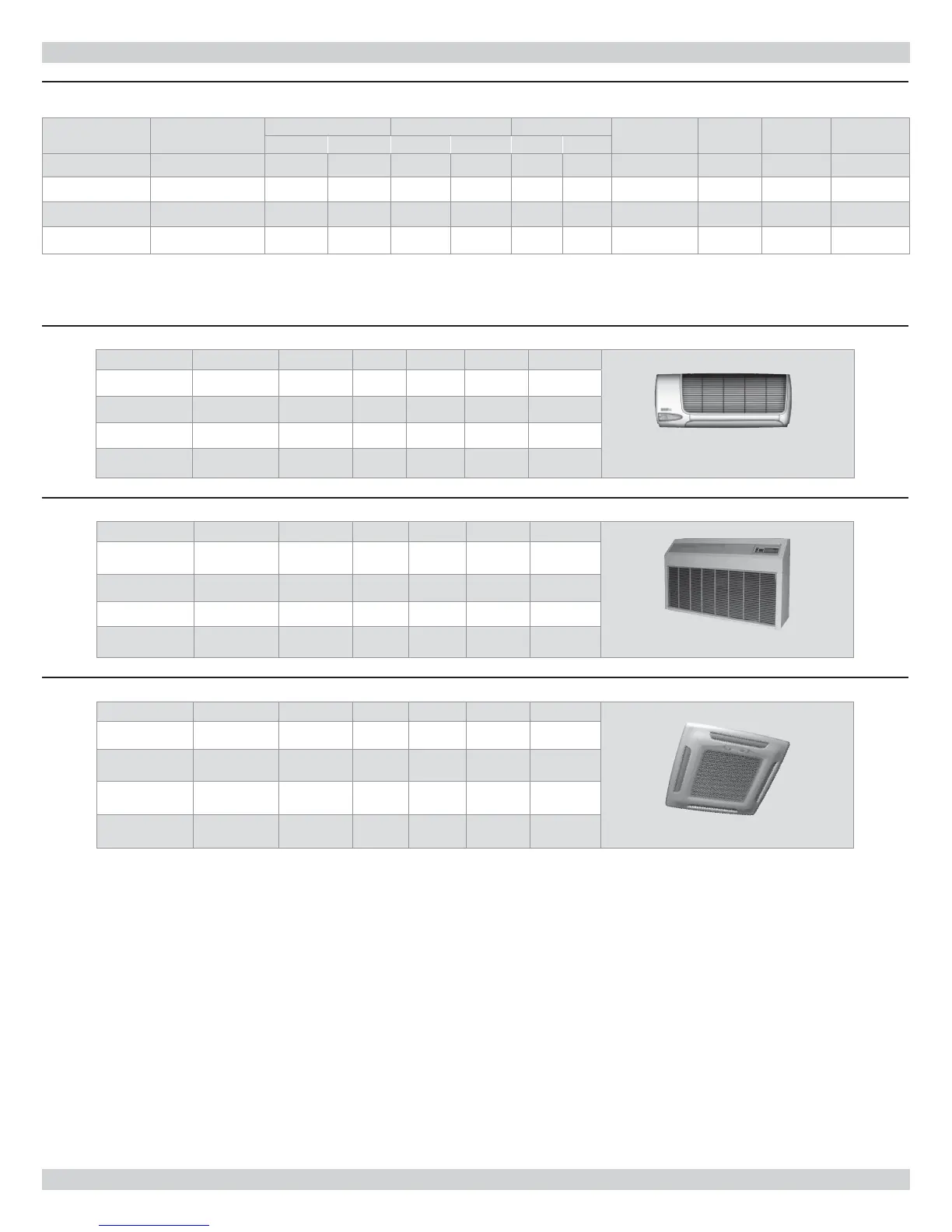

SPECIFICATIONS AND DIMENSIONS
Table 5 - S1CV Electrical Specifi cations
Model # Volts/HZ/PH
OD Fan Motor ID Fan Motor Compressor
Total
Amps
Min
Volt
M.C.A.
HACR
BRKR
AMPS HP AMPS HP RLA LRA
S1CV 9000D 208/230/60/1 0.65 0.11 0.4 0.10 4.2 12 5.25 197 6.3 15
S1CV 2000D 208/230/60/1 0.65 0.11 0.4 0.10 7.9 12 8.95 197 10.9 15
S1CV 8000D 208/230/60/1 0.65 0.11 0.6 0.125 9.9 15 11.15 197 13.6 20
S1CV 4000D 208/230/60/1 0.65 0.11 0.6 0.125 8.0 15 14.25 197 17.5 30
S1CV performance data: Matched with EMI Ductless Series Indoor Units
Table 6 - Cooling Systems With Wall Units
Condenser Wall Unit Btuh SEER SHR EER Ref.
WLHV
S1CV9000 WLHV09 9,000 16.7 0.75 13.5 R410A
S1CV2000 WLHV12 12,000 17.0 0.66 12.0 R410A
S1CV8000 WLHV18 18,000 17.0 0.73 13.0 R410A
S1CV4000 WLHV24 24,000 17.0 0.67 11.0 R410A
Table 7 - Cooling Systems With Universal Units
Condenser Universal Btuh SEER SHR EER Ref.
UNHV
S1CV9000 UNHV09 9,000 16.7 0.75 13.5 R410A
S1CV2000 UNHV12 12,000 17.0 0.66 12.0 R410A
S1CV8000 UNHV18 18,000 17.0 0.73 13.0 R410A
S1CV4000 UNHV24 24,000 17.0 0.67 11.0 R410A
Table 8 - Cooling Systems With Cassette Units
Condenser Cassette Btuh SEER SHR EER Ref.
CACV / CAHV
S1CV9000 CAHV9 9,000 15.0 0.79 13.0 R410A
S1CV2000 CAHV12 12,000 15.8 0.69 12.0 R410A
S1CV8000 CAHV18 18,000 17.0 0.74 13.0 R410A
S1CV4000 CAHV24 24,000 17.0 0.66 11.0 R410A
