EMKO EAOM-3-STP-ALT User Manual

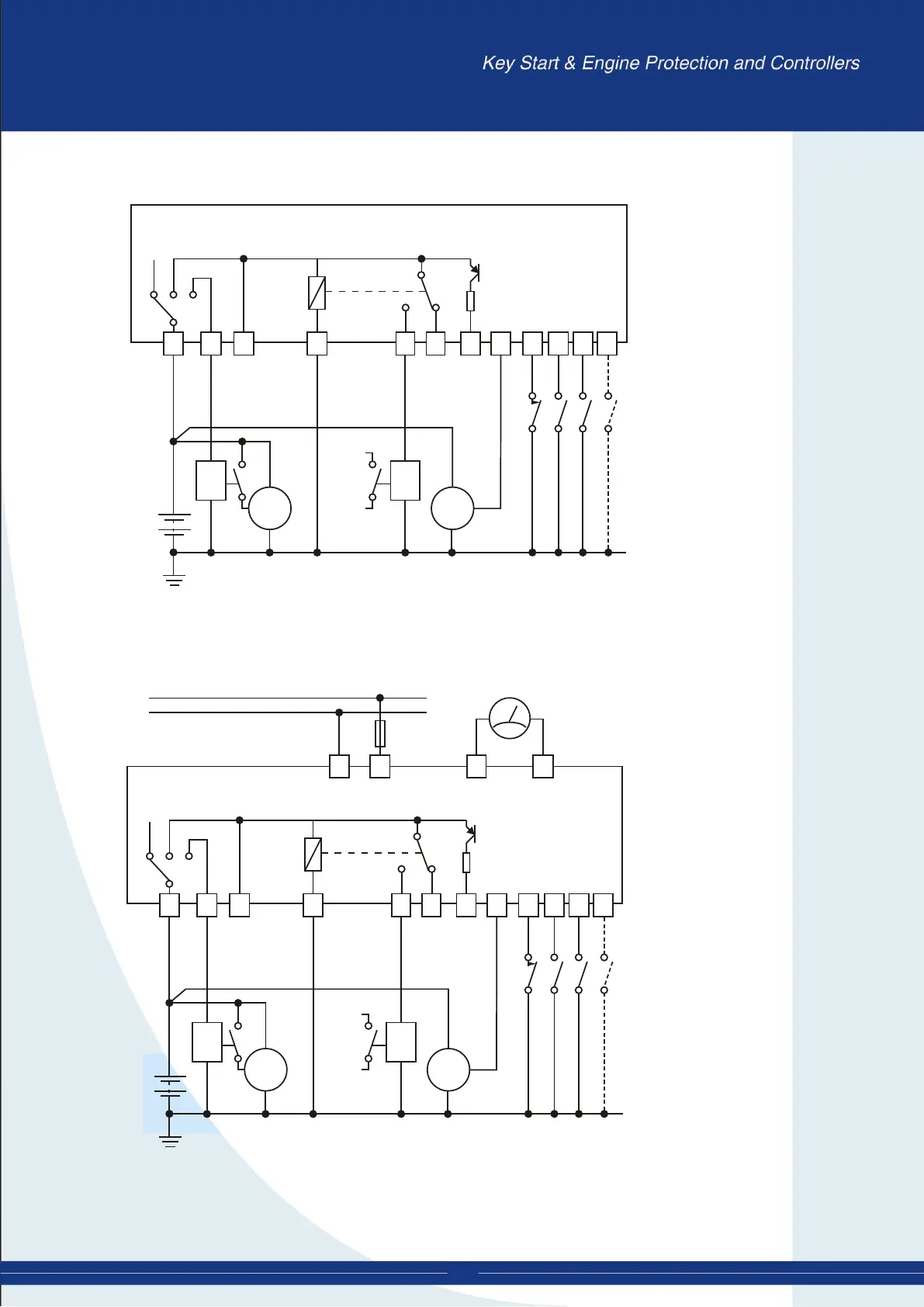

Electrical Wiring for EAOM-3, EAOM-3-HM, EAOM-3-STP, EAOM-3-HM-STP
Electrical Wiring for EAOM-3-ALT, EAOM-3-HM-ALT, EAOM-3-STP-ALT, EAOM-3-HM-STP-ALT
BATTERY NEGATIVE MUST BE GROUNDED
CHARGE GENERATOR
ALARM
(MAX. 5A)
PREHEAT
(MAX. 200mA)
(MAX.12A)
BATTERY
40A 40A
+
-BATTERY
+BATTERY
OUT(MAX 1A)
STARTER
CHARGE
GEN.
GENERATOR
TACHOMETER
(0...1mA)
+
-
FUSE
D+(W.L.)
B+
START
RELAY
FUEL
SOLE.
LOW OIL PRESSURE
HIGH TEMPERATURE
AUXILIARY SHUTDOWN
81110 9 7 6 5 4231
12 14
L1
N
13 15
OFF RUN START
KEYSWITCH
16
AUX-2 INPUT
(ONLY STP TYPES)
BATTERY NEGATIVE MUST BE GROUNDED
CHARGE GENERATOR
ALARM
(MAX. 5A)
PREHEAT
(MAX. 200mA)
(MAX.12A)
BATTERY
40A 40A
+
-BATTERY
+BATTERY
OUT(MAX 1A)
STARTER
CHARGE
GEN.
D+(W.L.)
B+
START
RELAY
FUEL
SOLE.
LOW OIL PRESSURE
HIGH TEMPERATURE
AUXILIARY SHUTDOWN
81110 9 7 6 5 4231
OFF RUN START
KEYSWITCH
16
AUX-2 INPUT
(ONLY STP TYPES)
