Operation

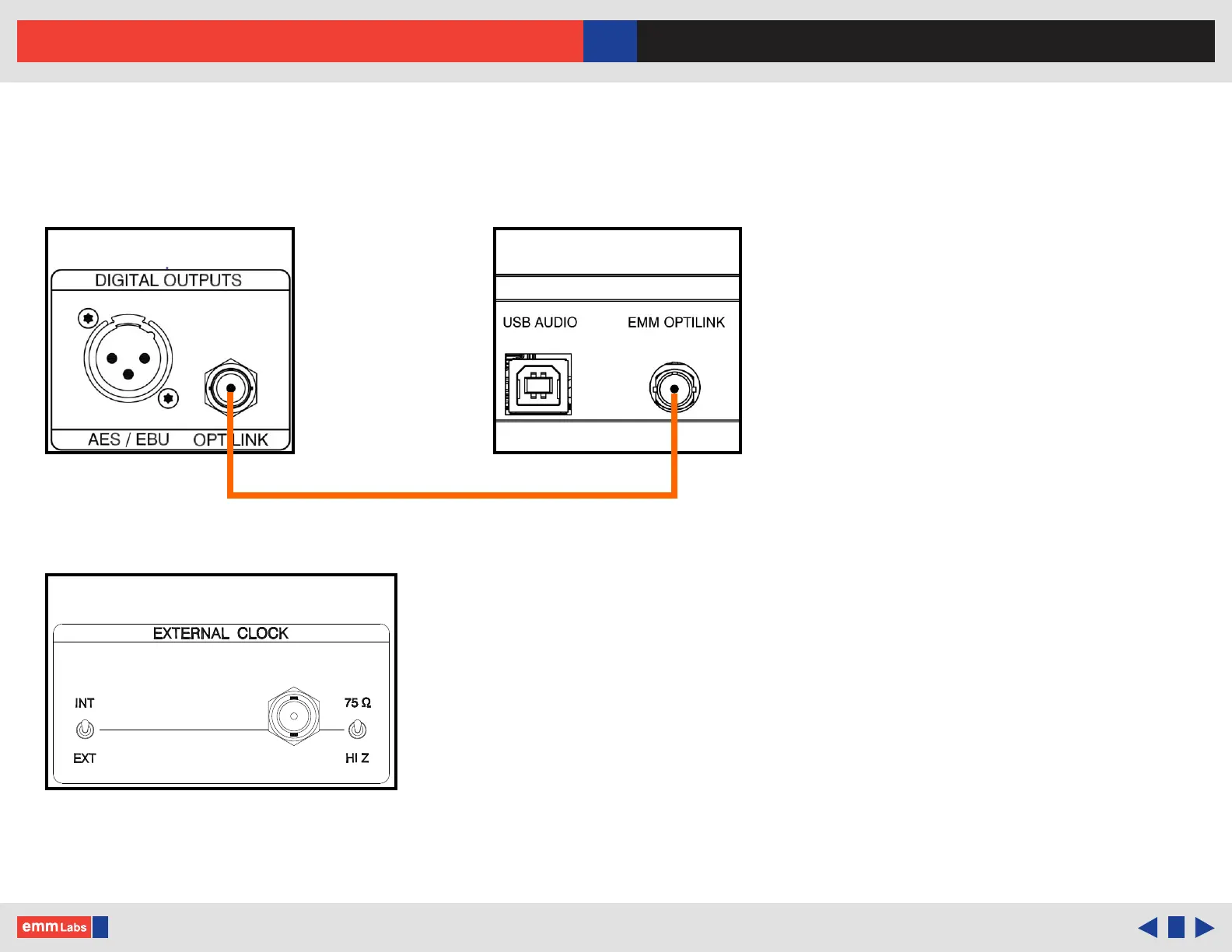

EMM Optilink Connection
For the TX2/TSDX/XDS1/TSD1 connect the EMM Optilink cable from the to the DA2i.
For the TSD1, along with the EMM Optilink cable connection, the External Clock switch
must be set to internal.
TSD1 External Clock
EMM Optilink Cable
TX2/TSDX/XDS1 DA2i
© 2024 EMM Labs, All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.
015
Operation
DA2i STEREO D/A CONVERTER OWNER’S MANUAL
