Emmaljunga UniQ 310 - Assembly of seat unit; Seat Unit and Harness Assembly

This section applies to following products:
Duo Combi Mondial 3-in-1, Edge 3-in-1
3
3
4
6
5
5
7
8
8
2
3
4
1
2
1
113
Manual Duo Combi UniQ 310 v 1.6
English
• Place the shoulder straps (4) through the holes in the backrest.
• Place the waist straps (5) through the holes in the seat.
• Place the crutch strap (6) through the hole in the base and
seat.
• Make sure that the waist harness straps are securely attached to
the two D rings, one on each side.
• Place the shoulder pads over the two shoulder straps (7). Attach
the waist harness with the lock (8).
Assembly of Seat unit and 5-point Harness

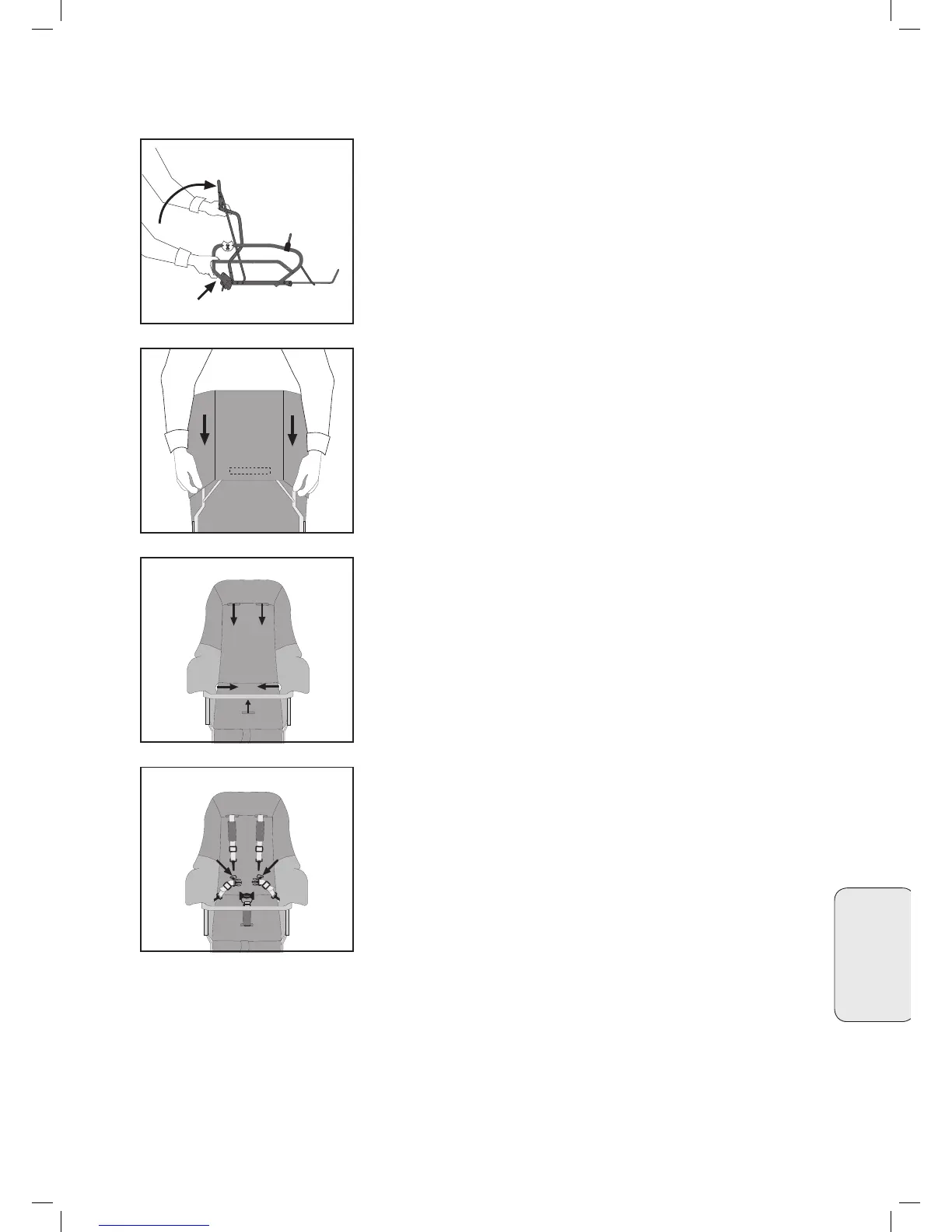

• Lift the seat adjustment lever (1). Push the backrest into its upright
position (2).
• Before assembly, release shoulder straps and waist straps from
harness buckle.
Slide back pocket of seat fabric (3) over seat frame backrest.
Assembly of seat unit
