Assembly and usage of chassis
WARNING
Make sure that children are kept away from moving parts when
assembling the pram, otherwise they might be at risk of injury.

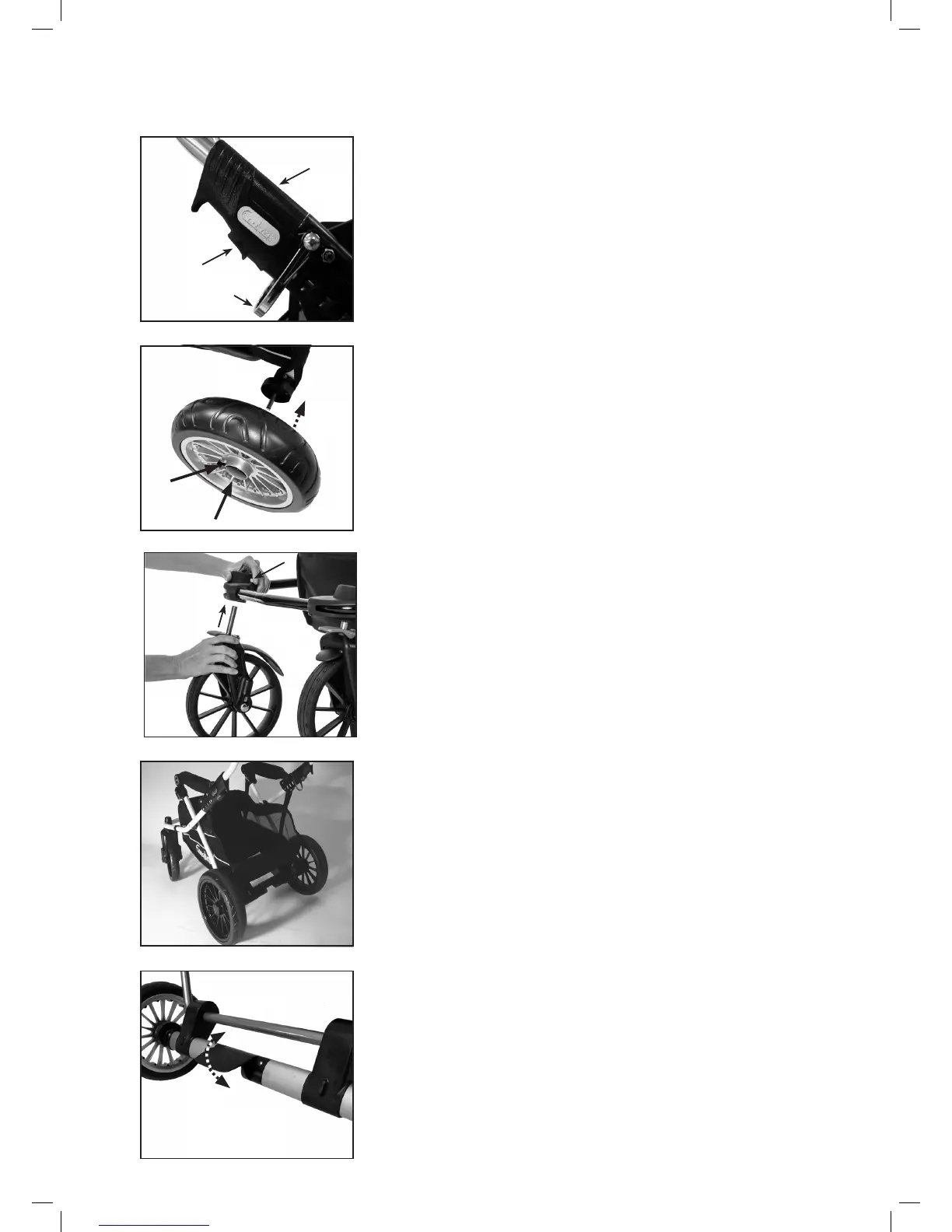

Unfolding the chassis
• Apply the brake on the pram. To unfold the chassis, pull the handle
upwards, whilst holding down the side of the chassis.
WARNING
• Always make sure that the main locking device (2) and the button
(3) on both sides clicks into the locked position .
• The safety catch (1) (secondary locking mechanism) is activated to
prevent unintentional folding if the chassis locks are not locked into
position.
• Make sure, before you use the pram that both chassis locks are in
the locked position.
Attaching the wheels
• Remove the plastic protection from the axles. Save them for future
use.
• Release the brake by pushing the brake pedal upwards using mini-
mum force with your foot.
• Press in the hub cap’s release button (4 or 4a), push the wheel onto
the axle as far as it can go. Release the button and pull the wheel
towards you, until you hear a denite click. Repeat the same proce-
dure for both rear wheels. Make sure that the wheels are attached
properly and cannot be pulled off the axle.
IMPORTANT
• The wheels are greased and can leave marks on textiles. Please
use wheel protection indoors to protect your oors.
• Risk of suffocation. Don’t let your child play with or in some other
way handle the plastic protectors.
• Attach the shopping tray to the chassis according to the included
instruction.
Engaging the parking device
• Engage the parking device by pushing the brake pedal (7) all the
way down with your foot.
• Disengage the parking device by lifting the pedal up with your foot.
WARNING
• Never leave the vehicle without rst engaging the parking device.
• The brake should always be engaged when you lift your child in
and out of the stroller/pram.
• Avoid uphill or downhill parking.
• Make sure that the cogs are attached properly on both back
wheels.
• Make sure that the brake pin engages into the cogs when the ve-
hicle is parked.
Attaching the front wheels to chassis.
(Onlyforchassiswithremovablefrontwheels.)
• Depress the release button (5) and push the front wheel in place
(6).
Important.
• Before use, always make sure that the front wheels are correct
mounted to the chassis.
