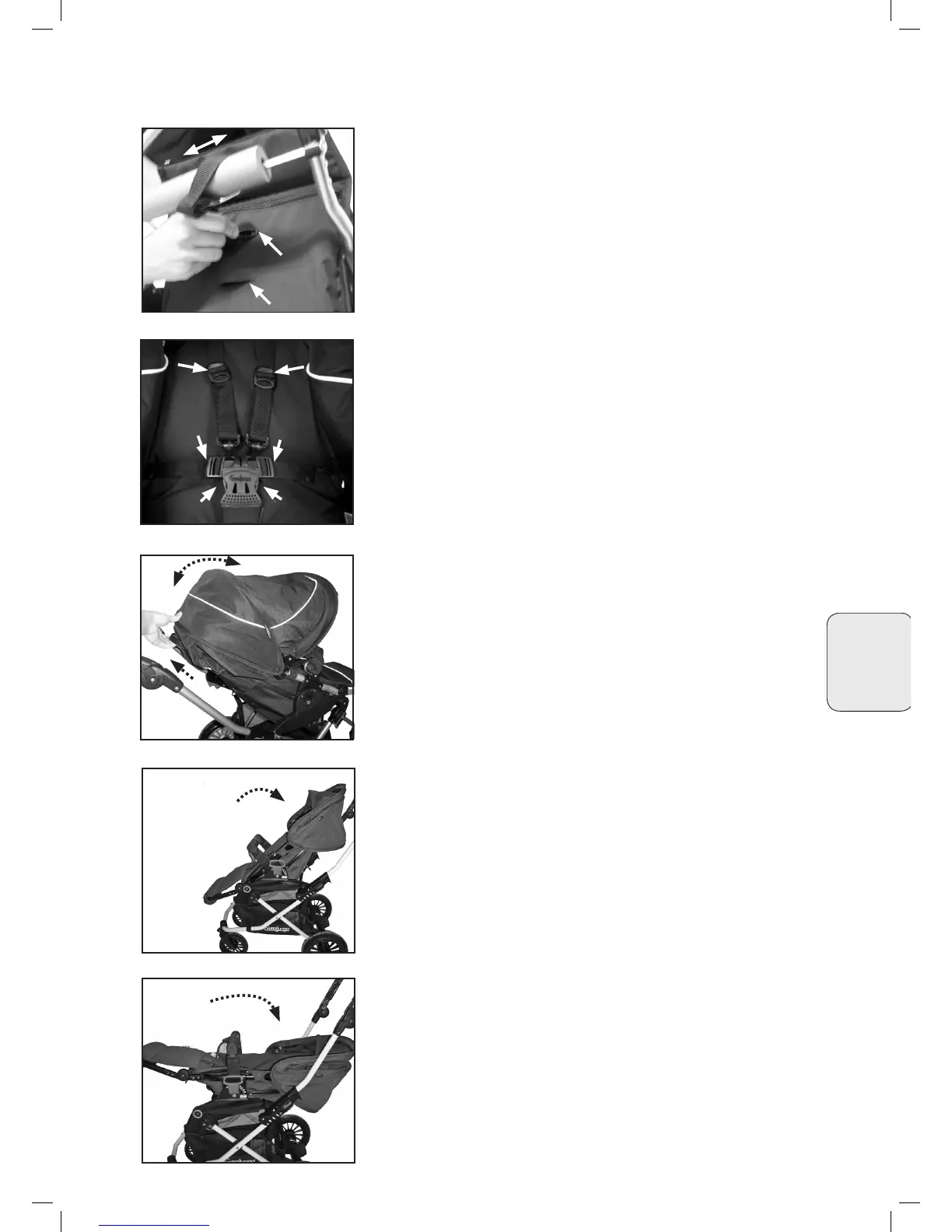

Assembly and usage of seat unit
Adjustthe5-pointharness
• Bring crutch strap (25) forward between the child’s legs and up
toward the front of the waist. Insert the waist straps (26) into the
harness buckle until they “click” into place. Make sure the waist
straps are fastened securely.
• Adjust all sliders (27) on the waist and shoulder strap so that the
straps t snugly around the child.
• To release the shoulder and waist straps, press the buttons (28) in
the centre of the harness buckle.
• Attachment points are provided at the ends of each waist strap for a
separate harness complying with BS 6684
WARNING
• Always fasten the child in with the harness when they are placed in
the pram. Make sure that all attachment points are correctly faste-
ned and that the harness is assembled in the pram.
Adjustingthebackrest/seatunit
• Pull the backrest lever (plastic strap) (29) and lower/ raise the
backrest/seat unit into the desired position (30).
WARNING
• Make sure that the backrest/seat unit is locked into one of its 4
positions by pushing the backrest/seat unit backwards until it locks
into one of its positions. Please note! The lowest recline position
should only be used when folding the stroller.
• Lower the backrest/seat unit into its lowest position by pulling the
backrest lever and lowering the seat unit down to its lowest position
before it is folded (32).
IMPORTANT!
• The backrest/seat unit should always be in its lowest position (fully
reclined) before the pram is folded. Please note! The lowest recline
position should only be used when folding the stroller.
• Fold the chassis according to the instructions accompanying picture
9-10.
• To make the pram more compact when folding, the bumper can be
removed according to the instructions in accompanying pictures 4-5.
WARNING
Make sure children are clear of any moving parts if you adjust the
stroller, otherwise they may be injured.
Folding of the chassis
• Apply the brake on the pram. Push back the hood (31) towards the
backrest.
WARNING
• Always remove the child before you fold or unfold the vehicle .
• Keep children away when folding or unfolding the vehicle.
Positioning of the crutch strap
Moving from the inner to the outer position.
• In order to move the crutch strap from the inner to the outer hole,
open the zipper (22) to access the bottom of the seat unit.
• Pull out the strap from the under side (23) and insert the strap in
the outer hole through the fabrics and the wooden seat plate (24).
• Close the zipper (22).
Moving from the outer to the inner position.
• In order to move the crutch strap from the outer to the inner hole,
follow the same steps as above.
WARNING
• Before you use the pram, make sure that the seat fabrics are correctly
attached and that all 5 zippers are correctly fastened
