5. SETUP

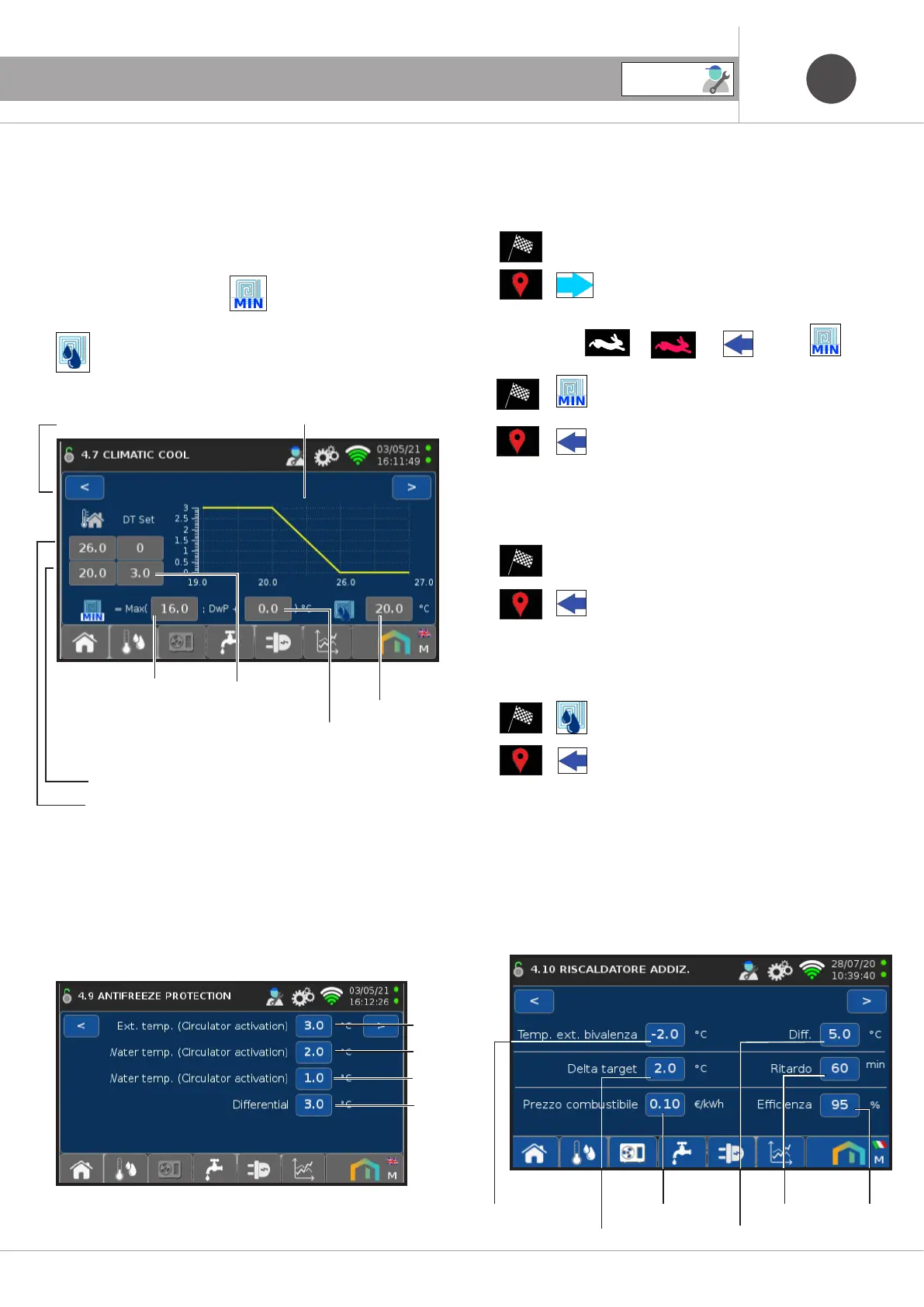

Screen 4.7 defines the climate curve in cooling.
In addition, the minimum temperature of the cold water is set in the
radiant system (Par. C542), to which is added the limitation on the
dew temperature, corrected by the set offset (Par. C543).
The minimum limit (Par. L542)
is therefore the highest of the
two values. Finally, the dehumidifier Target is defined (Par. C553)
.
CASE 1 - Set 1 in normal operation.
•
= daily screed programming + Climate curve.
•
= .
CASE 2 - Set 1 +
or or close to
• = ,
•
= .
CASE 3 - Set 2.
•
= Set 2+ Climate curve (If C405=1)
•
=
CASE 4 - Dehumidifier on call + Thermostat satisfied.
•
=
• = . .
External Temp for DT_Max (Par. C532)
Max external temp for DT=0 (Par. C531)
Par. C542 Maximum correc-
tion DT_max (Par.
C533)
Graphic representation of the
(external temp., DT Set )
Par. 543
Par. 553
Previous screen
Cooling adjustment logic
5.4.2 FROST PROTECTION
Please refer to the manual accompanying the PdC for the mean-
ing of the values that can be set in the following screen.
Par. C801
Par. C802
Par. C803
Par. C804
5.4.3 ADDITIONAL HEATER
Please refer to the manual accompanying the PdC for the mean-
ing of the values that can be set in the following screen.
Par. C903
Par. C901 Par. 904
Par. C905
Par. 902 Par. 906
