2. WARNINGS AND TECHNICAL DATA
16 84 16
38,5 38,5
60
12
12
19
12
• Installation must be carried out by a qualified
person in strict compliance with the electrical dia-
grams and in compliance with current regulations
on electrical systems.
• Maintenance must be carried out by a qualified
person, therefore, inaccessibility to the connection
terminals must be guaranteed without the use of
special tools.
• Shut off the power supply before each mainte-
nance operation
• Do not install near any combustion device (e.g. stove).
• Do not install in places exposed to splashes (e.g. sink)
or steam (e.g. stove).
• Do not install in particularly dusty places.
• Do not obstruct the side openings.
• Do not install in places where chemical agents are
present (e.g. ammonia, sulphur, chlorine, ethylene,
acids).
• Do not install in a position where it is exposed to direct
sunlight.
• Do not touch with wet hands.
• Do not touch the display with tools.

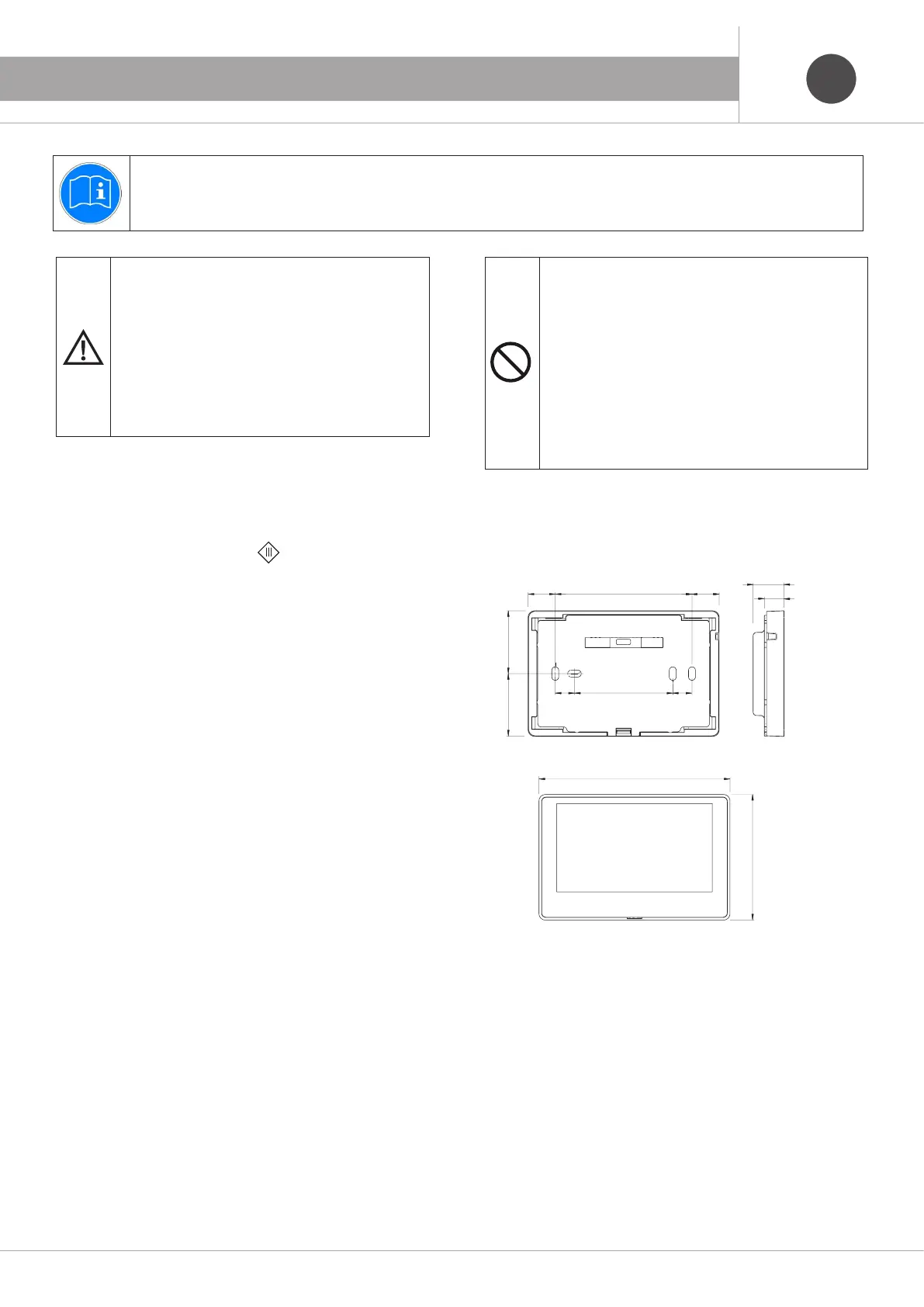

Dimensions
116
77
16 84 16
38,5 38,5
60
12
12
19
12
Read this manual carefully before use and keep it for future reference.
Carefully read the manual supplied with the MIRAI SMI 4.0 heat pump
SAFETY WARNINGS
Compliance with the following Directives:
2014/30/UE; 2014/35/UE; 2014/53/UE; 1999/519/UE; 2012/19/UE; 2006/1907/UE
Febos-Crono
Power supply
Absorption
Connections
Digital inputs
Digital outputs
Built-in sensors
USB
Field work
Weight
Serial bus
Type
Communication
Protocol
Febos-Crono WI-FI
Frequency
Transmission power
Safety protocol
Covered area
24Vdc
3W max
2 20 AWG wired connectors
2 inputs dry contact type
2 OC max 24Vdc 100mA
temperature (0÷40°C) and
humidity (10÷99% RH)
micro B USB connector
0÷50°C
100 g
RS-485
Half duplex
Mod-Bus
2.4 GHz
15 dBm
WPA/WPA2
30m in open space
