3. INSTALLATION
Thermostat function
Relay output N.0.
max 5 A 230 V~
Supply electric 230 V~
Switch magnetothermic In=0,2 A
Contact presence
Contact Window
L N
White
Black Com
Gray
Section cable 0,5 mm
2
(AWG20), shielded
maximum length 20 m
Section cable 0,5 mm
2
(AWG20) braided and shielded
Maximum length 100m
Febos-Power Cod. 07245140
Umidostat function
Relay output N.0.
max 5 A 230 V~

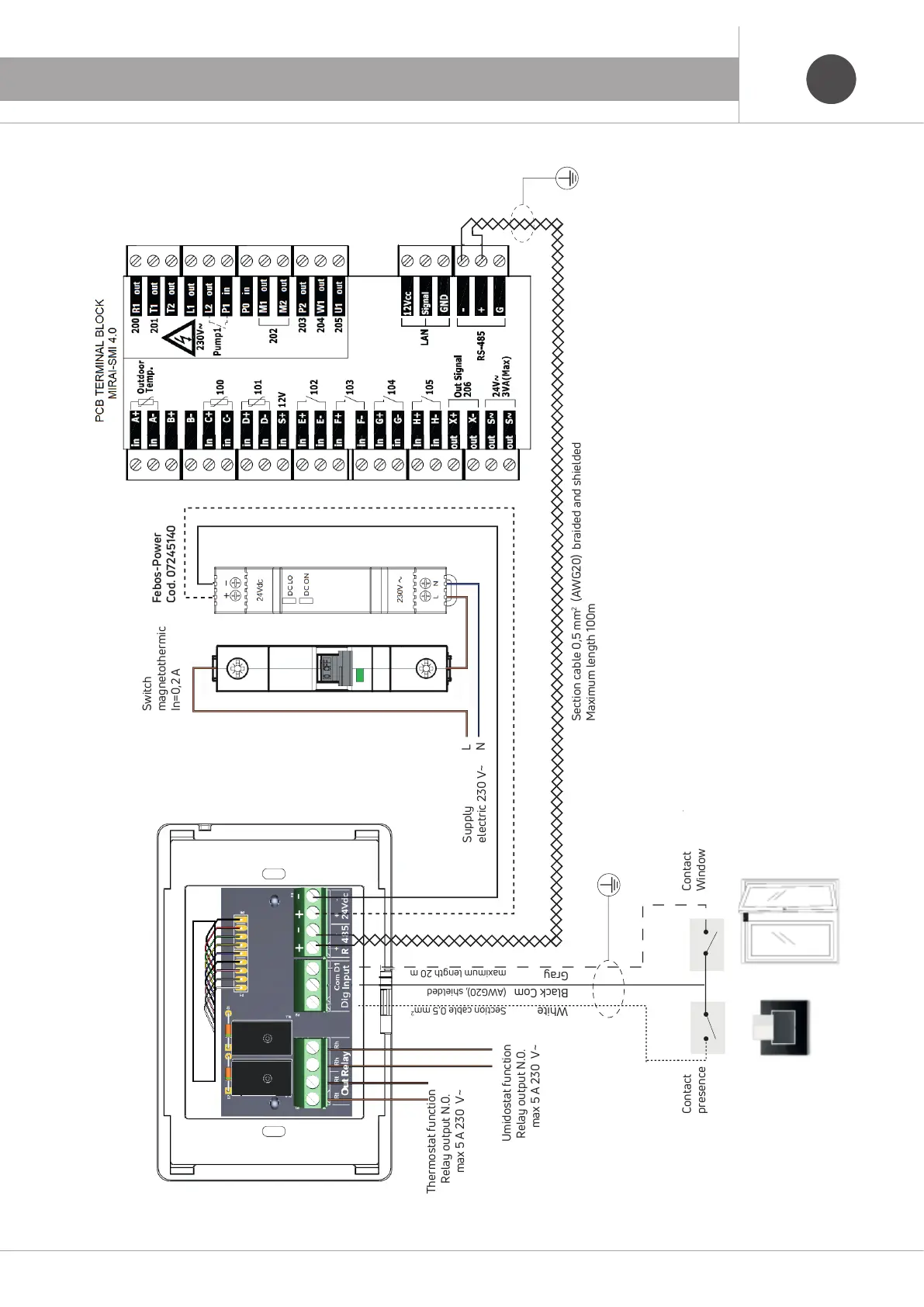

3.1 Electrical connection diagramFEBOS--CRONO-TBR (Cod. 07245103, Cod. 07245113)
NB: It is absolutely forbidden to lay signal cables (RS-485) together with power cables with voltages >50 V. The Febos-Crono power cable must be dimensioned in such a way as to guarantee a mini- mum power supply voltage of 18Vdc.
