emmeti FEBOS - CRONO IMX Basic / WiFi - 3.2 FEBOS-CRONO Electrical Connection with Relays

TABLE OF CONTENTS
ENEN
8
3. INSTALLATION
Humidistat function Relay output N.0. max 5 A 230 ~
Humidistat function Relay output N.0. max 5 A 230 ~
Supply electric 230V ~
Switch magnetothermic In=0,2 A
Section cable 0,5 mm
2
(AWG20), shielded maximum length 20 m
Section cable 0,5 mm
2
(AWG20) braided and shielded
Maximum length 100m
Red + 24v dc
Black - Gnd
YELLOW RS + GREEN RS -
Window contact
Contact presence
L N
Cable section 0.5 mm
2
lungh. max 100 m
White
Grey
Rose
Black
Violet
Yellow
Green
Red
Black
Cod. 07245140 Febos-Power
Cod. 07245150 Febos-Relay

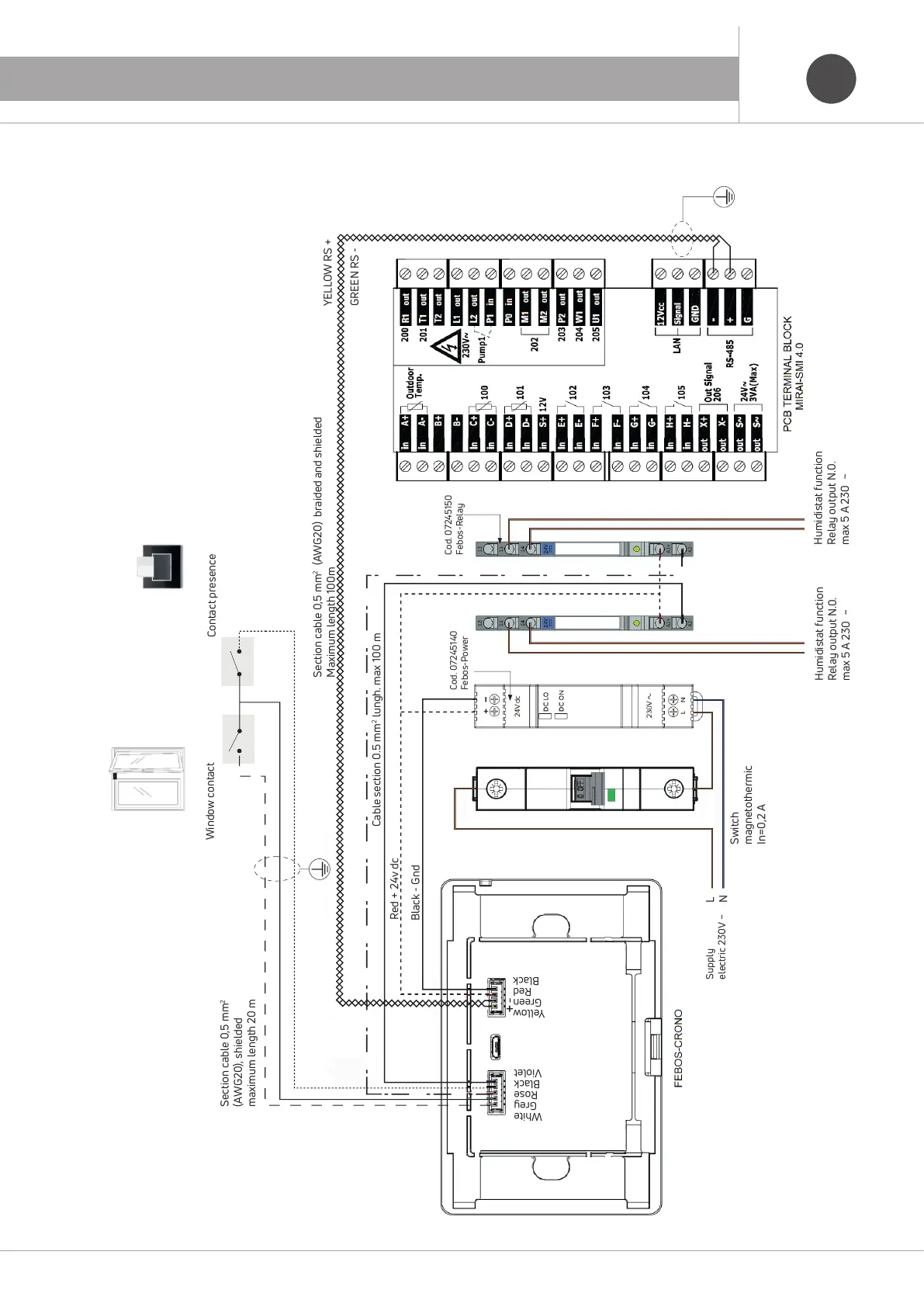

3.2 FEBOS-CRONO electrical connection diagram with external relays (Cod. 07245101, Cod. 07245111)
NB: It is absolutely forbidden to lay signal cables (RS-485) together with power cables with voltages >50 V. The Febos-Crono power cable must be dimensioned in such a way as to guarantee a minimum power supply voltage of 18VdC.
