Select User’s Manual
20
System Components Operation

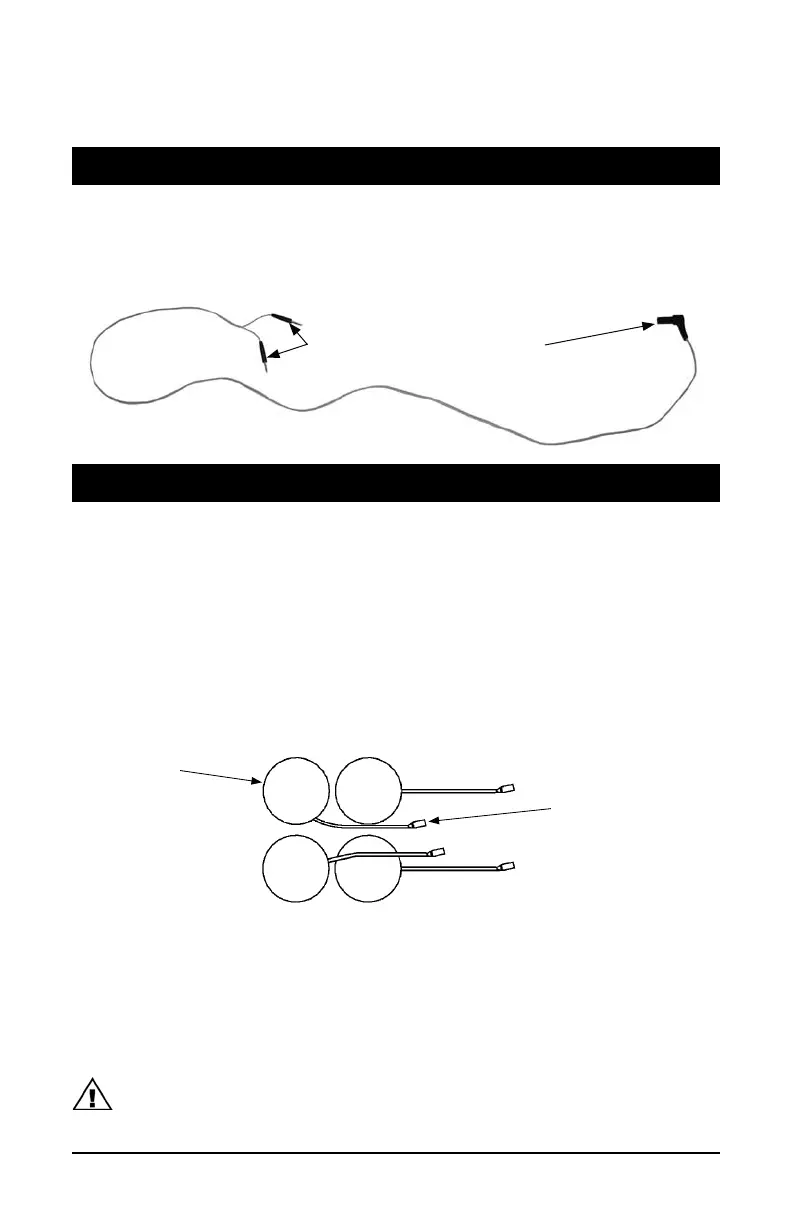

Lead Wires
Lead wires connect the device to the electrodes. They carry the electrical pulses from the
device to the electrodes on your skin. You must have an electrode on both the pins for the
device to work properly.
Electrodes
There are several types and sizes of electrodes, and each type has different characteristics.
The Select usually includes two (2) packs of four (4) 2-inch round or 2-inch square,
reusable, self-adhering electrodes, as shown below. Each electrode has a connector for
inserting a lead wire pin and an electrical-conductive adhesive pad that attaches to your
skin. These electrodes are flexible and conform to the skin very well. They can be reused
10 to 15 times, depending on skin type and electrode care.
Inspect your electrodes before every use. Replace electrodes as needed. If you need
additional electrodes, contact Customer Service at 800-328-2536.
To use these electrodes:
1. Attach the lead wire to the electrode.
2. Remove the liner from the electrode and store in plastic bag.
3. Apply the electrode to the prescribed skin area.
4. Replace electrodes that do not adhere properly to the skin
or that fail to deliver proper stimulation.
CAUTION
: Do not pull on the electrode wire. Doing so may damage the
wire and electrode.
Plug
Pins
Connector
for inserting
lead wire pin
Adhesive
pad
Overview
CAUTION:
United States Federal Law restricts this device to sale by or on
the order of a physician or licensed practitioner.
This section includes the following instructions for performing a therapy session. Perform
these instructions in the order they are presented:
• Installing the Batteries
• Connecting the Lead Wires to the Electrodes
• Connecting the Lead Wires to the Device
• Preparing the Skin for a Therapy Session
• Applying the Electrodes to the Skin
• Tur n on the Device
• Timer Function
• Select the Treatment Settings
• Intensity Lockout Feature
• Quick Select Feature
• Program Option Control
• Begin Treatment
• Record Treatment
• End Treatment
• Data Retrieval
This section also includes the following instructions:
• Changing the Batteries
• Charging the Batteries
• Maintenance
• Cleaning
• Storage
• Disposal
Before operating the Select system, read the previous sections of this manual that describe
the system and its features. To gain the maximum benefit from your Select system, carefully
follow your clinician’s instructions and use the system for only the specific symptoms
detailed by your clinician. If you have any questions or problems, or experience any new
symptoms or painful areas, contact your physician, therapist, or clinician for appropriate
diagnosis and treatment. They are most
familiar with your specific situation and are the best
source of additional guidance.
