EmpirBus Connect-50 User Manual

EmpirBus Connect-50 User manual Ver. 1.33 4/14
5. Installation!
5.1!System!limitations!
Possible combination with Connect-50
• Max 2pcs Connect-50 can be connected in the same network
• Connect-50 in “master mode” can handle maximum up to 4 bus ID.
• Maximum library component in logic schema whit Connect-50 in master mode, 500pcs.
5.2!Mounting!
The unit should be mounted on a flat vertical surface with four screws (not included), with the
orientation as shown in figure 5.1.
!
59
27
229
190
8,5
4,5
162
41
[mm] (Drawing is not to scale.)

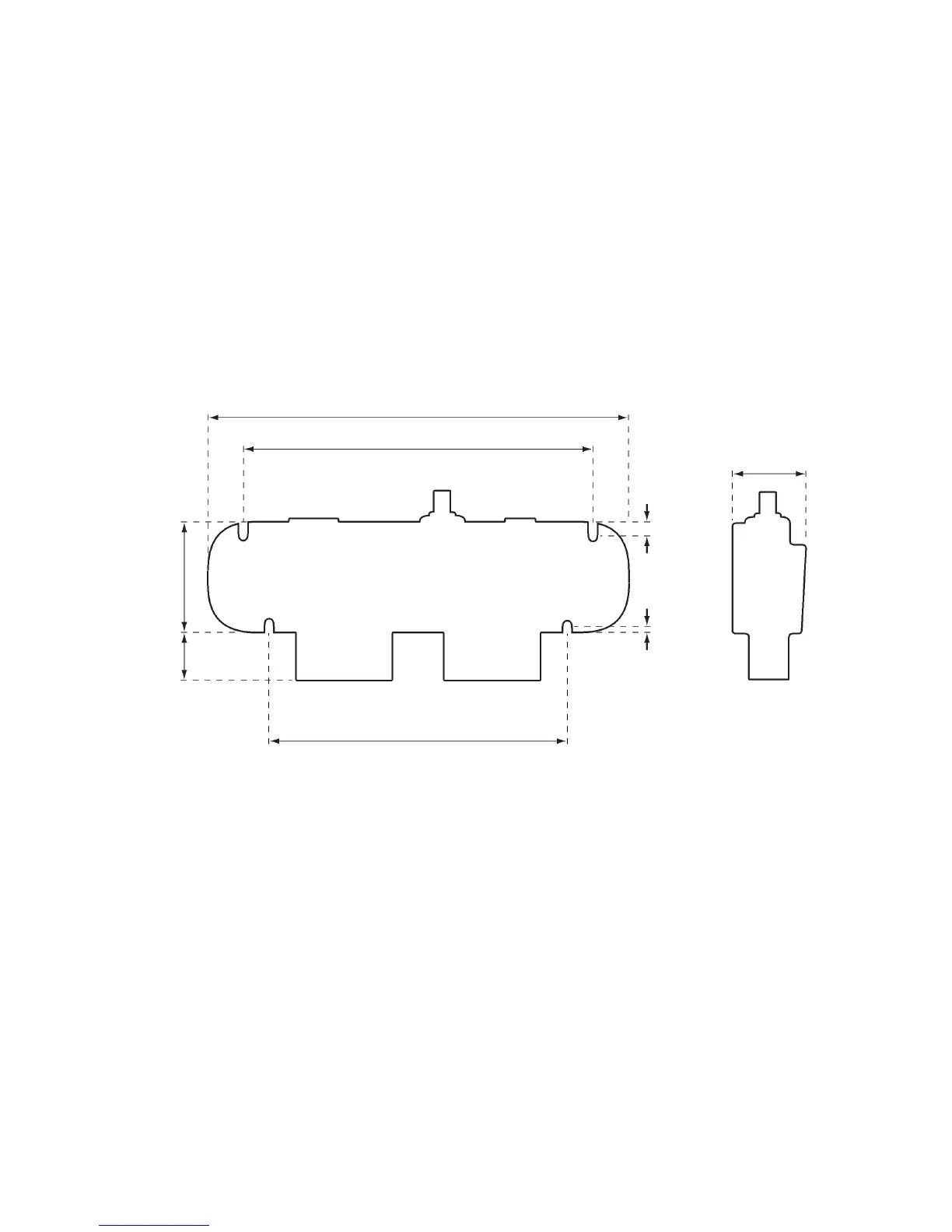

Figure 5.1: Dimensions
