5.2!Connectors!
The bus connector is an NMEA2000 compatible male Micro-C 5 pin connector. It is not recommended
to connect a T-connector directly to the unit; a drop cable should be between the main bus and the
unit.
The consumers and inputs are connected via Molex MX150L connectors. Only use correct crimp and
extractor tools when assembling the connector. Unused pins in the connector should be plugged
with circuit plugs in order to maintain IP65.
5.3!Power!feed!
The power is supplied on the two M6 bolts with positive on the left (marked with +) and negative on
the right (marked with -). The total max output of a DCM is 100A.
!
59
27
229
190
8,5
4,5
162
41

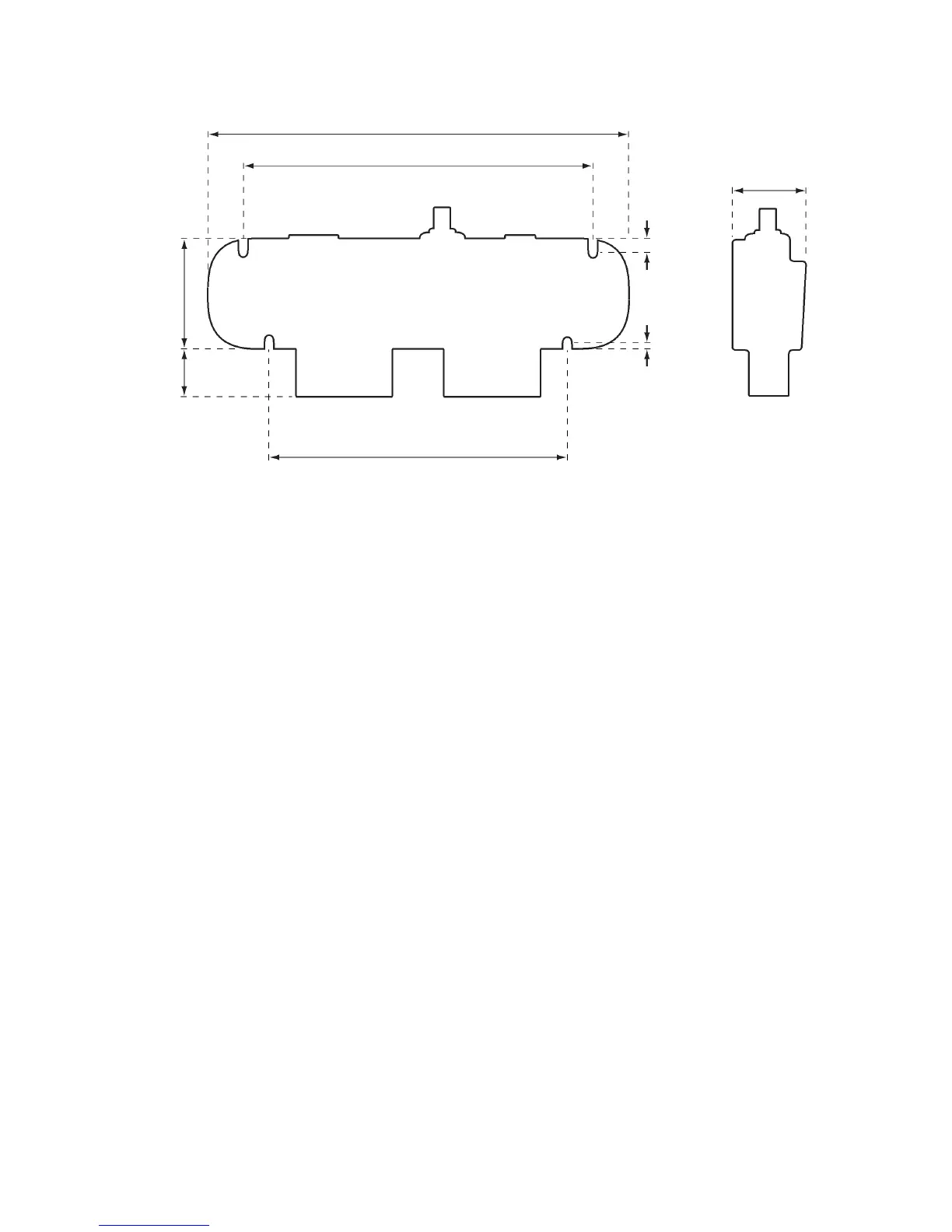

[mm] (Drawing is not to scale.)
Figure 5.1: Dimensions
