EmpirBus NXT DCM User Manual

EmpirBus NXT DCM User manual Ver 1.53 4/15
6. Circuits!
The usage of a channel is determined by the model, option configuration and programming. The
channels are numbered directly on the unit (1 through 16). The channels (inputs/outputs) are on the
upper row of pins and the lower row is minus. See figure 6.1. The Molex MX150L connectors
connector accepts cable dimensions up to 2,5 mm
2
.
6.1!Inputs!
Any channel on a DCM can be configured as digital or analog input. If options support analog inputs
or
6.1.1!Digital!input!–!negative!
Connect the switch directly between minus and the desired channel.
!

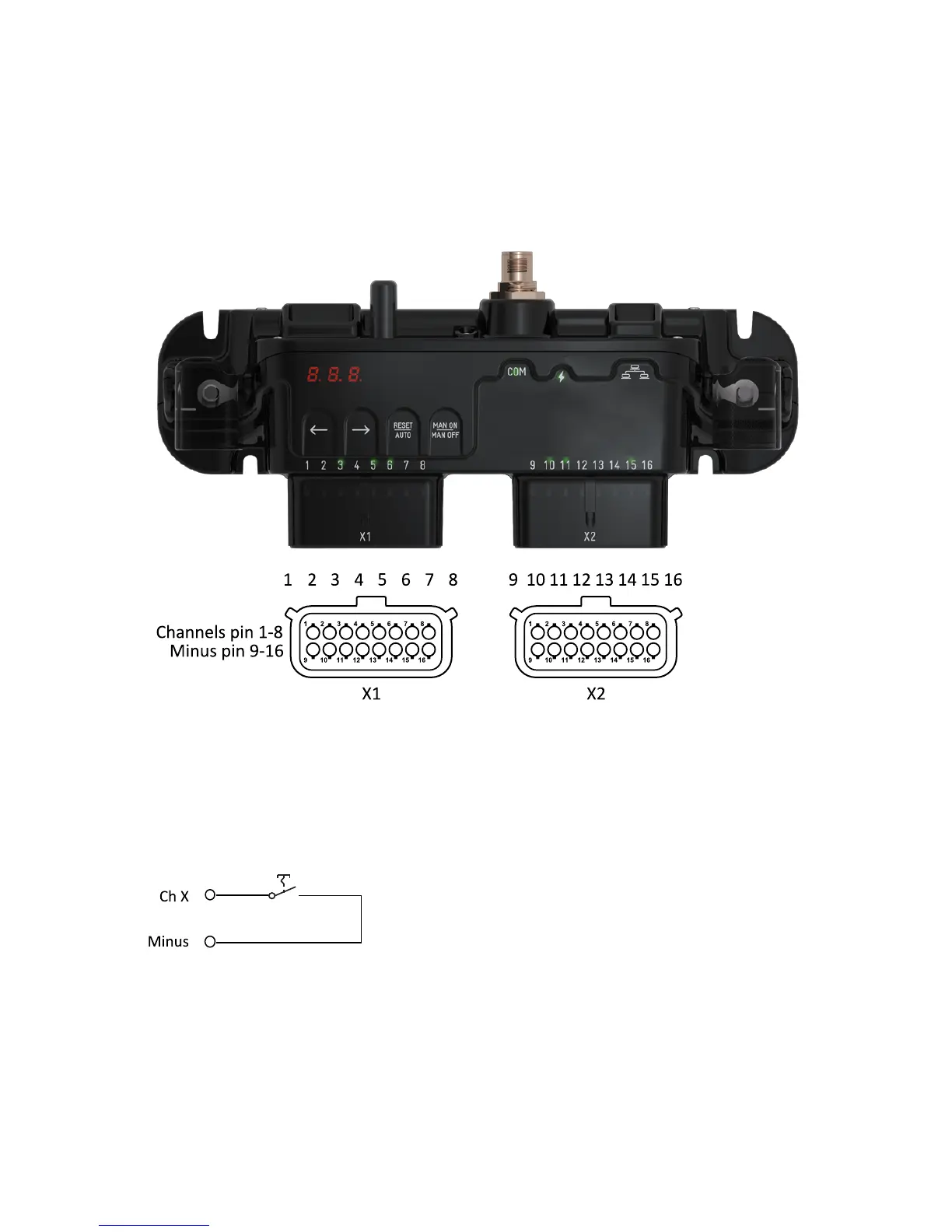

Figure 6.1: DCM pinout
