14
C. Connecting with other video source
ME1 can play, time-shift and record the input video from other device, such as
VCR, Set top box, DVD player, and Camcorder. ME1 can support both NTSC
and PAL input video signal from AV IN jack.
Plug the black mini plug of the supplied composite AV extension cable into the
AV IN
jack on ME1. Use the supplied composite AV cable to connect the AV
extension cable and audio/video output port on other device. Be sure to
match the color of the plug with color of the jack (yellow, white, and red) on the
device.

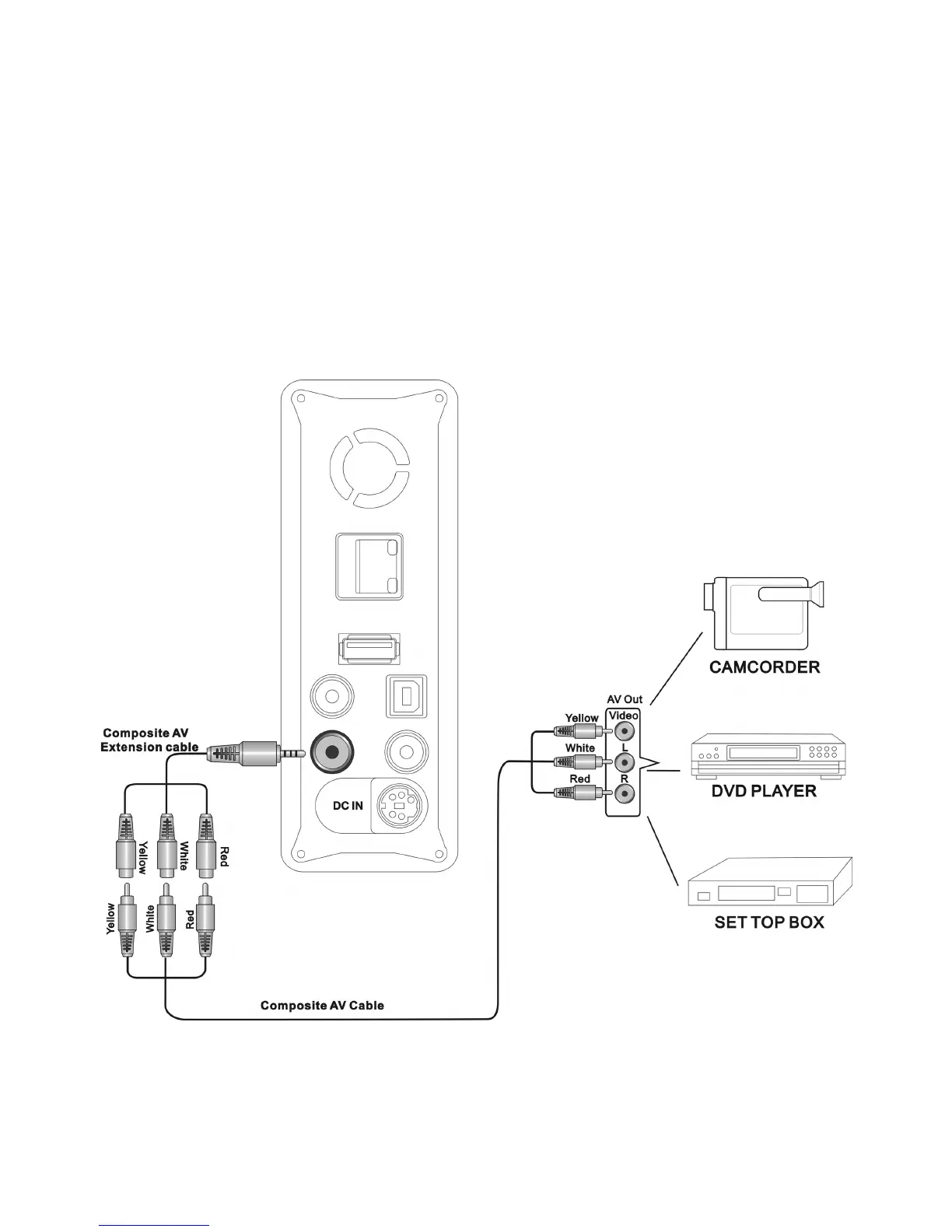

Figure
Composite AV IN connection
