EMRAX 348 - Figure 7: EMRAX 228 Drawing; Figure 8: EMRAX 228 (IP21)

User’s Manual for Advanced Axial Flux Synchronous Motors and Generators
www.emrax.com Version 4.5 / January 2017 9

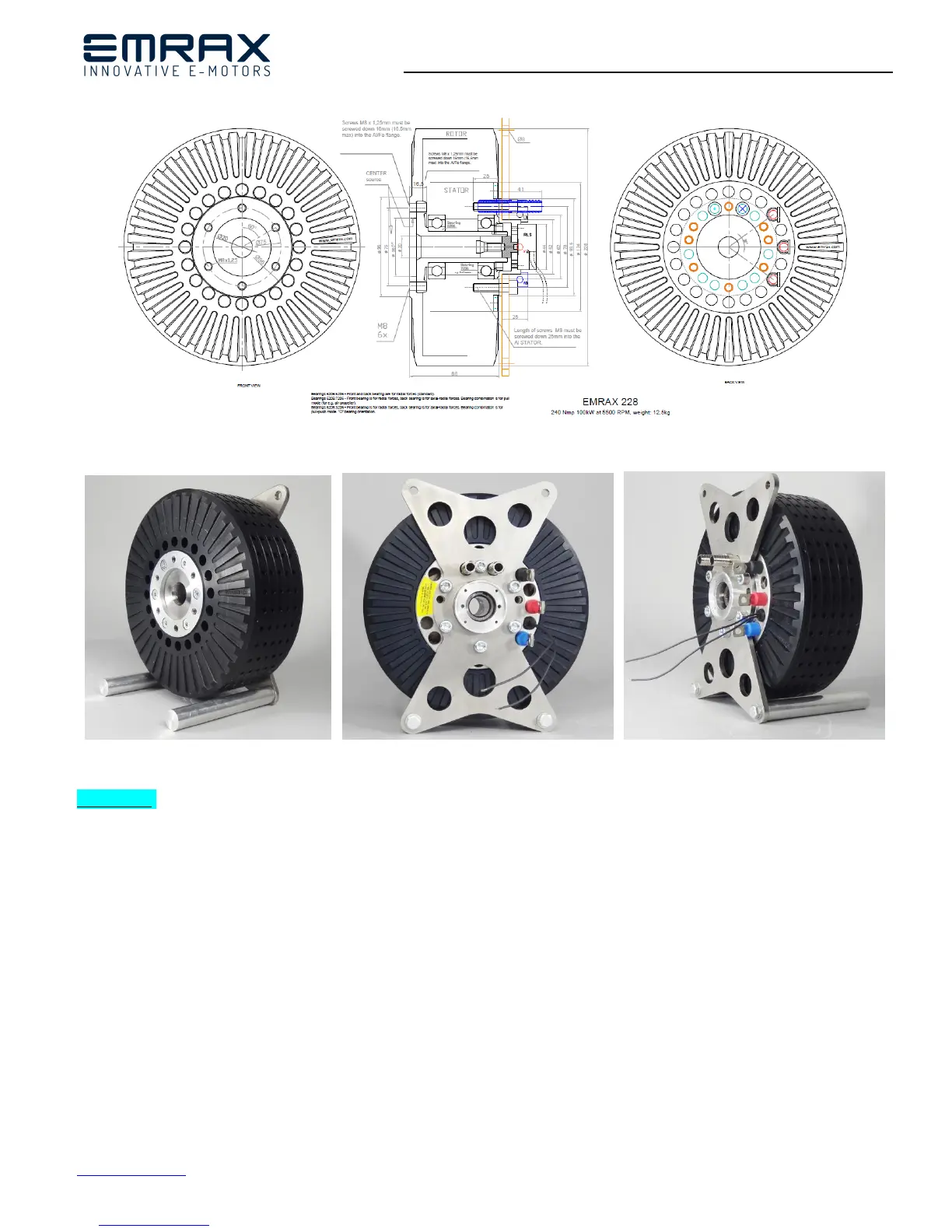

Figure 7: EMRAX 228 drawing
Figure 8: EMRAX 228 (IP21)
EMRAX 268: In production.
- High Voltage (Air Cooled / Liquid Cooled (IP65) / Combined Cooled (IP21)
- Medium Voltage (Air Cooled / Liquid Cooled (IP65) / Combined Cooled (IP21)
- Low Voltage (Air Cooled / Liquid Cooled (IP65) / Combined Cooled (IP21)
*Customisations: EMRAX 268 Very High Mechanical Loads (VHML)
