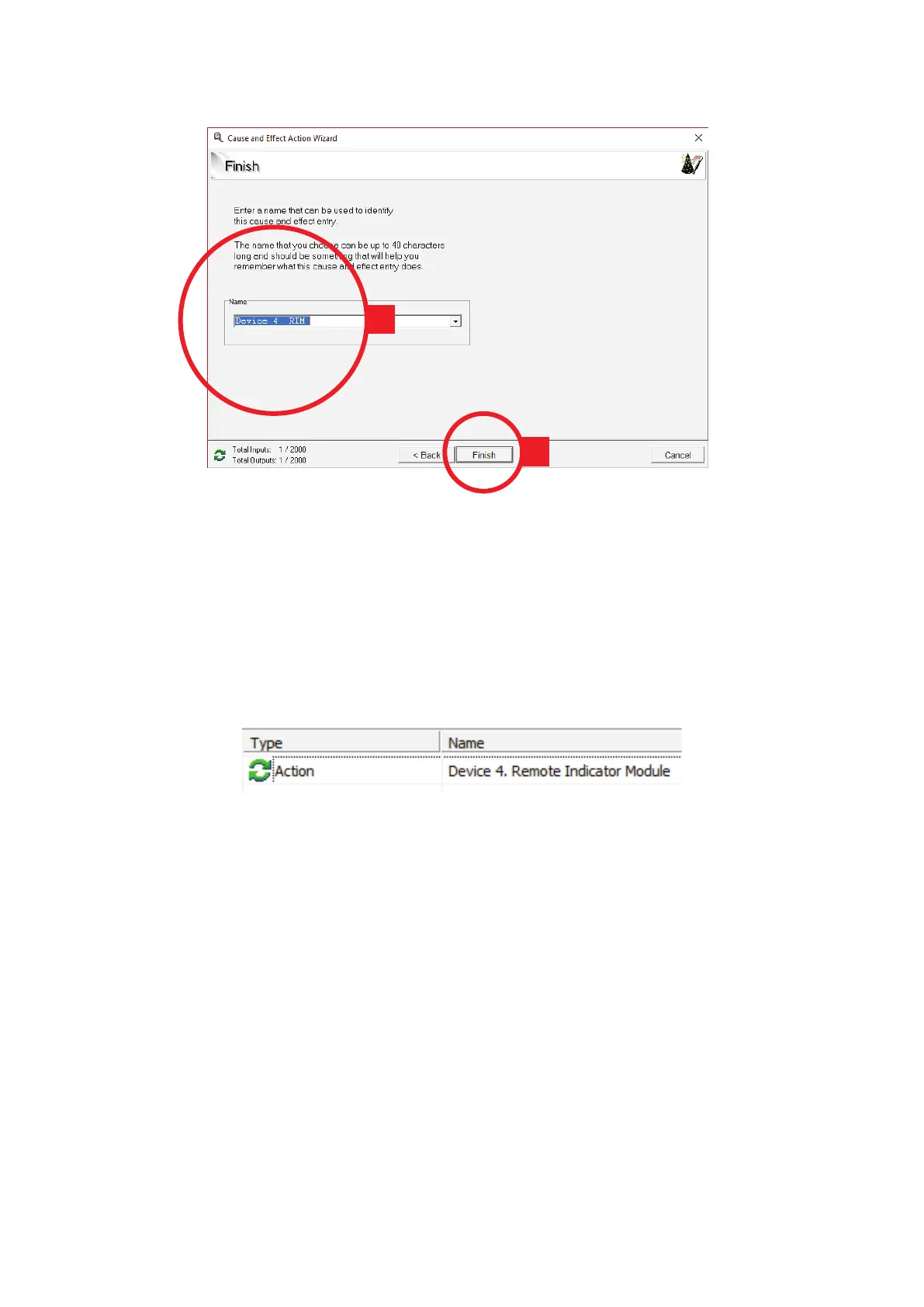

The display will change and allow a text description to be allocated for the cause and eect rule
written. An example is shown below.
Enter the required text to identify the rule and click the ‘Finish’ button once completed.
The rules for the system will be displayed under the cause and eect icon on the Loop Explorer
front display. They will be individually identiable via the text description allocated. An example
is shown below.
Repeat the above programming for each of the Wireless RIMs on the system which are required
to follow individual device activations.
