Adding a Wireless RIM to the Control Panel
The Wireless RIMs are added to the Loop Explorer conguration le as ‘Input/Output Wireless’
devices.

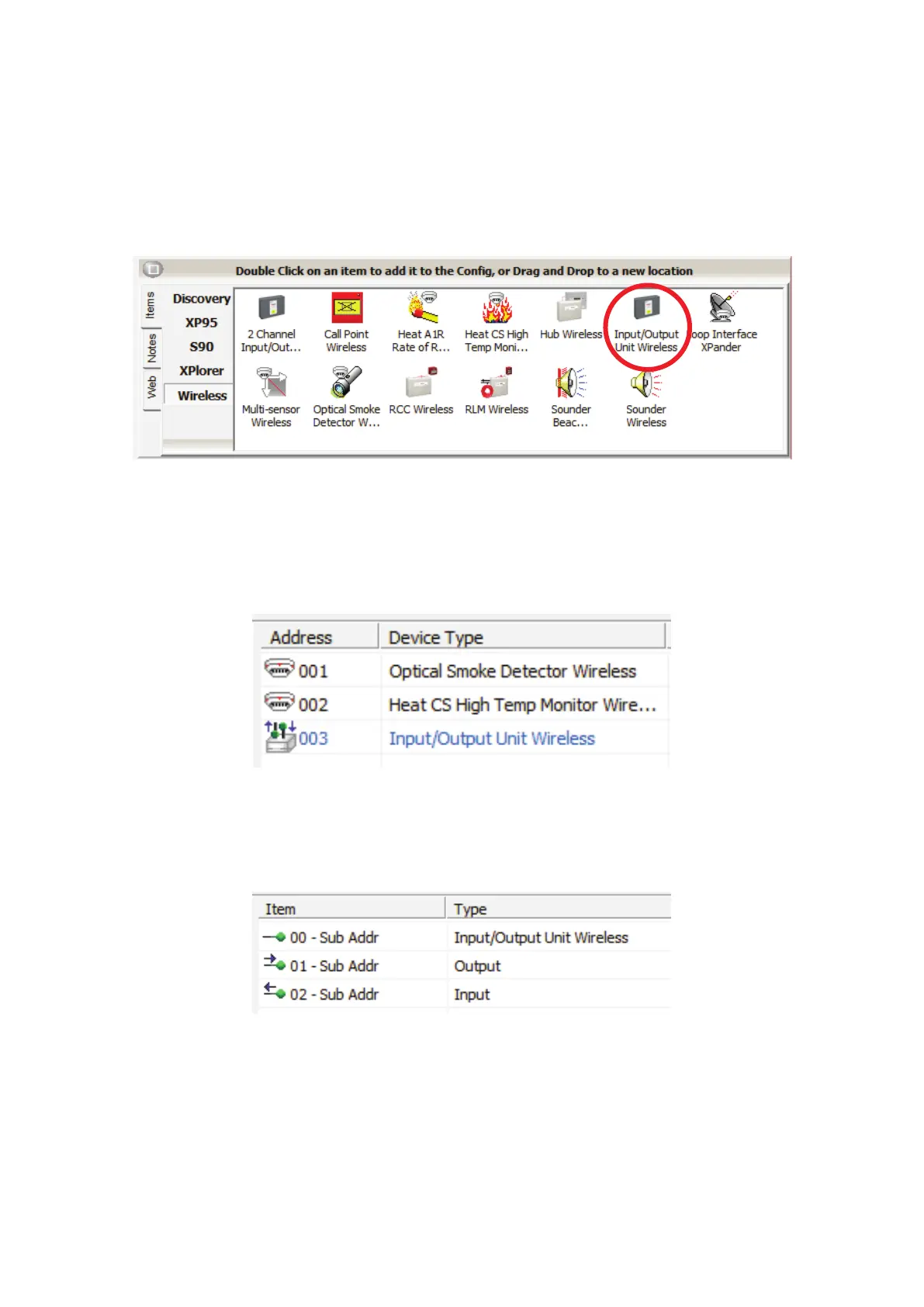

The selection of available wireless devices is shown below with the ‘Input/Output Wireless’ device
selected for the RIM highlighted.
Double click on the ‘Input/Output Wireless’ icon, shown above, to add the RIM to the setup. An
example is shown below:
Double click on the ‘Input/Output Unit Wireless’ icon shown above to expand the device to show
the input and output, as shown below:
