Linking a zone to a RIM

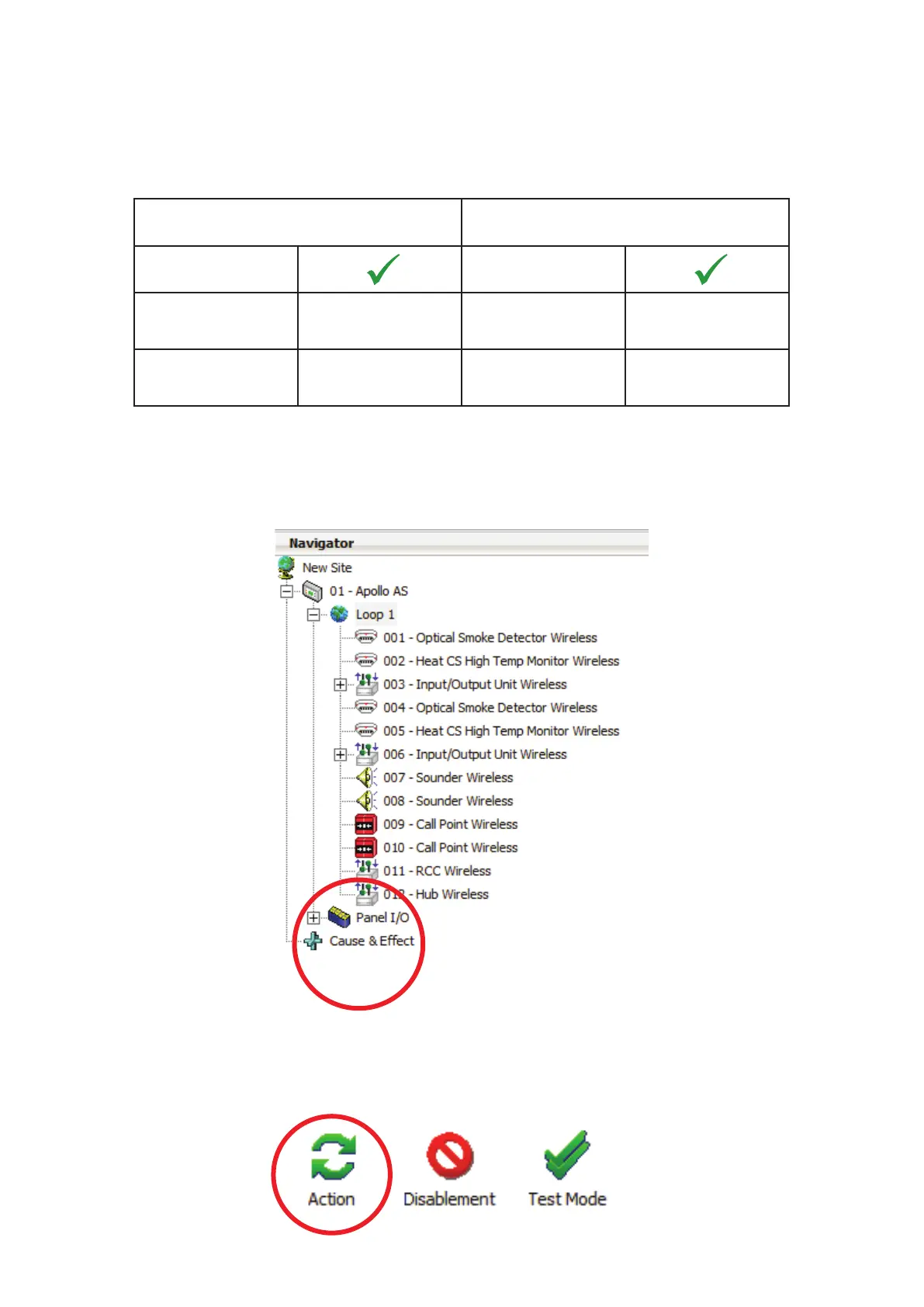

An example is shown below for linking a zone of devices to an individual RIM. In this example,
zone 1 is used.
Click on the ‘Cause & Eect’ icon, shown below:
Double-click on the ‘Action’ icon, shown below:
Fire alarm in RIM allocated to
Zone 1
Zone 2
Zone 3, etc.
Zone 1
Zone 2
Zone 3, etc.
