EL – Owner’s Manual – Rev.00 – September 2022 20

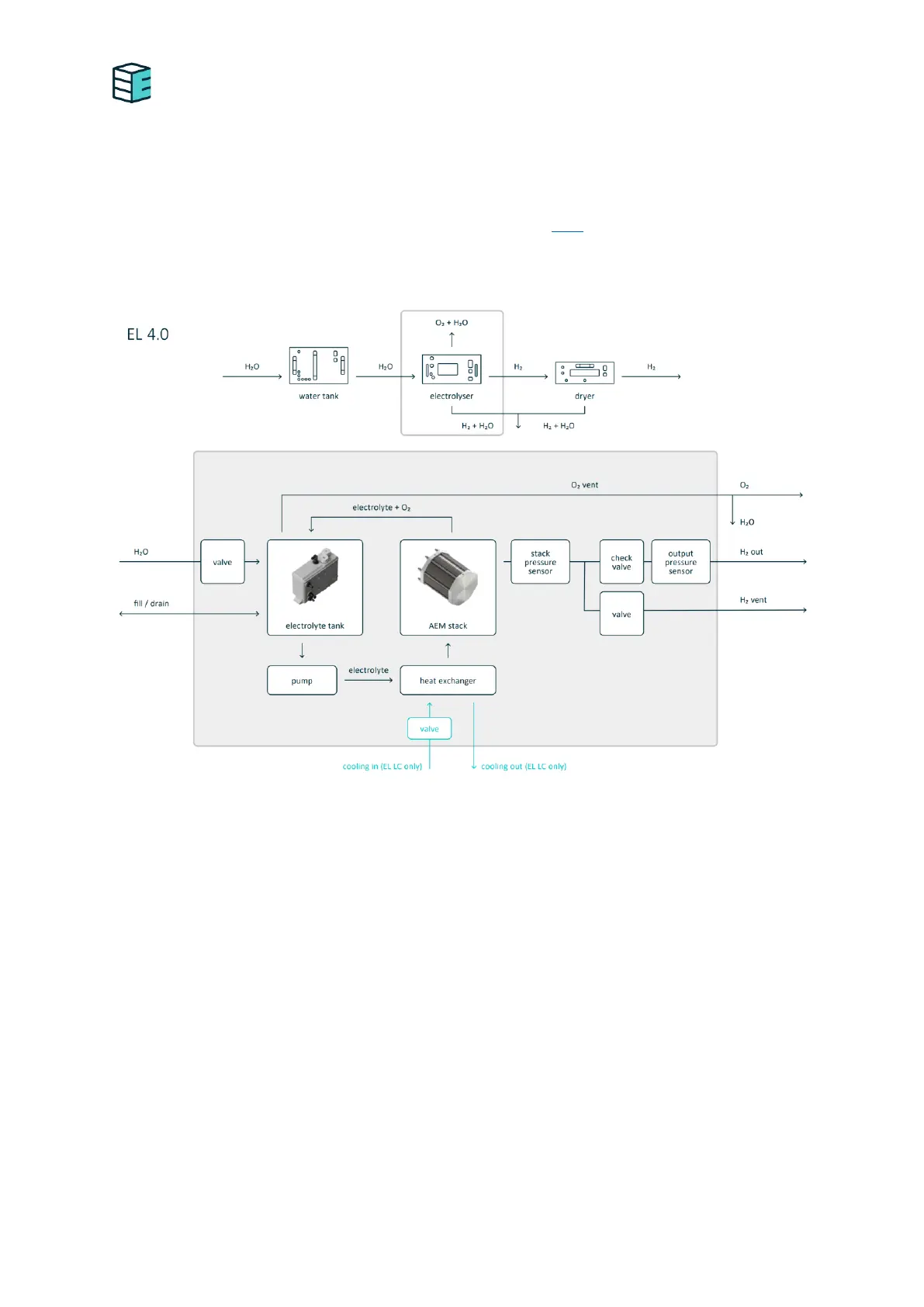

4.4 PIPING AND INSTRUMENTATION DIAGRAM (P&ID)
The following diagram shows internal components of the device as well as how it interacts with the
Enapter Dryer and the Enapter Water Tank. It is also available here. Please note that the diagram is
slightly simplified to be better understandable and to protect Enapter’s intellectual property.
P&ID of the EL4.0
4.5 INSTRUCTIONS FOR CONNECTING STAINLESS STEEL PIPES
The stainless steel connections need tube fittings with ¼” outside diameter for the H
2
pipes and ⅜”
outside diameter for the O
2
pipe. The outlets to be connected according to these instructions are
labelled “H
2
OUT” and “H
2
VENT” as well as “O
2
VENT” on the front panel of the device.
Follow the instructions of the fittings manufacturer carefully to install leak tight connections.
Always check each connection for leaks! Metal to metal fittings can be used but remounting them is
not recommended due to possible leakages. For more information, please refer to Appendix I below.
