HARDWARE INSTALLATION
Front Panel

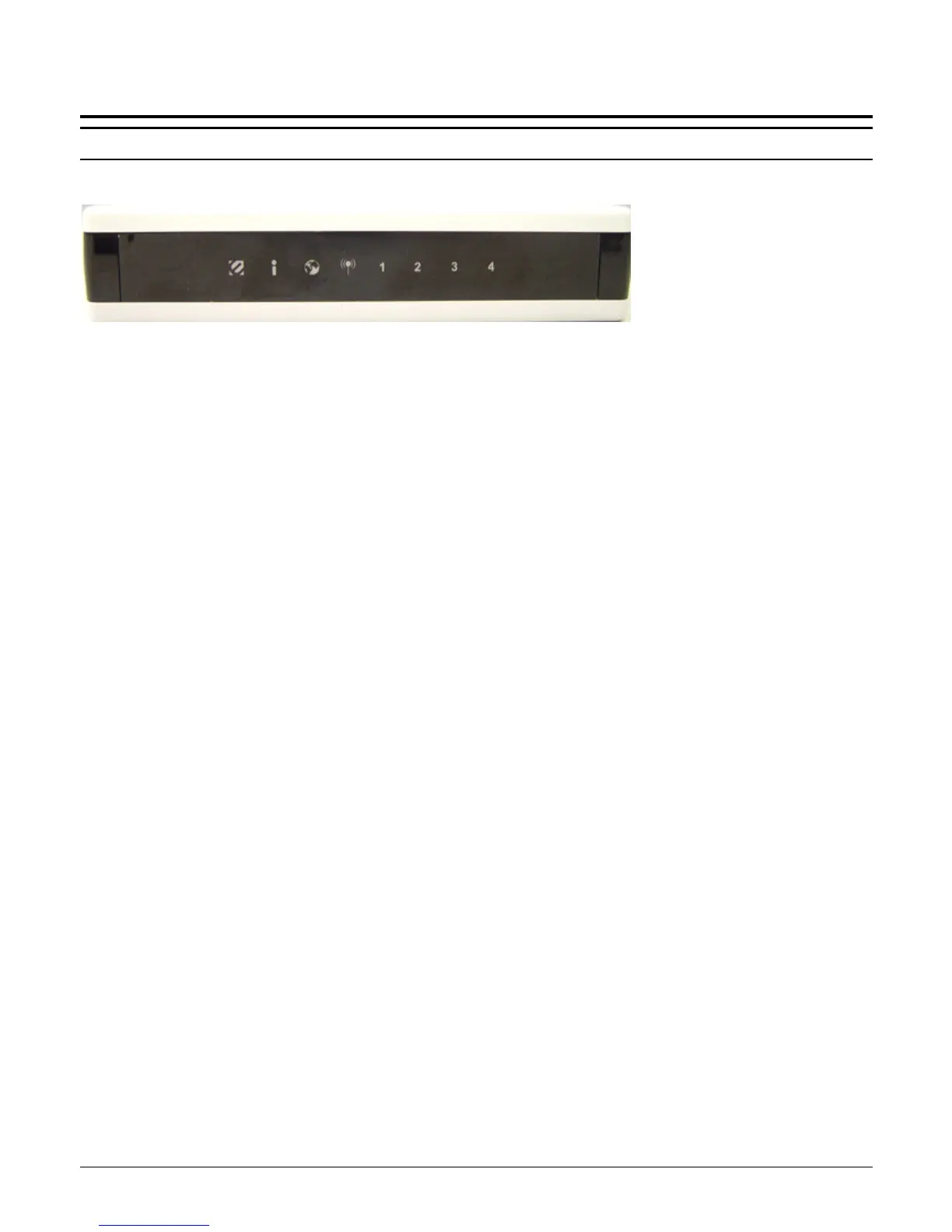

The figure below shows the front panel of ENCORE 802.11n Wireless Router.
SYSTEM
(i icon)
This indicator blinking green means the WLAN Router is working successfully.
Otherwise, this indicator always on or off means the function of the WLAN Router
has failed.
WAN (Link/ACT)
(Globe icon)
The indicators light green when the WAN port is connected to a xDSL/Cable
modem successfully.
The indicators blink green while the WAN port was transmitting or receiving data
from the xDSL/Cable modem.
WLAN (ACT)
(Antenna icon)
This indicator lights green when there are wireless devices connected and
transmitting data to the WLAN Router.
LAN (Link/ACT)
These indicators light green when the LAN ports were connected successfully.
These indicators blinking green while the LAN ports were accessing data.
