Rear Panel

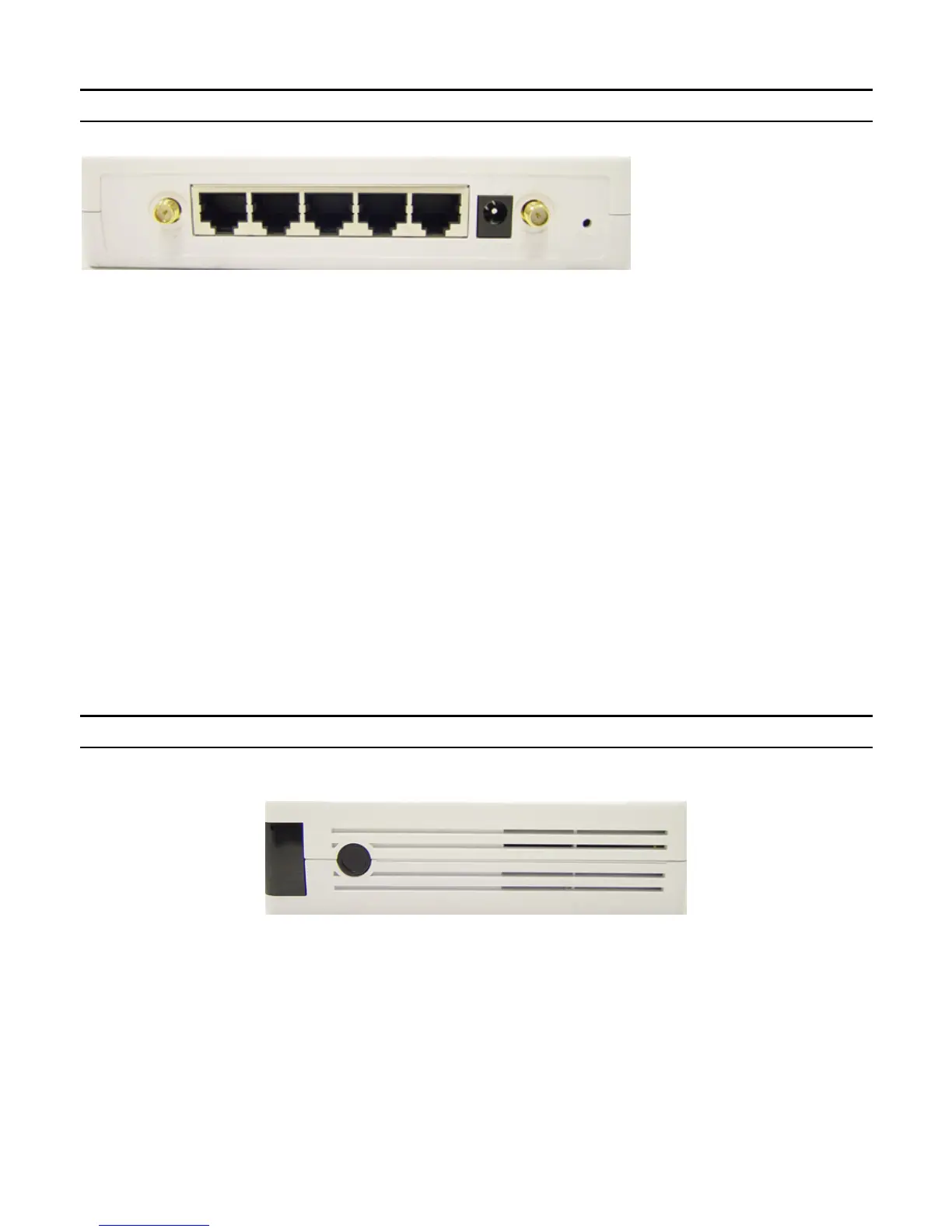

The figure below shows the rear panel of ENCORE 802.11n Wireless Router.
Antenna
There is two 2dBi gain antennas on the rear panel for wireless connection.
LAN (1-4)
Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either 10Mbps or
100Mbps Ethernet connections.
WAN
In the four port broadband Router, there is an RJ-45 10/100Mbps Auto-MDIX port
for the WAN that connects to the xDSL/Cable modem for Internet connectivity.
POWER
Plug the power adapter to this power jack
RESET
Use a pin-shaped item to push to reset this device to factory default settings. It will
be a useful tool when the manager forgot the password to login, and needs to
restore the device back to default settings.
Side Panel
The figure below shows the side panel of ENCORE 802.11n Wireless Router.
Side Panel
WPS
Push this button to execute the Wi-Fi Protected Setup process.
- 6 -
