Status
The Status Function shows the System, Wireless Configuration and TCP/IP
Configuration status and some settings of the Access Point.

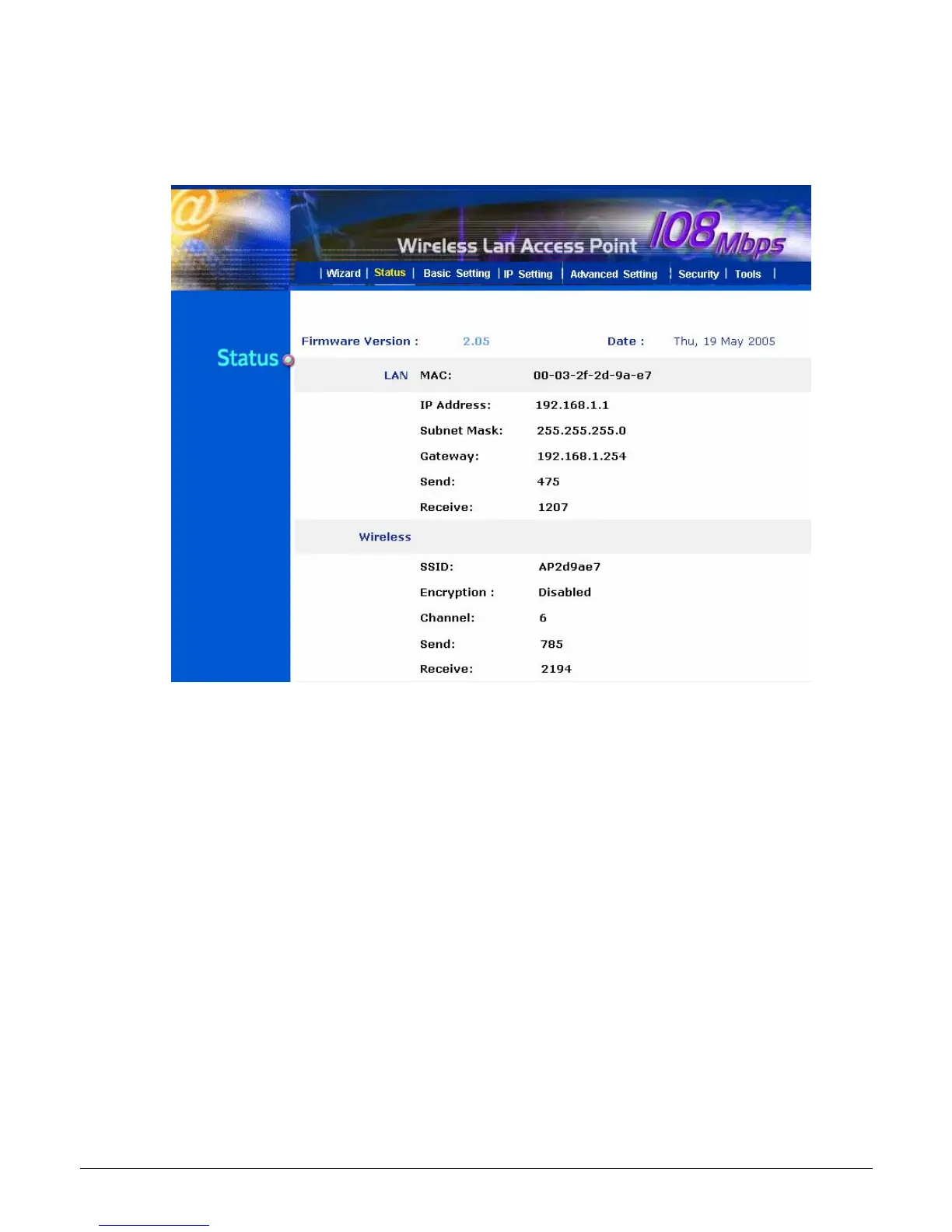

Figure 12. Status
Firmware Version: Shows the current firmware version.
LAN: Shows the Mac address, IP address (default: 192.168.1.1), Subnet Mask,
Gateway Address. The current LAN traffic calculated in terms of number of
packets sent and received by AP through wired connection is also displayed.
Wireless: Shows the Mac address, current ESSID, the status of Encryption
Function (Enable or Disable), the current using channel. The current wireless
traffic calculated in terms of number of packets sent and received by AP through
wireless communication is also displayed.
10
