IP Setting
This page allows you to configure the IP and DHCP settings of the Access Point.

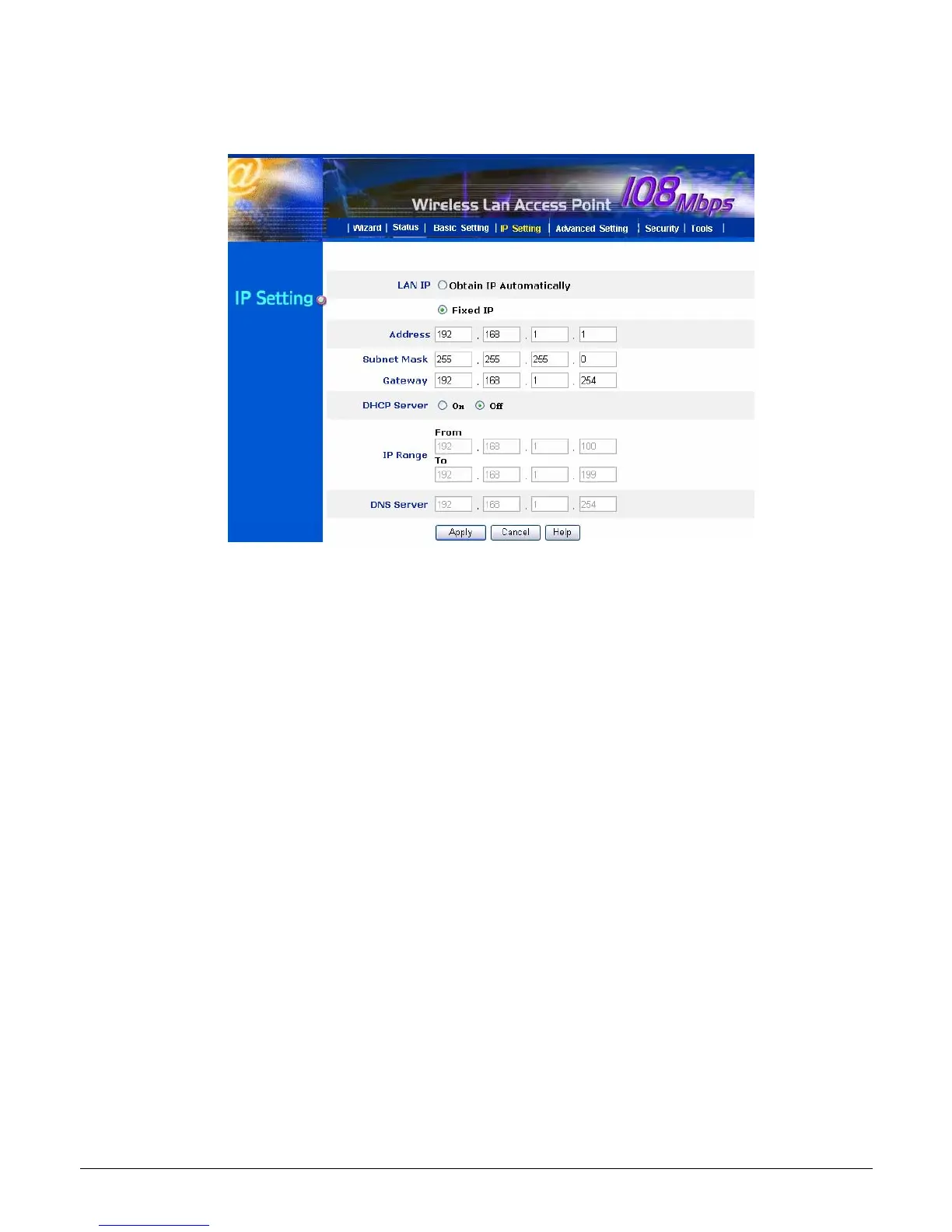

Figure 16. IP Setting
The default IP address of this access point is 192.168.1.1 with the subnet mask
of 255.255.255.0. You can type in other values for IP Address, Subnet Mask
and Gateway and click “Apply” button for the changes to be effective.
You can also set the Access Point to obtain the IP from a DHCP server, but it is
not recommended. Select the option “Obtain IP Automatically” and click
“Apply” button for the changes to be effective.
DHCP Server: It is not recommended to enable the DHCP Server if you have a
DHCP server running in your LAN network because it probably will cause
possible the conflict of IP assignment. Enable the DHCP server function by
selecting the option “On”, and enter the IP range.
Click “Apply” for the changes to be effective.
13
