HARDWARE INSTALATION
LED Indicator

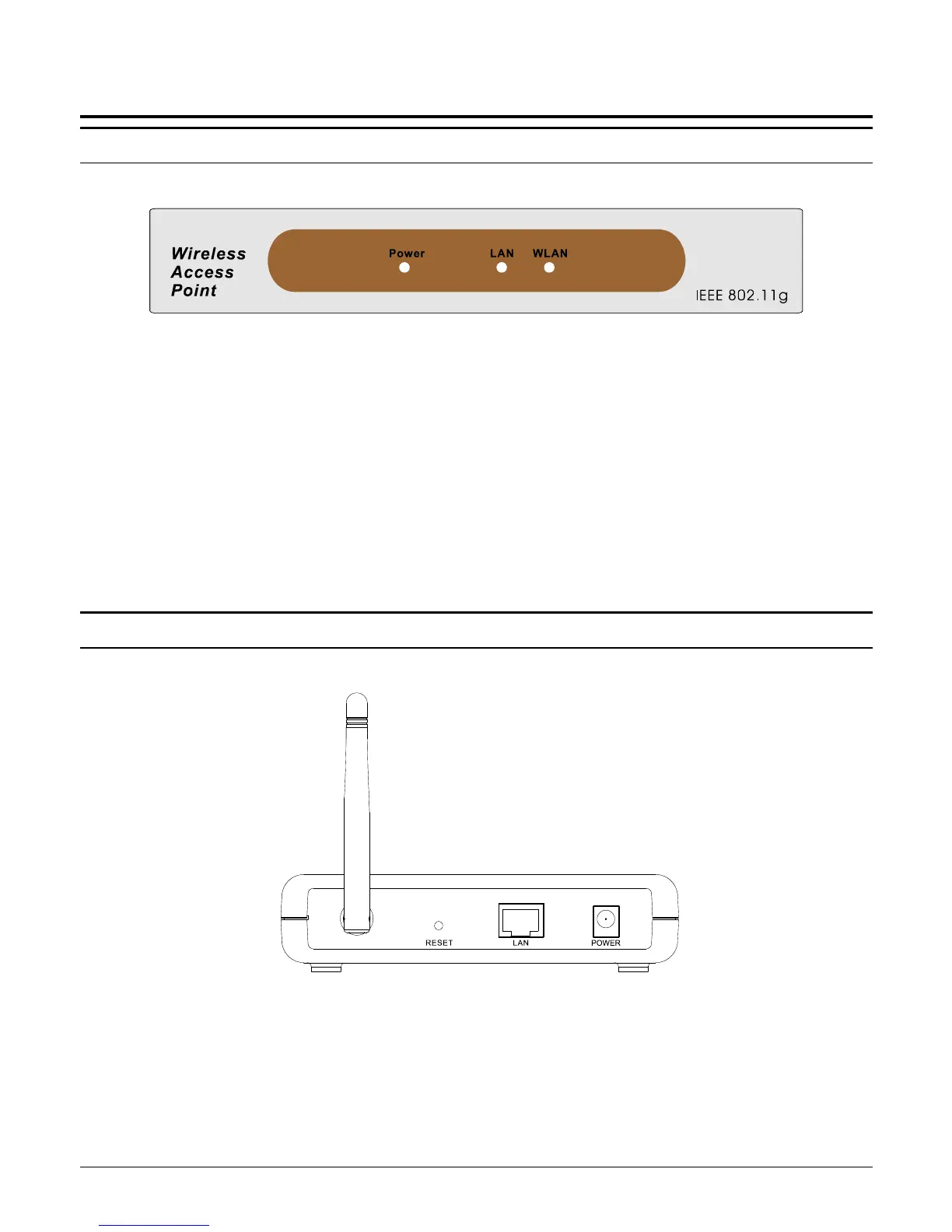

The figure below shows the LED Indicator of the Wireless LAN Access Point.
Figure 1. Font panel
Power
This indicator lights green when the Access Point receives power. Otherwise, it
turns off.
LAN (Link/ACT)
The indicator lights green when the LAN port is connected to Ethernet network, the
indicator blinks green while transmitting or receiving data on the Ethernet network.
WLAN (ACT)
The indicator blinks green when the wireless station activity to the AP.
Rear Panel
The figure below shows the rear panel of the Access Point
Figure 2. Real panel
