Page 7
Electrical Requirements
IMPORTANT
: Fill the
exercise system
with water before turning on the
power.
Your SWIMCROSS
exercise system
has been carefully designed to give
you maximum safety against electrical shock. Connecting the
exercise
system
to an improperly wired circuit will negate many of the
exercise
system
’s safety features. Improper wiring may also cause electrocution,
risk of fire, and other risks of injuries. Please read and follow the electrical
installation requirements and instructions completely!
SINGLE PHASE WIRING
220-240 VOLT PERMANENTLY CONNECTED
SWIMCROSS
exercise system
s must be wired in accordance with all
applicable local electrical codes. All electrical work should be done by an
experienced, licensed electrician. We recommend the use of appropriate
electrical conduit, fittings, and wire for all circuits.

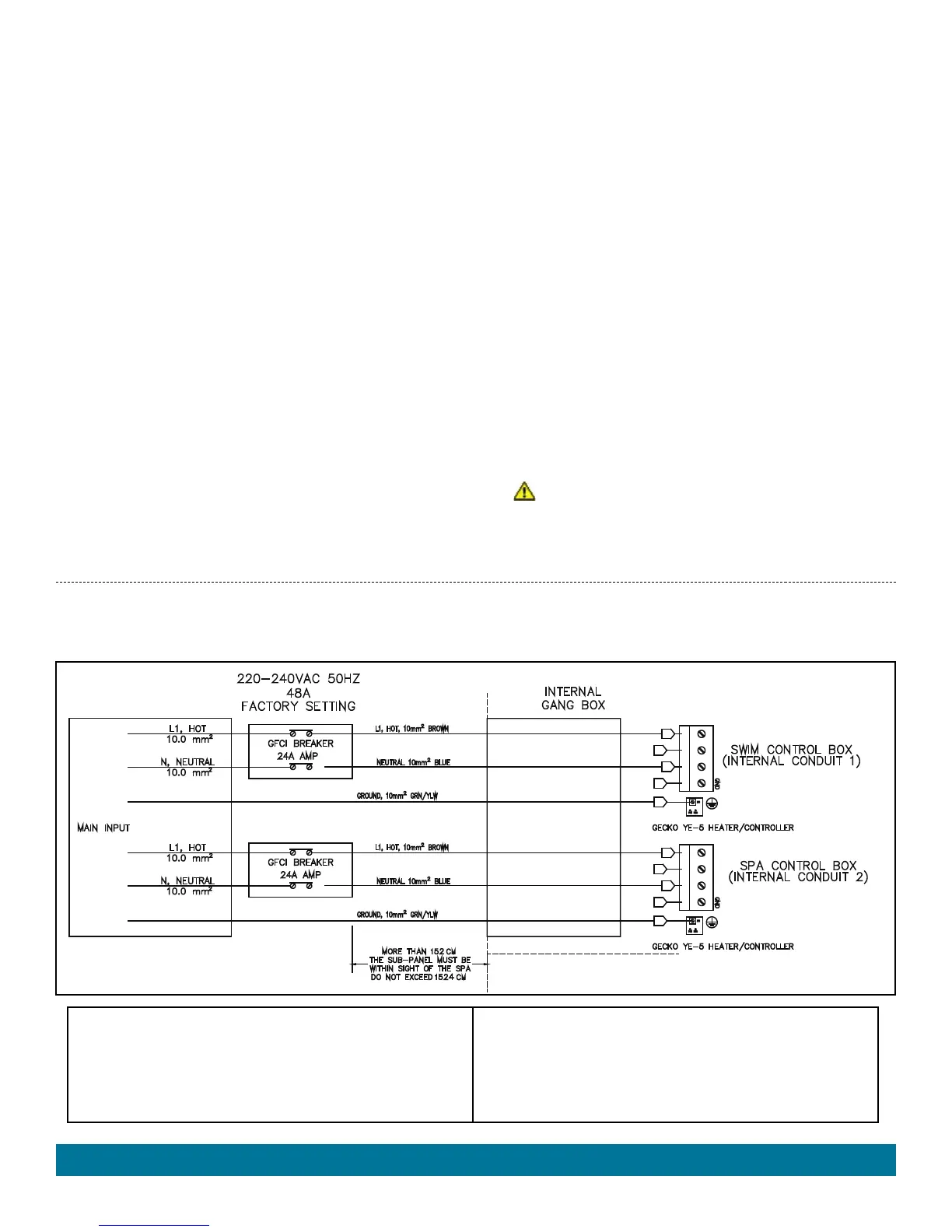

The diagram below illustrates how to wire the
exercise system
model:
• The
exercise system
requires an electrical service using two 24 amp
GFCI/RCD breakers.
• Disconnect switches with at least 3 mm separation between contacts
must be used for all electrical circuits to the
exercise system
.
• Mount the subpanel in the vicinity of the
exercise system
, but not closer
than 1.5 m (5 feet)
away.
Your
exercise system
, must be supplied by
a ground fault circuit interrupter - residual current device (RCD) - with a
tripping rating not exceeding 30 mA in an electrical subpanel.
• Open
exercise system
by removing the 4 screws holding the
vertical T-spacer to the left of the equipment compartment (see
Door Panel Removal and Replace Instruction on the following
page).
• Insert power wires into
exercise system
from either side towards
the bottom, you will find a plastic cap attached to wall.
• Once your
exercise system
has been filled with water, turn it on
and test all of the circuit breakers.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each GFCI breaker - residual current
device (RCD), and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the
exercise system
’s power indicator may continue to
blink – try again.
If any of the GFCI/RCD breakers fails to operate in this manner,
your
exercise system
may have an electrical malfunction, and you
may be at risk of electrical shock. Turn off all circuits and do not use
the
exercise system
until the problem has been corrected by an
authorized service agent.
WARNING: Removing, or bypassing any GFCI/RCD breaker will
result in an unsafe
exercise system
and will void the warranty.
IMPORTANT: If you ever need to move or relocate your SWIMCROSS exercise system, it is essential that you understand and apply these
installation requirements. Your SWIMCROSS exercise system has been carefully engineered to provide maximum safety against electric shock.
Remember, connecting the exercise system to an improperly wired circuit will negate many of its safety features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE EXERCISE SYSTEMS ARE INTENDED FOR USE WITH
GFCI SUBPANEL PROVIDED.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
Electrical Requirements
