Page 8
Electrical Requirements
3 PHASE (MODEL) WIRING
380-415V, 3N~, 24A, 50HZ VAC
PERMANENTLY CONNECTED
This system has both 3 phase and single phase equipment. 3 phase
(L-L) 380-415 VAC and single phase (L-N) 220-240 VAC required.
SWIMCROSS
exercise system
s must be wired in accordance with all
applicable local electrical codes. All electrical work should be done by an
experienced, licensed electrician. We recommend the use of appropriate
electrical conduit, fittings, and wire for all circuits.

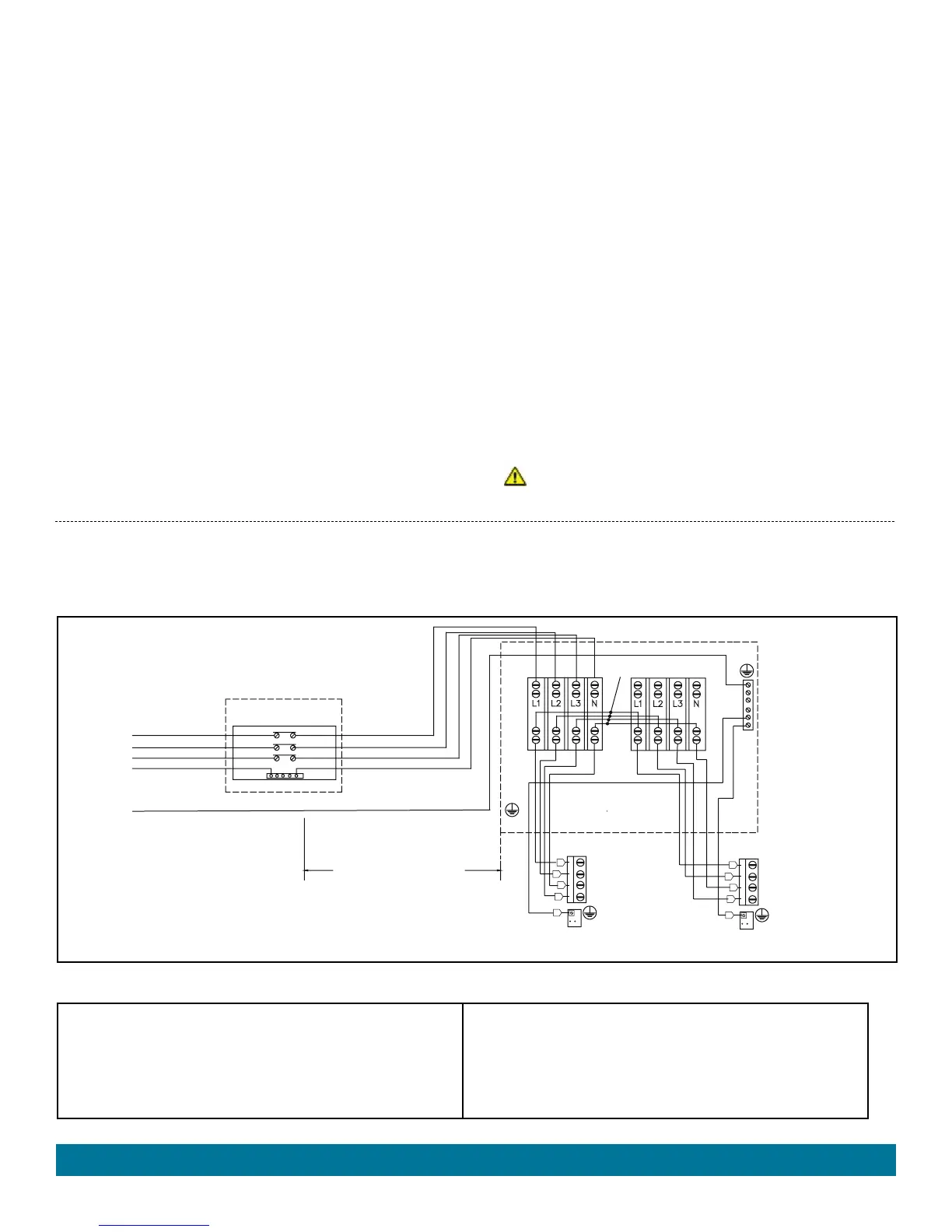

The diagram below illustrates how to wire the
exercise system
model:
• The
exercise system
requires an electrical service using a 24 amp
3 phase RCD breaker and an ENDLESS POOLS Junction Box.
• Disconnect switches with at least 3 mm separation between
contacts must be used for all electrical circuits to the
fitness
system
.
• Mount the subpanel in the vicinity of the
fitness system
, but not
closer than 1.5 m (5 feet)
away.
Your
fitness system
, must be
supplied by a ground fault circuit interrupter - residual current device
(RCD) - with a tripping rating not exceeding 30 mA in an electrical
subpanel.
• Open the
exercise system
by removing the 4 screws holding the
vertical T-spacer located in the center of the equipment compartment
(back side of
fitness system
). Slide panel towards center, raise
panel, pull bottom out, lower, disconnect light wires on both side and
remove, repeat for other panel.
• Insert power wires into
fitness system
from either side towards the
bottom, you will find a plastic cap attached to wall.
• Once your
fitness system
has been filled with water, turn it on and
test all of the circuit breakers.
• Verify Phase rotation is correct for input.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each GFCI breaker - residual current
device (RCD), and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the
fitness system
’s power indicator may continue to
blink – try again.
If the GFCI/RCD breaker fails to operate in this manner, your
fitness
system
may have an electrical malfunction, and you may be at risk of
electrical shock. Turn off all circuits and do not use the
fitness system
until the problem has been corrected by an authorized service agent.
WARNING: Removing, or bypassing any GFCI/RCD breaker will
result in an unsafe
fitness system
and will void the warranty.
CAUTIONS
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE FITNESS SYSTEMS ARE INTENDED FOR USE WITH GFCI
SUBPANEL PROVIDED.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS exercise system, it is essential that you understand and apply these
installation requirements. Your SWIMCROSS exercise system has been carefully engineered to provide maximum safety against electric shock.
Remember, connecting the fitness system to an improperly wired circuit will negate many of its safety features.
NOTE: Long wiring runs may require larger-gauge wire.
FACTORY INSTALLED JUMPERS
(DO NOT REMOVE)
CIRCUIT 1
CIRCUIT 2
GND
MORE THAN 152 cm
THE SUBPANEL MUST BE WITHIN
SIGHT OF THE FITNESS SYSTEM
DO NOT EXCEED 1524 cm
JUNCTION BOX
GFCI BREAKER
24A AMP
380-415V 3N~, 24A, 50Hz
3 PHASE
24A/PHASE 50Hz
INPUT 1
GROUND 16.0 mm
L1, HOT, 6.0 mm
L2, HOT, 6.0 mm
L3, HOT, 6.0 mm
N, NEUTRAL, 6.0 mm
L1, HOT, 6.0 mm
L2, HOT, 6.0 mm
L3, HOT, 6.0 mm
N, NEUTRAL, 6.0 mm
P9
GND
P81P82
L1
L2
L3
N
G
GECKO YE-5 HEATER/CONTROLLER
SPA CONTROL BOX
(INTERNAL CONDUIT 1)
P9
GND
P81P82
L1
L2
L3
N
G
GECKO YE-5 HEATER/CONTROLLER
SPA CONTROL BOX
(INTERNAL CONDUIT 2)
To Next Page
