Installation CPY7B
8 Endress+Hauser
4.2.2 Installation on an assembly
2
4
5
6
1
10
9
8
CPY7B-B1/C1
7
3
2
CPY7B-A1
A0005480

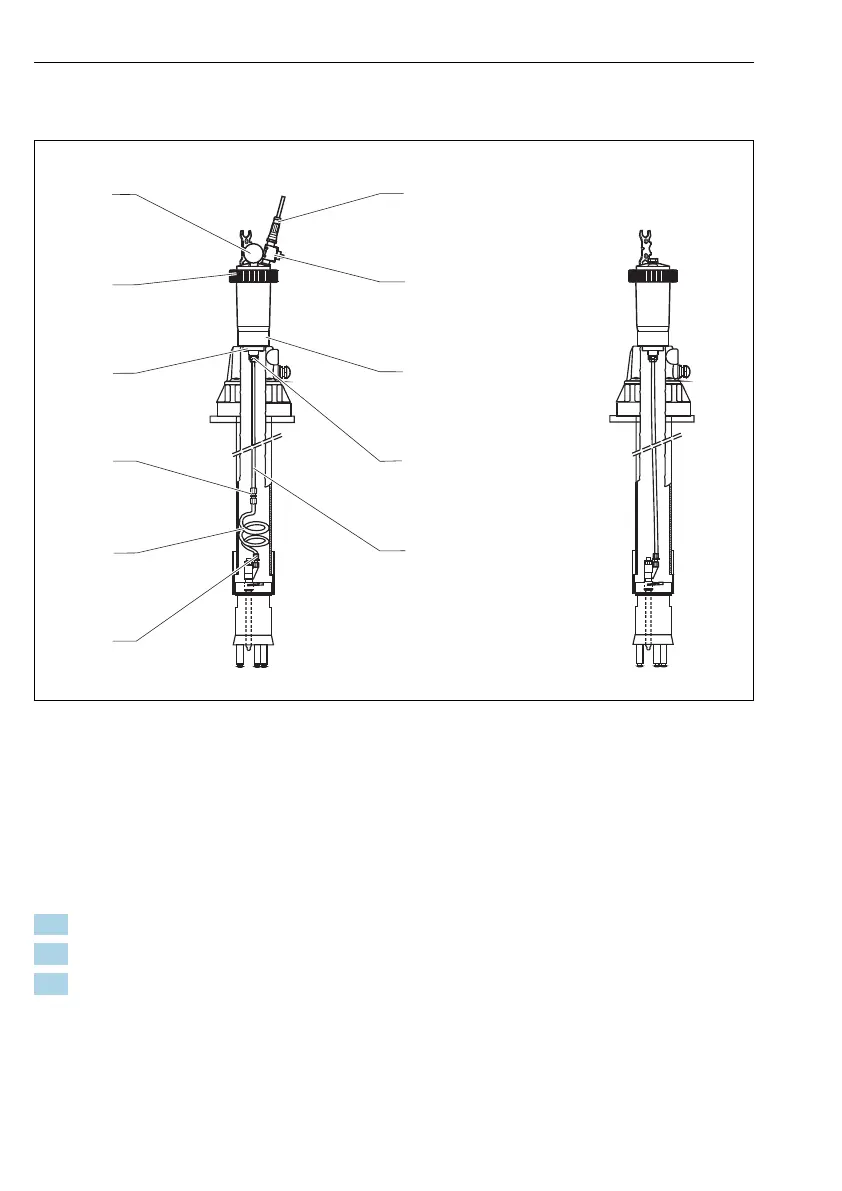

 2 Installation on the CPA111 assembly head
1 Pressure gauge (accessory) 6 Hose union with check valve
2 Spacer tube 7 Manually operated valve
3 Lock nut 8 Thread adapter nut
4 Hose connector 9 Hose connection
5 Spiral hose 10 Pressure hose
4.3 Post-installation check
1. After mounting, check all the connections to ensure they are secure and leak-tight.
2. Ensure that the hoses cannot be removed without force.
3. Check the hoses for damage.
