IECEx BVS 12.0080 X / XA00617F-A Gammapilot
8 Endress+Hauser
Sensor

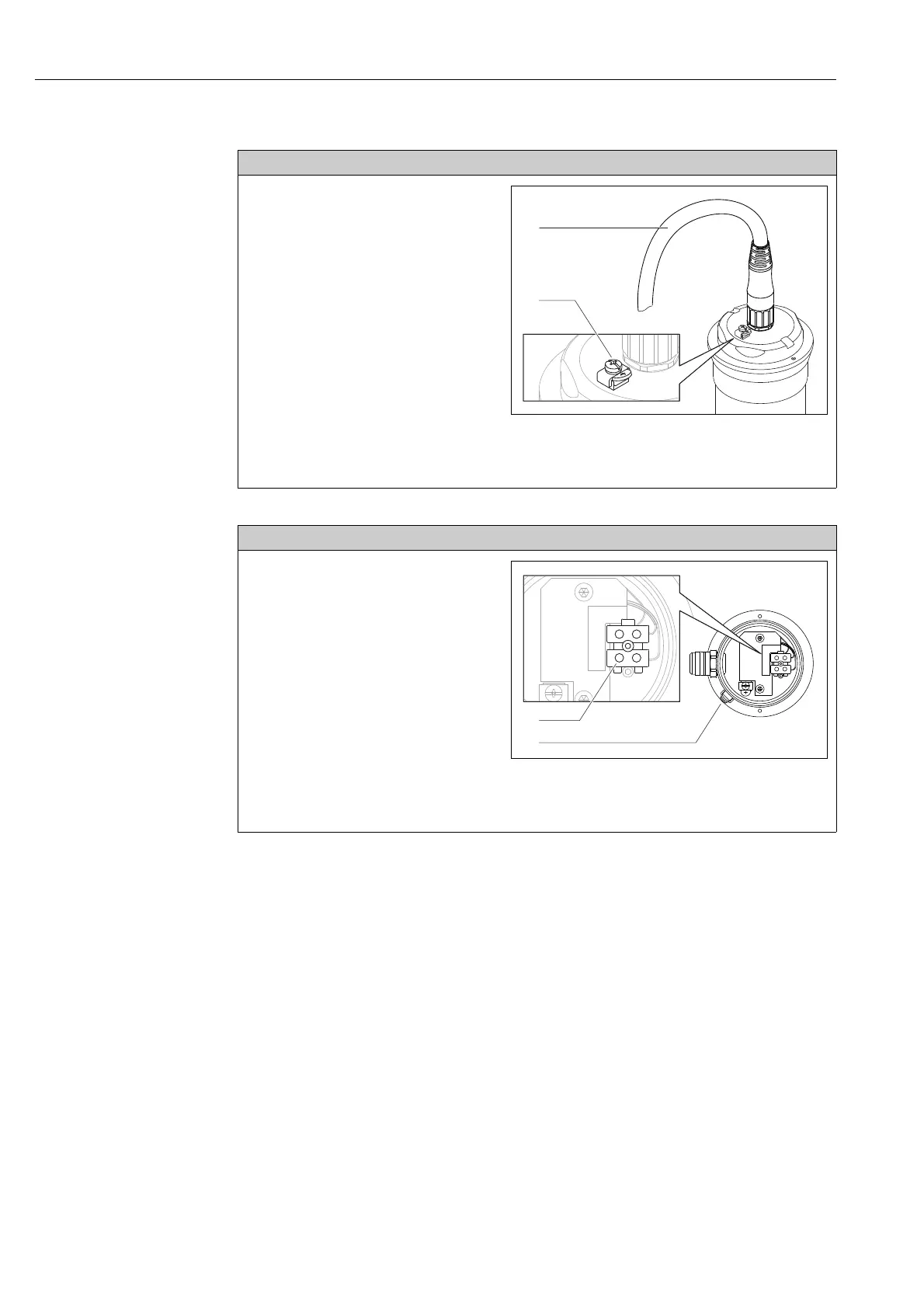

Sensor with plug connector
Ui = 9.77 V
Ii = 26.7 mA
Pi = 78.5 mW
Only for connection to Gammapilot FTG20 with
electronic insert FEG24 or FEG25
FTG20_04
å 4
1 Supplied cable with coded plug connectors
2 Potential equalization
Sensor with connection compartment
Ui = 9.77 V
Ii = 26.7 mA
Pi = 78.5 mW
Only for connection to Gammapilot FTG20 with
electronic insert FEG24 or FEG25
FTG20_05
å 5
1Terminal
2 Potential equalization
1
2
+–
(RD) (BK)
+–
(RD) (BK)
2
1
+–
(BU) (BN)
